Features
|

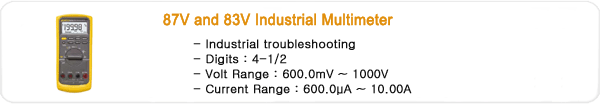

87V
|
83V
|
|
True-rms ac voltage and current for accurate measurements on non linear signals
|
o
|
|
|
Selectable filter for accurate voltage and frequency measurements on motor drives
|
o
|
|
|
0.05% dc adduracy
|
o
|
|
|
4-1/2 digit mode for precise measurements
|
o
|
|
|
Built-in thermometer lets you carry one less tool
|
o
|
|
|
Large display digits and two level bright white backlight for increased visibility
|
o
|
o
|
|
10.000µF capacitance range for components and motor caps
|
o
|
o
|
|
Peak capture to record transients as fast as 250µs
|
o
|
o
|
|
Measure up to 10A, 20A for up to 30 seconds
|
o
|
o
|
|
Auto and manual ranging for maximum flexibility
|
o
|
o
|
|
Abakig bargraph
|
o
|
o
|
|
Frequency to 200kHz and % duty cycle
|
o
|
o
|
| Min/Max and average recording to capture variations automatically
|
o
|
o
|
| Relative mode to remove test lead resistance from low ohms measurements
|
o
|
o
|
| Access door for fast battery changes without breaking the calibration seal
|
o
|
o
|
|
사이버 견적 담기
|
|
|
|
Functions
|
Range and Resolution
|
Basic accuracy
|
|
87V
|
83V
|
|
DC volts
|
600.0mV, 6.000V, 60.00V, 600.0V, 1000V
|
0.05%
|
0.1%
|
|
AC volts
|
600.0mV, 6.000V, 60.00V, 600.0V, 1000V
|
0.7%(true-rms)
|
0.5%
|
|
DC current
|
600.0µA, 6000µA, 60.00µA, 600.0mA, 6.000A, 10.00A
|
0.2%
|
0.4%
|
|
AC current
|
600.0µA, 6000µA, 60.00µA, 600.0mA, 6.000A, 10.00A
|
1.0% (true-rms)
|
1.2%
|
|
Temperature (excluding probe)
|
-200℃ to 1090℃ (-328℉ to 1994℉)
|
1.0%
|
|
|
80BK Temperature Probe
|
-40℃ to 260℃ (-40℉ to 500℉)
|
2.2℃ or 2%
|
|
|
Resistance
|
600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 50.00MΩ
|
0.2%
|
0.4%
|
|
Capacitance
|
10.00nF, 100.0nF, 1.000µF, 10.00µF, 100.0µF, 9.999µF
|
1.0%
|
1.0%
|
|
Frequency
|
199.99Hz, 1.9999kHz, 19.999kHz, 199.99kHz
|
0.005%
|
0.005%
|
|
|
|
Model
|
Description
|
사이버 견적 담기
|
|
C25
|
Large Soft Case for DMMs
|
|
|
C100
|
Universal Carrying Case
|
|
|
i400
|
AC Current Clamp
|
|
|
i410
|
400A AC/DC Current Clamp
|
|
|
80K-40
|
High Voltage Probe
|
|
|
80K-6
|
High Voltage Probe
|
|
|
80AK-A
|
Thermocouple Adapter
|
|
|
80PK-26
|
Tapered Temperature Probe
|
|
|
80PK-11
|
Thermocouple Temperature Probe
|
|
|
80PK-8
|
Pipe Clamp Temperature Probe (Type K)
|
|
|
| |
|
|
|
