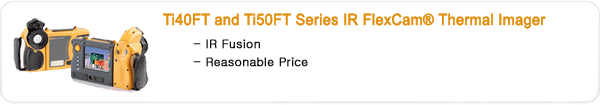

home > Fluke > IR FlexCam® Thermal Imager





Functions

Ti40FT

Ti45FT

Ti50FT

Ti55FT

Field of view(FOV)

23° horizontal x 17° vertical

Spatial resolution (FOV)

2.60 mrad

1.30 mrad

Min focus distance

0.15m

Thermal sensitivity (NETD) at 30℃

≤0.09℃

≤0.08℃

≤0.07℃

≤0.05℃

Detector data acquisition/image frequency

30Hz/30Hz

60Hz/60Hz

Detector size

160 x 120

320 x 240

Calibrated temperature range

-20℃ to 350℃

-20℃ to 600℃

-20℃ to 350℃

-20℃ to 600℃

1200℃ High temperature option



o





Accuracy

±2℃ or 2% (whichever is greater)

Digital display

5" lager high-resolution backlight LCD

Video output

RS170 EIA/NTSC or CCIR/PAL composite video

Palettes

Grayscle, grayscale inverted, blue red, high contrast, hot metal, ironbow, amber, amber inverted

Storage medium

Compact flash card(512Mb) stores over 1000 IF images

File formats supported

14bit measurement data included. Images : bmp, gif, jpg, png, tiff;
Data formats : comma separated (csv), tab separated (txt)

Interface

Compact flash card reader included

Included software

SmartView : Full analysis and reporting software


Features

Ti40FT

Ti45FT

Ti50FT

Ti55FT

180° articulating flexible lens to view images in every situation

o

o

o

o

Choice of 3 interchangeable lenses to cover every application

o

o

o

o

Lage 5inch high contrast color LCD for a clear picture independent of lighting conditions

o

o

o

o

Fully radiometric for derailed temperature analysis and tracking

o

o

o

o

SmartFocus for best image quality and accurate temperature measurements

o

o

o

o

Windows CE based menu structure for ease of use

o

o

o

o

Personalized instrument set-up for multiple use

o

o

o

o

CompactFlash memory cards to store over 1000 IR images plus fully radiometric temperature data

o

o

o

o

SmartView reporting and analysis software included

o

o

o

o

AutoCapture for making intermitternt problems visible



o



o

On-board analysis functions



o



o

User defined text annotations for simplified reporting



o



o


Model

Description

Lens

10.5mm, 20mm, and 54mm lenses are available within the Ti4X and Ti5X series. Use the Configurator to view the possible combinations.

High temperature

Some models in the Ti4X series can include the high temperature option allowing readings up to 1200 °C (2192 °F).
