home > 판매리스트 > Agilent > Oscilloscope

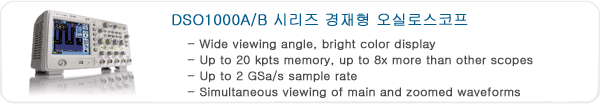

제품 대역폭 Sample Rate Channels

Max. Memory Depth
DSO1152B 150 MHz 1 GSa/s 2 16 kpts
DSO1102B 100 MHz 1 GSa/s 2 16 kpts
DSO1072B 70 MHz 1 GSa/s 2 16 kpts
DSO1052B 50 MHz 1 GSa/s 2 16 kpts
DSO1002A 60 MHz 2 GSa/s 2 20 kpts
DSO1004A 60 MHz 2 GSa/s 4 20 kpts
DSO1012A 100 MHz 2 GSa/s 2 20 kpts
DSO1014A 100 MHz 2 GSa/s 4 20 kpts
DSO1022A 200 MHz 2 GSa/s 2 20 kpts
DSO1024A 200 MHz 2 GSa/s 4 20 kpts



Accessories included
  • Documentation CD
  • Localized front panel overlay (if language option other than English is chosen)
  • Power cord
  • 10:1 passive probe for each input channel (2 or 4)
  • Education student lab guide and professor slide set downloadable free

Optional Accessories
제품 Description

N2738A

Soft carrying case for 1000A/B Series

N2739A

Rackmount kit for 1000A Series (A models only)

Recommended Probes
제품 Description

N2862B

150 MHz 10:1 passive probe (standard with 50, 60, 70, 100 MHz models)

N2863B

300 MHz 10:1 passive probe (standard with 150, 200 MHz models)

10070D

20 MHz 1:1 passive probe

10076B

250 MHz, 100:1, 4 kV passive probe

N2771B

50 MHz, 1000:1 30 kV passive probe

N2791A

25 MHz, 700V differential probe

N2891A

70 MHz, 7 kV differential probe

1146A

100 kHz, 100A AC/DC current probe (requires 9V battery)

Software and Drivers
