home > Fluke > Hand-held Multimeter

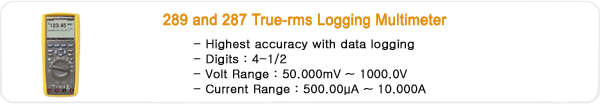

Model

사이버 견적 담기

289

289

287

287


Features

Multiple on screen displays

Yes

True-rms ac bandwidth

100kHz

dBV/dBm

Yes

DC mV resolution

1µV

Megohm range

up to 500MΩ

Conductance

50.00nS

Continuity

Yes

Elapse time clock/time of day clock

Yes

Min-Max-Avg/duty cycle/pulse width

Yes

Isolated optical DMM interface with USB PC connection

Yes

Auto/touch hold

Yes

Over 200 hours logging capacity with new sleep function

Yes


Functions

Range and Resolution

Basic Accuracy

DC volts
AC volts

50.000mV, 500.00mV, 5.0000V, 50.000V,
500.00V, 1000.0V

0.025%
0.4% (true-rms)

DC current
AC current

500.00µA, 5000.0µA, 50.000mA, 400.00mA,
5.0000A, 10.000A

0.15%
0.7% (true-rms)

Temperature (excluding probe)

-200.0℃ to 1350.0℃ (-328.0℉ to 2462.0℉)

1.0%

Resistance

50.000Ω, 500.00Ω, 5.0000kΩ, 50.000kΩ, 5.0000MΩ, 50.00MΩ, 500.0MΩ

0.05%

Capacitance

1.000nF, 10.00nF, 100.0nF, 1.000µF, 10.00µF, 1000µF, 10.00mF, 100mF

1.0%

Frequency

99.999Hz, 999.99Hz, 9.9999kHz, 99.999kHz, 999.99kHz

0.005%

Model

Description

사이버 견적 담기

C280

C280 Soft Case



C116

Soft Carring Case



i410

400A AC/DC Current Clamp

i410

80K-15

High Voltage Probe



80K-40

High Voltage Probe

80K-40

80K-6

High Voltage Probe



80AK-A

Thermocouple Adapter

80AK-A

80BK-A

Integrated DMM Temperature Probe

80BK-A

80PK-1

High Voltage Probe

80PK-1

IR189USB

USB Cable adapter



FVF-SC2

FlukeView Forms Software with cable

FVF-SC2
