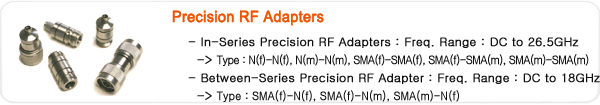

In-Series Precision RF Adapters
|
|
Model Number
|
Connectors
|
Frequency Range
DC - (GHz)
|
VSWR (max)
|
Insertion Loss (dB, max)
|
|
WA1513-33
|
N (f) - N (f)
|
18
|
1.15
|
0.25
|
|
WA1513-44
|
N (m) - N (m)
|
18
|
1.15
|
0.25
|
|
WA1587-11
|
SMA (f) - SMA (f)
|
26.5
|
1.2
|
0.5
|
|
WA1587-12
|
SMA (f) - SMA (m)
|
26.5
|
1.2
|
0.5
|
|
WA1587-22
|
SMA (m) - SMA (m)
|
26.5
|
1.2
|
0.5
|
* 모델을 클릭하시면 상세한 제품사양을 보실 수 있습니다.
|
Between-Series Precision RF Adapters
|
|
Model Number
|
Connectors
|
Frequency Range
DC - (GHz)
|
VSWR (max)
|
Insertion Loss (dB, max)
|
|
WA1548-13
|
SMA (f) - N (f)
|
18
|
1.10
|
0.43
|
|
WA1548-14
|
SMA (f) - N (m)
|
18
|
1.10
|
0.43
|
|
WA1548-23
|
SMA (m) - N (f)
|
18
|
1.10
|
0.43
|
|
WA1548-24
|
SMA (m) - N (m)
|
18
|
1.10
|
0.43
|
|
WA7002-13
|
SMA (f) - N (f)
|
18
|
1.12
|
0.5
|
|
WA7002-14
|
SMA (f) - N (m)
|
18
|
1.12
|
0.5
|
|
WA7002-23
|
SMA (m) - N (f)
|
18
|
1.12
|
0.5
|
|
WA7002-24
|
SMA (m) - N (m)
|
18
|
1.12
|
0.5
|
|
|
|
|
|
