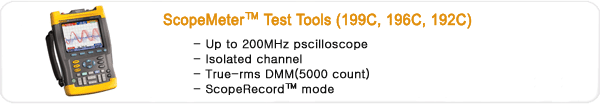

home > Fluke > ScopeMeter®







Specifications

Bandwidth

Fluke 199C : 200MHz
Fluke 196C : 100MHz
Fluke 192C : 60MHz

Real-time Sample Rate

Fluke 199C : 2.5Gs/s
Fluke 196C : 1GS/s
Fluke 192C : 500MS/s

Input and digitizers

2plus external / DMM input

Independently floation isolated inputs

Up to 1000V between inputs, references and ground

Timebase range

5ns - 2min/div
10ns - 2min/div (192B)

Input sensitivity

190C Models : 2mV-100V/div

Trigger types

190C Models : Connect-and-View™, Free Run, Single Shot, Edge, Delay, Video, Selectable pulse width and External Dual slope trigger and Event trigger(n-cycle)

Glitch capture

50ns (5us/dib - 1min/div)

Scope measurement

Cursor : 7
Automatic : 30

Max. record length

ScopeRecord mode : 27,500 pts per input
Scope mode : 3,000 pts per input

Memory

Screens + Setups : 15
Replay + setups : 2

Display

190C Models : 144mm full color LCD with fast update rate

Persistence

190C Modes : Digital persistence giving analog oscilloscope-like waveform decay

Waveform Compare

190C Modes : Waveform reference with automatic Pass/Fail testing

Environmental Specifications

Operating Temperature

0℃ to 50℃

Storage Temperature

-20℃ to +60℃

Operation Altitude

3,000m

Safety Specifications

Electrical Safety

1,000V CAT II/600V CAT III (EN61010-1)



199C

196C

192C

사이버 견적 담기

199C

196C

192C


Model

Description

SCC190

Software, cable and carrying case package

C195

Universal soft carrying case

PAC91

Optical to parallel printer adapter cable
