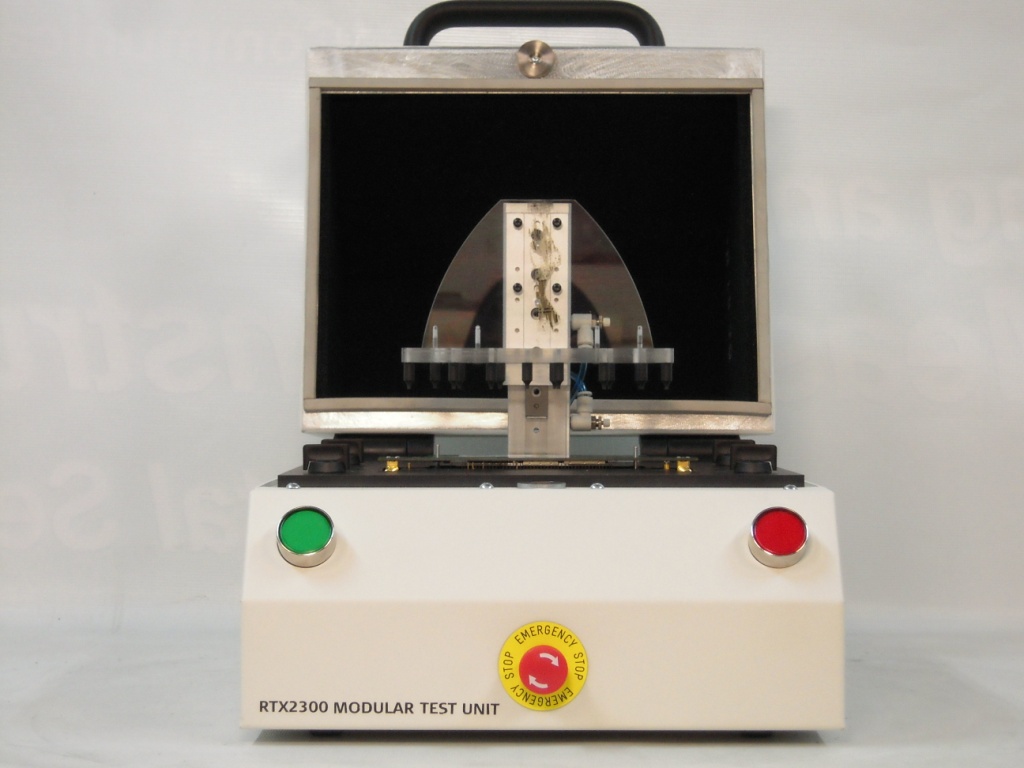

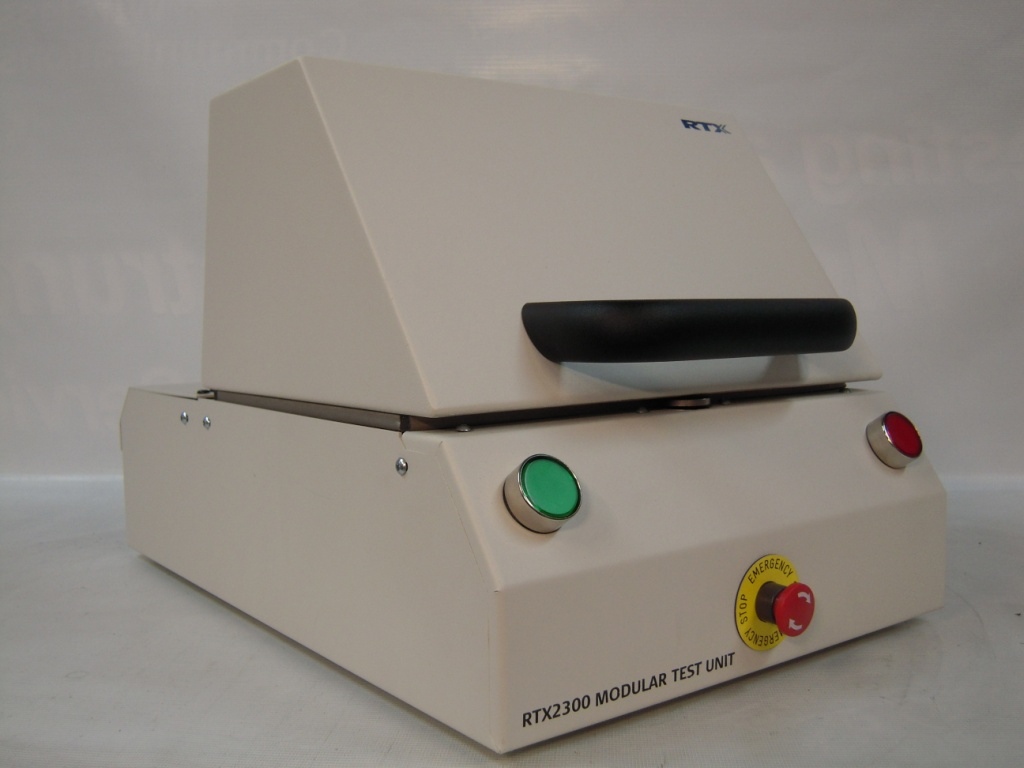

RTX 2300 Modular Test Unit

The RTX2300 Modular Test Unit is designed for functional test of wireless products (Bluetooth, GSM, Wi-Fi, etc.) and is highly integrated and designed for a broad variety of applications. The tester can basically be setup as a shielded environment for the wireless Device Under Test (DUT) with customized fixture and with the general purpose instrumentation integrated into the modular test unit. In combination with an external RF tester like RTX2011 or Agilent 8960, the setup is completed to do PCBA- or final-test of wireless device. The unit is easily customized due to the customization area which allows the customer to add e.g. additional measurement channels, propriety interface, etc.

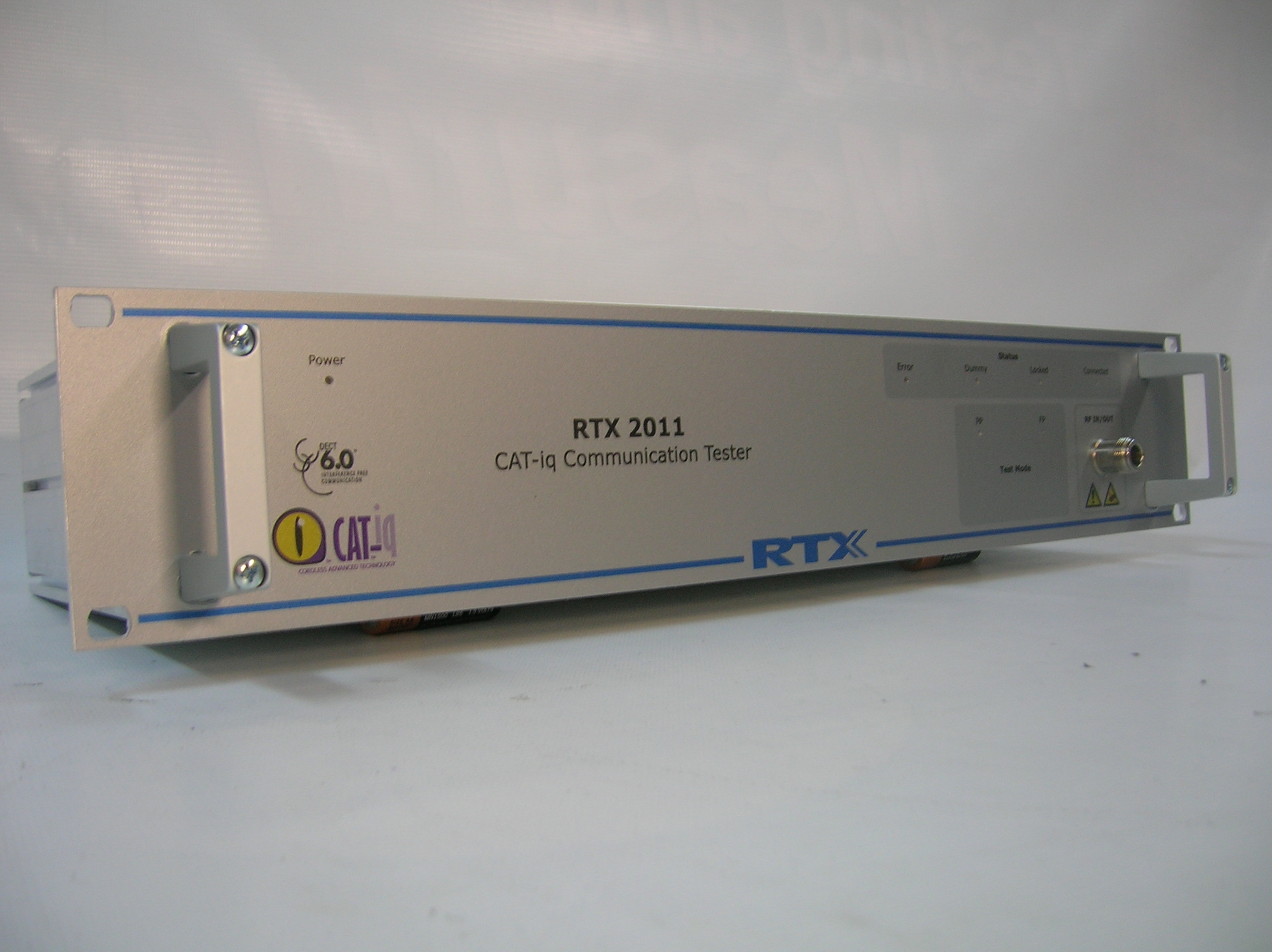

RTX 2011 RF Test Platform for DECT/DECT 6.0/CAT-iq

RTX Technology launched a new RF Test Platform for DECT/DECT 6.0/CAT-iq (RTX 2011). In many cases, the Rohde & Schwarz (R&S) CMD60 and CTS60 are used in the RF test process for DECT products, but both of these platforms have now been discontinued, thus creating a gap in the market. Due to RTX-T’s extensive expertise within RF test equipment – gained through the development and installation of more than 600 test racks at factories all over the globe (primarily in China) – RTX-T chose to exploit this market opportunity by launching the RTX 2011. The RTX 2011 is a flexible solution for easy RF test-ing of a wide range of DECT, DECT 6.0 and CAT-iq devices. Furthermore, it is the only tester on the market that natively supports RF tests of the new long-slot format in CAT-iq. In essence, the RTX 2011 is positioned as a suitable replacement for the CTS60 Digital Radio Tester for DECT from R&S.

The RTX 2011 RF Test Platform for DECT/DECT 6.0/CAT-iq# supports a range of different RF tests and can be used for high throughout manufacturing applications, and also serve as a development or service tool.
The tester can basically be setup as either a handset or a base station, with added test capabilities. Used in fixed part testing, the RTX 2011 acts as a handset and the Device Uner Test (DUT) acts as a base station and vice versa.



Production Test Equipment

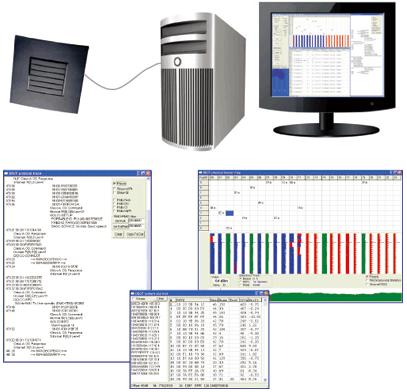

RTX-2030 DECT AirSpy

The RTX2030 DECT Airspy tool is generic communication monitoring and analyzer for DECT / DECT6.0 / CAT-iq. It consists of a dedicated DECT RF Capture Unit and Windows application SW and can assist developers/installers in performing:

Protocol analysis
Deployment analysis in both single and multi-cell environments
Traffic analysis
Slot and frame timing analysis

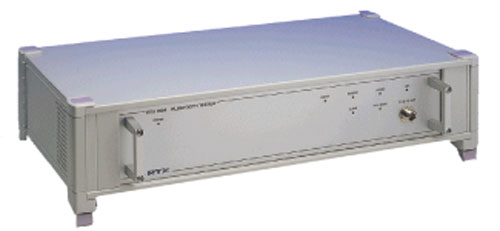

RTX – 2201 2.4GHz Test Equipment

RTX – 2501 5.8GHz Test Equipment

RTX 2.4 / 5.8 GHz Communication Tester supports a range of different RF tests and can be used for high throughput manufacturing applications, and also as a development or service tool. The tester can basically be setup as either a handset or a base station, with added test capabilities.



Production Solutions

RTX has many years of experience in developing and manufacturing production test equipment for wireless products. They can offer a wide range of different solutions to ensure a fast and cost efficient product launch

DECT EU/US   Product types
2.4GHz / 5.8GHz ISM Cordless phones
Bluetooth Mobile phones
CDMA Car alarms
TD-SCDMA Headsets
GSM/GPRS Music distribution systems
GPS Telephone line extender
NMT 450 Repeaters
    Gaming console
    Home metering devices (M2M)
    Medical products
