* 모델을 클릭하시면 상세한 제품사양을 보실 수 있습니다.
|

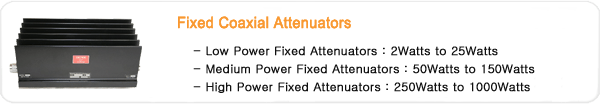

Low Power Fixed Attenuators : 2 Watts to 25 Watts
|
|
Model Number
|
Frequency Range
DC - (GHz)
|
Average Power (W)
|
Peak Power (kW)
|
Standard* Attenuation Values (dB)
|
Connectors and Mounting Notes
|
|
WA50
|
3
|
2
|
0.5
|
1 to 50
|
N
|
|
WA1W/6
|
6
|
2
|
0.5
|
1 to 60
|
N
|
|
WA18
|
12.4
|
2
|
0.5
|
1 to 30
|
BNC
|
|
WA1W
|
12.4
|
2
|
0.5
|
1 to 60
|
N
|
|
WA3
|
12.4
|
2
|
0.5
|
1 to 60
|
SMA
|
|
WA3H
|
12.4
|
2
|
0.25
|
1 to 60
|
SMA
|
|
WA3M
|
12.4
|
2
|
0.5
|
1 to 60
|
SMA
|
|
WA12
|
18
|
2
|
0.25
|
1 to 12
|
SMA, Flange Mount
|
|
WA2W
|
18
|
2
|
0.5
|
1 to 60
|
N
|
|
WA32
|
18
|
2
|
0.5
|
3 to 40
|
SMA
|
|
WA4
|
18
|
2
|
0.5
|
1 to 60
|
SMA
|
|
WA4H
|
18
|
2
|
0.25
|
1 to 60
|
SMA
|
|
WA4M
|
18
|
2
|
0.5
|
1 to 60
|
SMA
|
|
WA9
|
26.5
|
2
|
0.25
|
1 to 40
|
SMA
|
|
WA54
|
40
|
2
|
0.25
|
3 to 30
|
2.92 mm
|
|
WA19/6
|
6
|
5
|
1
|
1 to 30
|
BNC
|
|
WA1
|
12.4
|
5
|
1
|
1 to 60
|
N
|
|
WA19
|
12.4
|
5
|
1
|
1 to 30
|
BNC
|
|
WA17
|
18
|
5
|
1
|
1 to 60
|
7 mm
|
|
WA2
|
18
|
5
|
1
|
1 to 60
|
N
|
|
WA44
|
18
|
5
|
1
|
1 to 60
|
Precision N
|
|
WA7
|
18
|
5
|
1
|
1 to 60
|
SMA
|
|
WA75
|
40
|
5
|
0.25
|
3 to 30
|
2.92 mm
|
|
WA37
|
8.5
|
10
|
1
|
1 to 60
|
N
|
|
WA41
|
18
|
10
|
1
|
1 to 60
|
SMA
|
|
WA8
|
18
|
10
|
1
|
1 to 60
|
N
|
|
WA34L
|
4
|
20
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA33L
|
8.5
|
20
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA21
|
4
|
25
|
5
|
3 to 40
|
N, SMA, Low-Profile, Mountable
|
|
WA34
|
4
|
25
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA34B
|
4
|
25
|
5
|
3 to 40
|
N, SMA, Square Body Mount
|
|
WA22
|
8.5
|
25
|
5
|
3 to 40
|
N, SMA, Low-Profile, Mountable
|
|
WA33
|
8.5
|
25
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA33B
|
8.5
|
25
|
5
|
3 to 40
|
N, SMA, Square Body Mount
|
|
WA46
|
18
|
25
|
1
|
3 to 40
|
N, SMA, TNC
|
* 모델을 클릭하시면 상세한 제품사양을 보실 수 있습니다.
|
Medium Power Fixed Attenuators: 50 Watts to 150 Watts
|
|
Model Number
|
Frequency Range
DC - (GHz)
|
Average Power (W)
|
Peak Power (kW)
|
Standard* Attenuation Values (dB)
|
Connectors and Mounting Notes
|
|
WA23
|
4
|
50
|
5
|
3 to 40
|
N, SMA
|
|
WA23B
|
4
|
50
|
5
|
3 to 40
|
N, SMA, Square Body Mount
|
|
WA71
|
4
|
50
|
5
|
3 to 40
|
N, SMA, Low-Profile, Mountable
|
|
WA24
|
8.5
|
50
|
5
|
3 to 40
|
N, SMA
|
|
WA24B
|
8.5
|
50
|
5
|
3 to 40
|
N, SMA, Square Body Mount
|
|
WA72
|
8.5
|
50
|
5
|
3 to 40
|
N, SMA, Low-Profile, Mountable
|
|
WA47
|
18
|
50
|
1
|
6 to 40
|
N, SMA, TNC
|
|
WA90
|
18
|
50
|
1
|
3 to 40
|
N, SMA
|
|
WA29
|
8.5
|
75
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA475
|
18
|
75
|
1
|
6 to 40
|
N, SMA, TNC
|
|
WA59
|
2.5
|
100
|
10
|
10 to 40
|
N, SMA, 7/16 DIN
|
|
WA30
|
4
|
100
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA68
|
4
|
100
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA31
|
8.5
|
100
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA48
|
18
|
100
|
1
|
10 to 40
|
N, SMA, TNC
|
|
WA91
|
18
|
100
|
1
|
10 to 40
|
N, SMA, TNC
|
|
WA40
|
2.5
|
150
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA42
|
2.5
|
150
|
5
|
3 to 40
|
N, SMA, Low-Profile, Mountable
|
|
WA65
|
2.5
|
150
|
10
|
3 to 30
|
N, SMA, 7/16 DIN
|
|
WA39
|
4
|
150
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA61
|
4
|
150
|
5
|
3 to 40
|
N, SMA, Low-Profile, Mountable
|
|
WA57
|
5
|
150
|
10
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA49
|
8.5
|
150
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA62
|
8.5
|
150
|
5
|
3 to 40
|
N, SMA, Low-Profile Mountable
|
|
WA66
|
18
|
150
|
1
|
20 to 40
|
N
|
* 모델을 클릭하시면 상세한 제품사양을 보실 수 있습니다.
|
High Power Fixed Attenuators: 250 Watts to 1000 Watts
|
|
Model Number
|
Frequency Range
DC - (GHz)
|
Average Power (W)
|
Peak Power (kW)
|
Standard* Attenuation Values (dB)
|
Connectors and Mounting Notes
|
|
WA45
|
2.5
|
250
|
10
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA58
|
5
|
250
|
10
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA35
|
8.5
|
250
|
5
|
10 to 40
|
N, SMA, 7/16 DIN
|
|
WA38
|
5
|
300
|
5
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA36
|
8.5
|
300
|
5
|
10 to 40
|
N, SMA, 7/16 DIN
|
|
WA67
|
12.4
|
350
|
1
|
20 to 40
|
N
|
|
WA53
|
2.5
|
500
|
10
|
3 to 40
|
N, SMA, 7/16 DIN
|
|
WA60
|
5
|
500
|
10
|
10 to 40
|
N, SMA, 7/16 DIN
|
|
WA51
|
8.5
|
500
|
5
|
10 to 40
|
N, SMA, 7/16 DIN
|
|
WA70
|
3
|
1000
|
10
|
10 to 40
|
N, 7/16 DIN
|
|
|
|
|
