Switch Mainframes
Proven accuracy, performance, and quality

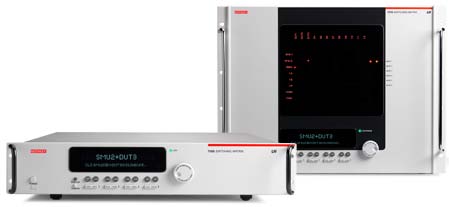

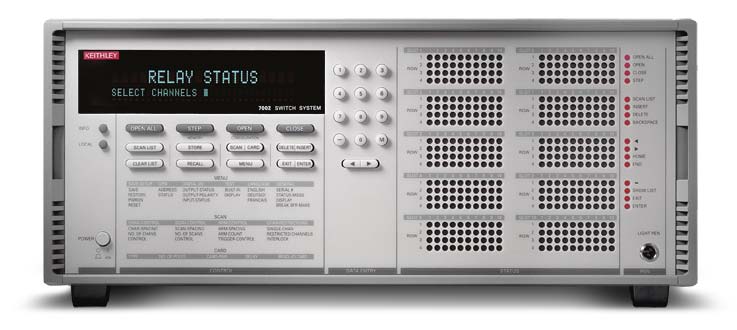

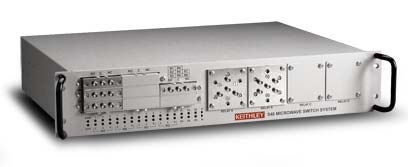

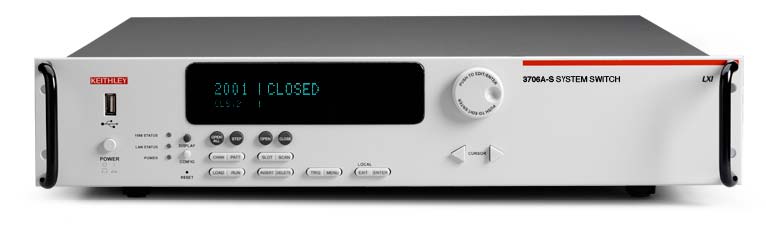

Feature 3706A-S 7001 7002 System 46 707B / 708B

SWitch features

Up to 576 channels and 10 card options, optional 7.5-digit DMM, designed for interoperability with other Keithley products

Up to 80 channels and more than 20 card options, designed for interoperability with other Keithley products

Up to 400 channels and more than 20 card options, designed for interoperability with other Keithley products

Built-in relay switching — up to 4 multi-pole relays and 8 SPDT relays in mainframe, up to 26.5 GHz frequencies

Measure down to 1pA (10fA with 7174A). For semiconductor device characterization. 8x12 extends to 8x72. Used with 4200-SCS, 2636B, S500, S530.

Unique optional card capabilities

High density switching, automatic CJC, long-life switching, FET switching

Hall effect, RF switching, scanner cards, high/low current and voltage switching

Hall effect, RF switching, scanner cards, high/low current and voltage switching

N/A

7072-HV provides 1kV and low current.

Interface

GPIB, LAN (LXI), USB-TMC, TSP-Link® Channel

GPIB, RS-232

GPIB, RS-232

GPIB

GPIB, LAN (LXI) ACS software 4200-SCS KTEI software
