Key specifications and ordering information
| Feature |

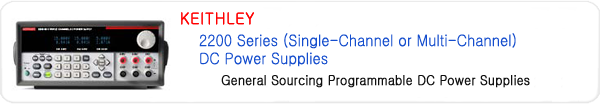

Model 2200
Single-Channel Power Supplies
|
Model 2220-30-1
Dual-Channel Power Supply
|
Model 2230-30-1
Triple-Channel Power Supply
|
| Model |
2200-72-1 |
2200-60-2 |
2200-32-3 |
2200-30-5 |
2200-20-5 |
2220-30-1 |
2230-30-1 |
|
Channel
|
Single Ouput
|
2
|
3
|
|
Max. output voltage
|
72V
|
60V
|
32V
|
30V
|
20V
|
Ch1 : 30V
Ch2 : 30V
|
Ch1, Ch2 : 30V
Ch3 : 6V
|
|
Max. output current
|
1.2A
|
2.5A
|
3A
|
5A
|
5A
|
Ch1 : 1.5A
Ch2 : 1.5A
|
Ch1, Ch2 : 1.5A
Ch3A : 5A
|
|
Power
|
86W
|
150
|
96W
|
150W
|
100W
|
45W/Ch; 90W total
|
Ch1, Ch2 : 45W
Ch3 : 30W, 120W total
|
|
Ripple and noise
|
<1mVRMS
<3mVp-p
|
<1mVRMS
<5mVp-p
|
<1mVRMS
<4mVp-p
|
<1mVRMS
<4mVp-p
|
<1mVRMS
<3mVp-p
|
<1mVRMS
<3mVp-p
|
|
Resolution
|
1mV, 0.1mA
|
1mV, 1mA
|
|
Voltage accuracy
|
0.03%
|
0.03%
|
|
Current accuracy
|
0.05%
|
0.1%
|
|
Interface
|
USB, GPIB
|
USB
|
|
Special features
|
Linear regulation, 40 user defined setup memories, adjustable over-voltage protection, list mode with 7 lists and up to 80 steps/list, remote sense, rear outputs, and trigger/status lines.
|
All channels are isolated from each other, each channel can be independently turned on and off, all channel outputs are displayed simultaneously, two 30V channels can track each other, two 30V channels can be connected either in series or in parallel to deliver up to 60V or 3A.
|
|
Standard Accessories
|
- User documentation
-
Rear Panel Mating Connector
|
| Other Accessories |
|
GPIB Interfaces,
Cables,
Rack Mount Kit
|
CS-1638-2
|
Rear Panel Mating Connector, Single Ch
|
|
CS-1655-15
|
Rear Panel Mating Connector, Multi-Ch
|
| USB-B-1
|
USB Cable
|
| 4299-7
|
Fixed Rack Mount Kit
|
|
7007-05
|
Shielded IEEE-488 Cable, 0.5m
|
| 7007-1
|
Shielded IEEE-488 Cable, 1m
|
|
7007-2
|
Shielded IEEE-488 Cable, 2m
|
|
7007-3
|
Shielded IEEE-488 Cable, 3m
|
| 7007-4
|
Shielded IEEE-488 Cable, 4m
|
|
KPCI-488LPA
|
IEEE-488 Interface/Controller
for the PCI Bus
|
|
KUSB-488B
|
IEEE-488 USB-to-GPIB Interface Adapter
|
|
|
|
|
