| Features |
Benefits |
|
6½-digit 0.012% accurate DMM plus precision wide range I/V source in tightly integrated ½ rack 2U unit
|
Perform stimulus vs. response testing of electronic materials, devices, circuits and modules including voltage-current curves and resistance vs. I or V on bench and in lab and ATE level production systems
|
|
Full family of voltage/current combinations from 1μV to 1100V and 10pA to 5A (10A pulse)
|
Coverage of most common electronic materials and device measurement and curve characterization applications interactively on the bench or programmatically within lab or production test systems
|
|
Remote sense on V-source and measure plus guarded ohms mode
|
Compensates for test lead and interconnect resistance as well as for buried node resistor network types and complex material measurements
|
|
Low noise source and measure capabilities plus variable aperture high resolution ADC
|
Provides stable voltage or current stimulus for detecting small changes in device under test conditions with ability to reject power line cycle and other background and circuit noise
|
|
Able to source and sink current with bipolar output voltage
|

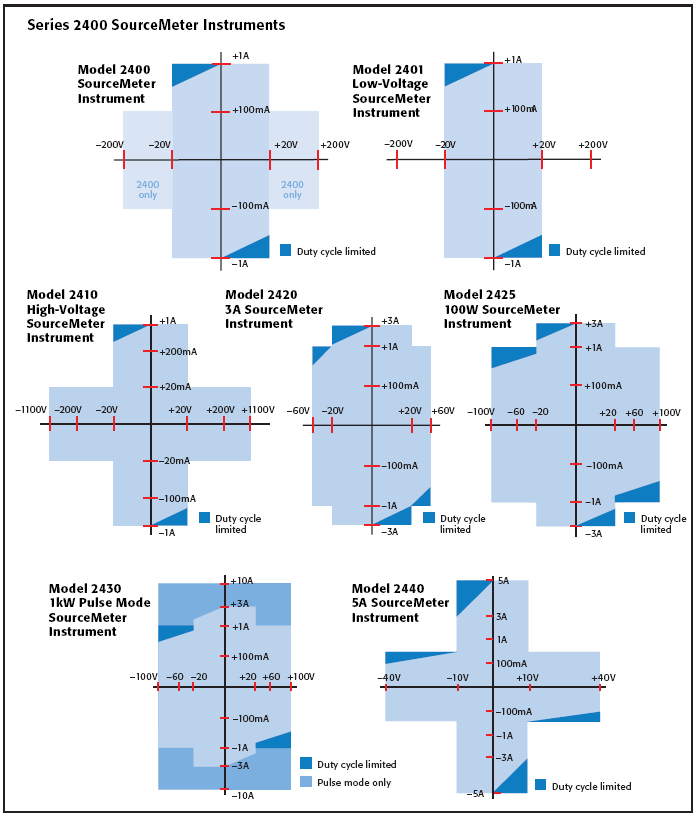

Characterize full operation of electronic loads and sources across full operating range including charge and discharge regions (4 quadrants)
|
|
0.1fA, 100nV resolution
|
Precisely measure leading-edge semiconductor and nanotech devices and delicate materials as graphene
|
|
Standard GPIB and RS-232 interfaces
|
Integration with most common test systems in lab and production applications
|
|
Built-In test sequencer that stores 100 machine state test steps
|
Source-Memory list mode allows the SMU to execute a test sequence from a single trigger event once a custom sequence is set up, freeing timing from reliance on external computers or other instruments for best throughput
|
|
LabTracer 2.0 I-V curve utility and IVI and LabVIEW drivers included
|
Supports PC-based operation beyond front panel for applications needing remote control and data sharing for source and measure test vectors; provides quick setup and test debug for simple to complex applications
|
Key specifications and ordering information
| Model |
Power |
Max. Voltage |
Max. Current
(DC / Pluse) |
Min. Current |
Interface |
Contact Check |
|
2401
|
20W
|
20V
|
1A
|
10pA
|
GPIB, RS-232, Digital I/O
|
No
|
|
2400
|
20W
|
200V
|
1A
|
10pA
|
GPIB, RS-232, Digital I/O
|
No
|
|
2400-C
|
20W
|
200V
|
1A
|
10pA
|
GPIB, RS-232, Digital I/O
|
Yes
|
|
2400-LV
|
20W
|
20V
|
1A
|
10pA
|
GPIB, RS-232, Digital I/O
|
No
|
|
2410
|
20W
|
1100V
|
1A
|
10pA
|
GPIB, RS-232, Digital I/O
|
No
|
|
2410-C
|
20W
|
1100V
|
1A
|
10pA
|
GPIB, RS-232, Digital I/O
|
Yes
|
|
2420
|
60W
|
60V
|
3A
|
100pA
|
GPIB, RS-232, Digital I/O
|
No
|
|
2420-C
|
60W
|
60V
|
3A
|
100pA
|
GPIB, RS-232, Digital I/O
|
Yes
|
|
2425
|
100W
|
100V
|
3A
|
100pA
|
GPIB, RS-232, Digital I/O
|
No
|
|
2425-C
|
100W
|
100V
|
3A
|
100pA
|
GPIB, RS-232, Digital I/O
|
Yes
|
|
2430
|
1000W
|
100V
|
3A/10A
|
100pA
|
GPIB, RS-232, Digital I/O
|
No
|
|
2430-C
|
1000W
|
100V
|
3A/10A
|
100pA
|
GPIB, RS-232, Digital I/O
|
Yes
|
|
2440
|
50W
|
40V
|
5A
|
100pA
|
GPIB, RS-232, Digital I/O
|
No
|
|
2440-C
|
50W
|
40V
|
5A
|
100pA
|
GPIB, RS-232, Digital I/O
|
Yes
|
| Standard Accessories |
- 8605 Test Leads
- LabVIEW Software Driver (downloadable)
- LabTracer Software (downloadable)
- Power cord
|
|
Other Accessories |
|
Test Leads and Probes
|
1754
|
2-Wire Universal 10-Piece Test Lead Kit
|
|
5804
|
Kelvin (4-Wire) Universal 10-Piece Test Lead Kit
|
|
5805
|
Kelvin (4-Wire) Spring-Loaded Probes
|
|
5808
|
Low Cost Single-pin Kelvin Probe Set
|
|
5809
|
Low Cost Kelvin Clip Lead Set
|
|
8607
|
2-Wire, 1000V Banana Cables, 1m (3.3 ft)
|
|
CA-18-1
|
Shielded Dual Banana Cable, 1.2m (4 ft)
|
|
Switching Hardware
|
7001
|
Two-Slot Switch System
|
|
7002
|
Ten-Slot Switch System
|
|
7019-C
|
6-Wire Ohms Switch Card
|
|
7053
|
High-Current Switch Card
|
|
Cables/Adapters
|
7007-1
|
Shielded GPIB Cable, 1m (3.3 ft)
|
|
7007-2
|
Shielded GPIB Cable, 2m (6.6 ft)
|
|
7009-5
|
RS-232 Cable
|
|
8602
|
Shorting Plug
|
|
Communication Interface
|
KPCI-488LPA
|
IEEE-488 Interface/Controller for the PCI Bus
|
|
KPCI-488B
|
IEEE-488 USB-to-GPIB Interface Adapter
|
|
Triggering And Control
|
2499-DIGIO
|
Digital I/O Expander Assembly (not for Model 2401)
|
|
8501-1
|
Trigger Link Cable, DIN-to-DIN, 1m (3.3 ft)
|
|
8501-2
|
Trigger Link Cable, DIN-to-DIN, 2m (6.6 ft)
|
|
8502
|
Trigger Link to BNC Breakout Box
|
|
8503
|
Trigger Link Cable, DIN-to-Dual BNC, 1m (3.3 ft)
|
|
8505
|
Male to 2-Female Y-DIN Cable for Trigger Link
|
|
Rack Mount Kits
|
4288-1
|
Single Fixed Rack Mount Kit
|
|
4288-2
|
Dual Fixed Rack Mount Kit
|
|
4288-4
|
Dual Fixed Rack Mount Kit
|
|
4288-5
|
Shelf Type Side by Side Rack Mounting Kit
|
|
4288-9
|
Dual Fixed Rack Mount Kit
|
| Software
|
LabTracer 2.0
|
Curve Tracing Software (downloadable)
|
|
|
|
|
|
|
|
