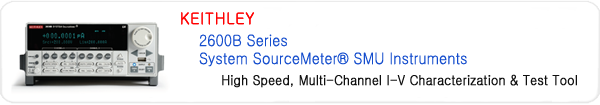

home > Keithley > 2600B Series SourceMeter







Model Features Benefits

2601B
(Single-Channel)
2602B / 2604B
(Dual-Channel)

Full 40V and 3A DC per channel; 10A pulse

Test a wide range of higher current devices, materials, components and subassemblies

100fA, 100nV resolution

Precise and stable sourcing and measurement of current and voltage

2611B
(Single-Channel)
2612B / 2614B
(Dual-Channel)

Full 200V and 1.5A DC per channel; 10A pulse

Test a wide range of higher voltage devices, materials, components and subassemblies

100fA, 100nV resolution

Precise and stable sourcing and measurement of current and voltage

2635B
(Single-Channel)
2636B / 2634B
(Dual-Channel)

Full 200V and 1.5A per channel; 10A pulse

Test a wide range of devices and materials

0.1fA, 100nV resolution

Precisely measure leading-edge semiconductor and nanotech devices and delicate materials as graphene

All Models

Scalable TSP-Link® architecture (not available on 2604B, 2614B & 2634B)

Enables true multi-channel parallel test; expand the test system without the cost of a mainframe

TSP® (embedded Test Script Process) architecture

Improves system-level speed to lower the cost of test

4-quadrant design

Sources and sinks both voltage and current to provide more complete and faster test solutions

Arbitrary waveform generation with 1% to 100% duty cycle

Fully customizable sourcing to meet specific device requirements and minimize self-heating effects

Variety of software solutions

Boosts productivity in R&D, QA, reliability, and production applications; get the test up and running quickly.



Key specifications and ordering information
Model Channels Max Voltage Max Current (DC / Pluse) Min Current A/D Converters TSP-Link® DIgital I/O

2601B

1

40V

3A/10A

100fA

Integrating

Yes

Yes

2602B

2

40V

3A/10A

100fA

Integrating

Yes

Yes

2604B

2

40V

3A/10A

100fA

Integrating

No

No

2611B

1

200V

1.5A/10A

100fA

Integrating

Yes

Yes

2612B

2

200V

1.5A/10A

100fA

Integrating

Yes

Yes

2614B

2

200V

1.5A/10A

100fA

Integrating

No

No

2634B

2

200V

1.5A/10A

0.1fA

Integrating

No

No

2635B

1

200V

1.5A/10A

0.1fA

Integrating

Yes

Yes

2636B

2

200V

1.5A/10A

0.1fA

Integrating

Yes

Yes


Standard Accessories
  • Operators and programming manuals, full specifications, TSP Express and Test Script Builder software, LabVIEW driver
  • Power cord

Option Accessories

2601B, 2602B, 2604B, 2611B, 2612B, 2614B

2600-Triax

Triax Cable Adapter

2600-BAN

Banana Test Leads Adapter

8606

Probe Kit for 2600-BAN

2635B, 2634B, 2636B

2600-Std-Res

Cal Std 1G ohm Resistor

Other Accessories

Rack mount kit

4299-1

Single Rack Mount Kit

4299-2

Dual Rack Mount Kit

4299-5

1U Vent Panel

GPIB cards and cable

KUSB-488B

USB to IEEE-488 Converter

KPCI-488LPA

Low Profile IEEE-488 PCI Card

7006-x, 7007-x

Shielded GPIB Cable

Test Fixtrue

8010

3000V, 100A Test Fixture

8011

40V, 50A Test Socket Kit

8101-4TRX

4-pin Transistor Test Fixture
