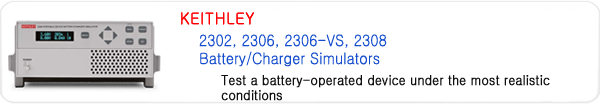

home > Keithley > 2302, 2306, 2306-VS, 2308 Battery/Charger Simulators







Features Benefits

<75mV voltage drop and <40μs recovery time to a 1000% load change (2302, 2306, 2306-VS), <150mV and <50μs (2308)

Keeps the output voltage steady even when sourcing large, instantaneous load changes

Wide current measurement range on both channels: 100nA to 5A

Measure sleep modes of low power, portable devices and circuits; also measure full power output

Measure pulse load currents with pulses as narrow as 50μs

Determine the power consumption of circuits and devices with dynamically changing load states using current measurement integration times as low as 33μs

Analog output (2308)

Display the current waveform on a scope or digitize the waveform for analysis in a PC

Variable output resistance : 0Ω - 1.00Ω, with 10mΩ resolution

Simulate the output response of an actual battery

Sink up to 3A on either channel

Simulate a discharged battery to test a charger circuit or be a load for a DU

Open sense lead detection

Detects a break in a remote sense lead connection to avoid DUT test errors

Independent digital voltmeter inputs

Saves an instrument by combining both a power supply and a DC digital voltmeter into one instrument, when not monitoring current, circuit voltages can be measured

Long integration

Make a load current measurement as long as 1 minute

Four built-in digital control lines

Eliminate the need for an extra relay control module or a few I/O lines with the supply’s internal control lines

Remote display/keypad

View the display and control the supply with the small remote display module that can be conveniently located anywhere even if the supply is in an inaccessible location.


Key specifications and ordering information
Feature 2302 2306 2306-VS 2308

Channel

1

2

2

2

Max. output voltage

15V

Max. output current

5A

Power

60W

50W

50W

50W

Transient response to a 10X load current change

<40μs recovery time and <90mV voltage droop

Measurement resolution

1mV, 100nA

Load pulse current Measurement

33μs - 833μs

Current sink capacity

3A

Variable output resistance

Digital voltmeter measurement, remote sense inputs, s0 0 – 1Ω with 10mΩ resolution

Special features

Digital voltmeter measurement, remote sense inputs, simulates a battery and a charger, GPIB interface, 4 relay control ports


Standard Accessories

  • User documentation
  • Rear Panel Mating Connector
Other Accessories

GPIB Interfaces,
Cables,
Rack Mount Kit

2306-DISP

Remote Display

CS-846

Mating Output Connector

SC-182

Low Inductance Coaxial Cable

4288-1

Single Fixed Rack Mount Kit

4288-2

Dual Fixed Rack Mount Kit

7007-05

Shielded IEEE-488 Cable, 0.5m

7007-1

Shielded IEEE-488 Cable, 1m

7007-2

Shielded IEEE-488 Cable, 2m

7007-3

Shielded IEEE-488 Cable, 3m

7007-4

Shielded IEEE-488 Cable, 4m

KPCI-488LPA

IEEE-488 Interface/Controller for the PCI Bus

KUSB-488B

IEEE-488 USB-to-GPIB Interface Adapter
