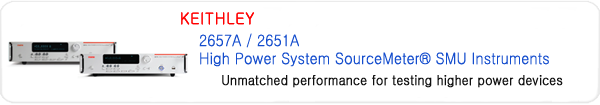

home > Keithley > 2651A / 2657A SourceMeter







Model Features Benefits

2657A

Up to 3,000V and up to 180W of power

Easily captures important parametric data that other equipment cannot and tests a wider range of devices

1fA resolution

Industry-best current resolution supports the low-leakage requirements of nextgeneration devices

2651A

Up to 50A (or 100A with 2 units) and up to 2000W pulse / 200W DC power

Easily captures important parametric data that other equipment cannot and tests a wider range of devices

100fA resolution

Widest range of current in the industry enables testing a wider range of devices

Both 2657A & 2651A

2 pairs of A/D converters: 22 bit high accuracy integrating 18 bit high speed (1µs) digitizing

Simultaneously measure V and I; precisely characterize steady-state behavior and transients, including rapidly changing thermal effects.

Scalable, flexible, high speed TSP®/TSP-Link® architecture

Improves system-level speed to lower the cost of test; enables true multichannel parallel test; expand the test system without the cost of a mainframe

4-quadrant design

Sources and sinks both voltage and current to provide more complete and faster test solutions

Arbitrary waveform generation with 1% to 100% duty cycle

Fully customizable sourcing to meet specific device requirements and minimize self heating effects

Variety of software solutions

Boosts productivity in R&D, QA, reliability, and production applications; get the test up and running quickly.



Key specifications and ordering information
Model Channels Max Voltage Max Current (DC / Pluse) Min Current A/D Converters TSP-Link® DIgital I/O

2651A

1

40V

10A/50A

100fA

Integrating and Digitizing

Yes

Yes

2657A

1

300V

120mA/120mA

1fA

Integrating and Digitizing

Yes

Yes


Standard Accessories
  • Operators and programming manuals, full specifications, TSP Express and Test Script Builder software, LabVIEW driver
  • Basic test cables (except 2657A, which are optional)
  • Power cord

Option Accessories

2651A

2651-KIT-2, -3

Coax Cable Assy (2m, 3m)

2657A

HV-CA-554-x

HV Triax to HV Triax Cable

HV-CA-553-x

SHV to HV Triax Cable

HV-CA-571-3

HV Triax Unterminated Cable

Other Accessories

Rack mount kit

4299-6

2651A, 2657A Rear Rack Mount Kit

4299-5

1U Vent Panel

GPIB cards and cable

KUSB-488B

USB to IEEE-488 Converter

KPCI-488LPA

Low Profile IEEE-488 PCI Card

7006-x, 7007-x

Shielded GPIB Cable

Test Fixtrue

8010

3000V, 100A Test Fixture

8011

40V, 50A Test Socket Kit

8101-4TRX

4-pin Transistor Test Fixture
