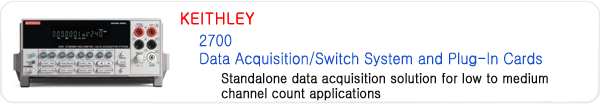

home > Keithley > 2700 Data Acquisition/Switch System and Plug-In Cards





Features Benefits

6½-digit measurement engine

22-bit resolution provides basic 1-year 0.003% DC V accuracy enabling, precision scanning measurements

Front panel DMM jacks

Allows easy access to DMM for quick troubleshooting and less expensive calibration connections – no special card required!

300 volt isolation

Maintain signal integrity with 300V isolation between channels and from any channel to ground

Mass terminated or screw terminal connector options

Select a mass terminated card when quick disconnecting is needed (production test system) or screw terminal when wiring is changed often (lab/R&D)

Full per-channel card configurability

Each channel can be independently configured, allowing a single card to measure avariety of signal types

Secure data logging

Non-volatile memory buffer allows continuous, unattended datalogging over long periods

Choice of 12 switch/control plug-in modules

Large selection enables users to optimize hardware based on application needs



Mainframe



Standard Mainframe Accessories

Model Size Remote
Communication

2700

2U, ½ Rack GPIB, RS232

2701

2U, ½ Rack

Ethernet, RS232

2750

2U, Full Rack

GPIB, RS232

  • Product CD (includes users manual, drivers, etc.)
  • Ethernet Crossover Cable (Model 2701 Only)
  • ExceLINX Software

Plug-in Cards

Model

Configuration

7700

Dual 1x10 Multiplexer
300V, 1A, with Auto-CJC

7701

Dual 1x16 Multiplexer
150V, 1A

7702

Dual 1x20 Multiplexer
300V, 1A

7703

Dual 1x16 Multiplexer
300V, 0.5A, Reed Relay

7705

Independent SPST
300V, 2A

7706

All-in-One: 16 DI/O, 2 Analog Outputs,
Counter, and Dual 1x10 Multiplexer
300V, 1A, with Auto-CJC

7707

Dual 1x5 Multiplexer
300V, 1A, with 32 Digital I/O

7708

Dual 1x20 Multiplexer
300V, 1A

7709

6x8 Matrix
300V, 1A

7710

Dual 1x10 Multiplexer
60V, 0.1A, Solid State Relay

7711

Dual 1x4 Multiplexer
2GHz. RF Relay

7712

Dual 1x4 Multiplexer
3.5GHz. RF Relay

Other Accessories

GPIB Interfaces,
Cables,
Rack Mount Kit

7007-1

Shielded IEEE-488 Cable, 1m (3.2 ft)

7007-2

Shielded IEEE-488 Cable, 2m (6.5 ft)

KPCI-488LPA

IEEE-488 Interface/Controller for the PCI Bus

KUSB-488B

IEEE-488 USB-to-GPIB Interface Adapter

4288-1

Fixed Rack Mount Kit (Models 2700 / 2701)

4288-7

Rear Support Mount Kit (Model 2750)

Plug-in Cards

7788

50 Pin D-Shell Connector Kit (for Models 7703 and 7705)

7789

50 Pin/25 Pin D-Shell Kit

7790

50 Pin Male, 50 Pin Female, and 25 Pin Male IDC D-Shell Connector Kit

7705-MTC-2

50 Pin Male to Female D Sub Cable, 2m

7707-MTC-2

25 Pin Male to Female D Sub Cable, 2m
