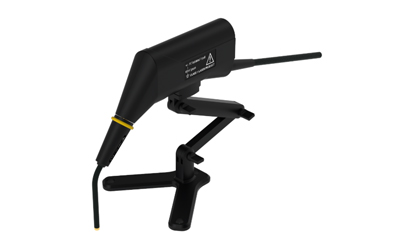

FF-1500 |
Optical isolation probe with wide bandwidth, high voltage, and high CMRR. Ideal for measuring the actual operating waveforms of switching devices in inverter.
- Type : Isolated Probe
- Input withstand voltage : ±1V, ±10V, ±25V | ±50V | ±250V, ±500V | ±1kV, ±2.5kV
- Frequency bandwidth : 1.5GHz
- Attenuation : 1:1 | 10:1 | 25:1 | 50:1 | 250:1 | 500:1 | 1000:1 | 2500:1
- Applications : High voltage measurement (floating) | Inverter/power measurement probes
|
 |

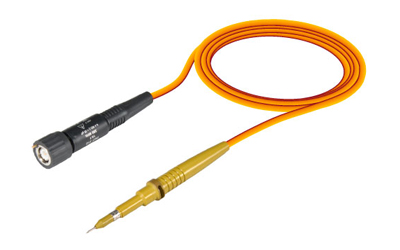

PHT312-RO |
A probe that can be used with guaranteed performance in high temperature and high humidity such as thermostatic chambers
- Type : Passive probes | Temperature-resistant probes
- Input withstand voltage : 400V(AC rms)
- Frequency bandwidth : 350MHz
- Attenuation : 10:1
- Operating temperature and humidity : -55ºC~+155ºC, Maximum relative humidity : 98%
- Applications : Thermostatic chamber measurement
|
 |

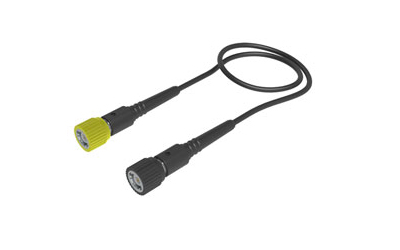

PKT Series |
Coaxial (cable divider) probe with BNC shape at the tip of the input (20 types)
- Type : Passive probes
- Input withstand voltage : 400V (AC rms)
- Frequency bandwidth : 350 MHz, 300 MHz / 400 MHz / 500 MHz
- Attenuation : 10:1 / 100:1
- Applications : System equipment (BNC-BNC connection)
- Manufacturer : PMK
|
 |

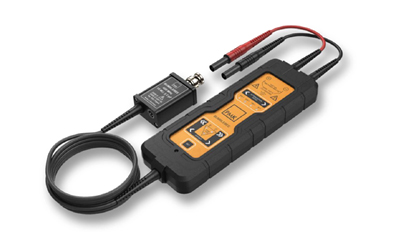

BumbleBee |
High In-Phase Signal Rejection Ratio High Bandwidth/High Voltage Differential Probe.
- Broadband 400MHz
- 2kV compatible
- High CMRR
- 4-type attenuation(50:1, 100:1, 250:1, 500:1)
- Can be used with any measurement equipment with 50Ω input
|
 |
SS-320 |
SS-320은 최대 차동 동작 전압 ±1,400V(DC+AC peak)에 대응하는 Iwatsu 고전압 차동 프로브
- Frequency bandwidth : DC to 100MHz (-3 dB)
- Attenuation : 50：1, 500：1
- Maximum differential operating voltage : ±1,400 V (DC＋AC peak)
- Maximum in-phase operating voltage : ±1,400V (DC + AC peak), or ±1,000Vrms
- DC CMRR : -70dB at 500VDC input voltage
- Full length : 2,000 mm ±30 mm
|
 |
Sonic Series |
Sonic Series는 FET 입력 프로브로, 0.6pF의 낮은 입력 정전용량을 통해 고주파 신호를 고품질로 측정
- FET input probe manufactured by PMK
- Low input capacitance : 0.6pF
- Frequency bandwidth : DC ～ 4GHz / 350Hz ～ 4GHz
- Attenuation : 10：1
- Input range : ±8V
- Measurement equipment side input coupling : 50Ω
|
 |
TETRIS Series |
PMK TETRIS Series는 최대 2.5 GHz의 대역폭과 높은 입력 임피던스를 제공하는 고성능 활성 프로브
- Frequency bandwidth : up to 2.5 GHz
- 3type (1/1.5/2 GHz)
- Low input capacitance : 0.9pF
- Maximum rated voltage : 20 V
- Connect with any scope : (50 ohm input)
- AC Adaptor included
|
 |
HV-P60A |
최대 DC 60kV 및 단발 펄스 80kV의 고전압 파형을 측정할 수 있는 High Voltage Probe
- Maximum input voltage : DC 60kV / single pulse 80kV
- Frequency bandwidth : DC～50MHz (-3dB)
- Attenuation : 2000：1 ±5%
- Rise time : 7ns or less
- Cable length : Approx. 4m
|
 |
HV-P30A |
최대 DC 30kV 및 단발 펄스 40kV의 고전압 파형을 측정할 수 있는 High Voltage Probe
- Maximum input voltage : DC 30kV / single pulse 40kV
- Frequency bandwidth : DC～50MHz (-3dB)
- Attenuation : 1000：1 ±5%
- Rise time : 7ns or less
- Cable length : Approx. 3m
|
 |
PHV1000 |
1kV CAT II 및 2kVpeak No Category 입력 전압에 대응하는 High Voltage Passive Probe
- Maximum input voltage : 1kV CAT II rms / 2kV No Category peak
- Attenuation : 100：1
- Bandwidth : 400MHz / 250MHz / 120MHz
- Input RC : 50MΩ / 7.5pF or 9.5pF
- Cable length : 2m / 3m / 5m
- ReadOut model and hard case model available
|
 |
PHV2000/PHVS2000 |
1kV CAT II 및 4kVpeak No Category 입력 전압에 대응하는 High Voltage Passive Probe
- Maximum input voltage : 1kV CAT II rms / 4kV No Category peak
- Attenuation : PHV2000 100：1 / PHVS2000 1000：1
- Bandwidth : 400MHz / 250MHz / 120MHz
- Input RC : 50MΩ / 7.5pF or 9.5pF
- Cable length : 2m / 3m / 5m
- ReadOut model and hard case model available
|
 |
PHV66x/PHVS66x |
AC rms 2.8kV, DC+AC peak 4kV, Impulse peak 6kV 입력 전압에 대응하는High Voltage Passive Probe
- AC rms : 2.8kV
- DC+AC peak : 4kV
- Impulse peak : 6kV
- Attenuation : 100：1 / 1000：1
- Bandwidth : 400MHz / 300MHz / 250MHz / 175MHz
- Cable length : 1.2m / 2m / 3m / 5m
|
 |
SMP Series |
2.54mm pitch 인접 핀에 병렬 접촉이 가능한 얇은 구조의 전압 프로브
- Passive Thin End Probe
- Contact adjacent 2.54mm pitch pins in parallel
- Models : SMP011, SMP021, SMP051, SMP101 / SMP101-RO
- Frequency bandwidth : DC～35MHz / 50MHz / 250MHz / 500MHz
- Attenuation : 1：1 / 2：1 / 5：1 / 10：1
- Maximum input voltage : 30Vrms
|
