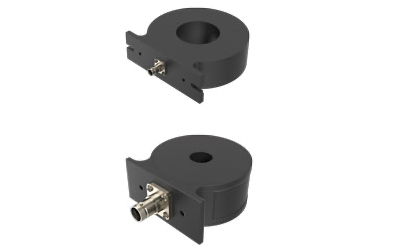

Lilco CT Series |
PMK Lilco CT Series는 AC 전류 측정을 위한 High it Integration Current Transformer 시리즈입니다.
- Type : Current transformer (CT) | AC only
- Allowable current : 7, 12, 14, 20, 33Arms | 50, 60Arms | 100, 200Arms | 500Arms
- Current sensitivity : 1V/A | 500m, 200m, 100mV/A
- Frequency bandwidth : 2, 5MHz | 10, 20, 25MHz | 30, 40MHz | 60MHz
|
 |

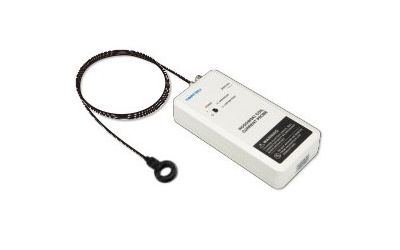

SS-680 Series |
AC 전류 측정을 위한 능동형 Rogowski Coil 시리즈로, 최대 12,000A peak, 100MHz 대역폭
- Type : Rogowski Coil / AC only
- Frequency bandwidth : 100MHz
- Shape : Penetration type (Φ14mm)
- Active type (requires power supply)
- Sensor unit operating temperature range : -10℃~70℃
- Withstand voltage : 1.2kV peak
|
 |

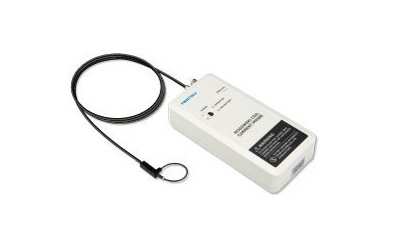

SS-280A Series |
AC 전류 측정을 위한 능동형 Rogowski Coil 시리즈로, 최대 30,000A peak, 30MHz 대역폭
- Type : Rogowski Coil / AC only
- Frequency bandwidth : 30MHz
- Temperature-resistant type (-40°C to +125°C)
- Active type (requires power supply)
- Sensor unit operating temperature range : -40℃~125℃
- Withstand voltage : 1.2kV peak
|
 |

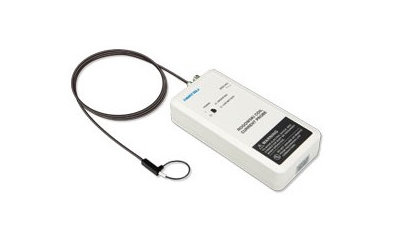

SS-280A-H Series |
AC 전류 측정을 위한 능동형 Rogowski Coil 시리즈로, 최대 30,000A peak, 30MHz 대역폭
- Type : Rogowski Coil / AC only
- Frequency bandwidth : 30MHz
- Temperature-resistant type (-40°C to +150°C)
- Active type (requires power supply)
- Sensor unit operating temperature range : -40℃~150℃
- Withstand voltage : 1.2kV peak
|
 |

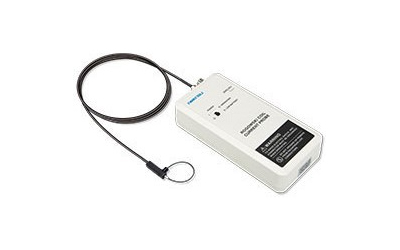

SS-660 / SP-660P Series |
AC 전류 측정을 위한 능동형 Rogowski Coil 시리즈로, 최대 1,200A peak, 30MHz 대역폭
- Type : Rogowski Coil / AC only
- Frequency bandwidth : 30MHz
- Temperature-resistant type (-40°C to +125°C)
- Small type (sensor coil diameter: 1mm)
- Active type (requires power supply)
- Sensor unit operating temperature range : -40℃~125℃
- Withstand voltage : 600V peak / 1,200V peak
|
 |

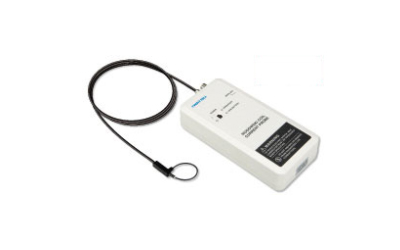

SS-620S Series |
AC 전류 측정을 위한 능동형 Rogowski Coil 시리즈로, 최대 30,000A peak, 25MHz 대역폭
- Type : Rogowski Coil / AC only
- Frequency bandwidth : 25MHz
- Temperature-resistant type (-40°C to +125°C)
- Active type (requires power supply)
- Sensor unit operating temperature range : -40℃~125℃
- Withstand voltage : 5kV peak
|
 |

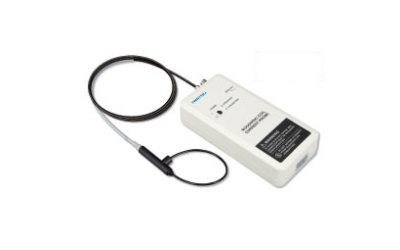

SS-620M Series |
AC 전류 측정을 위한 능동형 Rogowski Coil 시리즈로, 최대 30,000A peak, 20MHz 대역폭
- Type : Rogowski Coil / AC only
- Frequency bandwidth : 20MHz
- Temperature-resistant type (-40°C to +125°C)
- Active type (requires power supply)
- Sensor unit operating temperature range : -40℃~125℃
- Withstand voltage : 5kV peak
|
 |

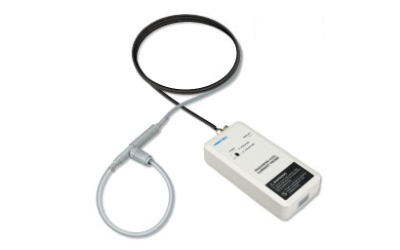

SS-290S Series |
AC 전류 측정을 위한 능동형 Rogowski Coil 시리즈로, 최대 120,000A peak, 20MHz 대역폭
- Type : Rogowski Coil / AC only
- Frequency bandwidth : 20MHz
- Temperature-resistant type (-40°C to +125°C)
- Active type (requires power supply)
- Sensor unit operating temperature range : -40℃~125℃
- Withstand voltage : 10kV peak
|
 |

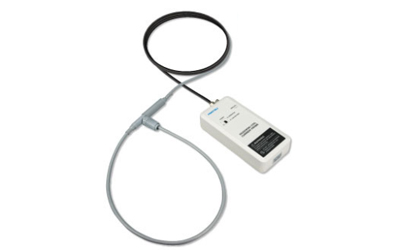

SS-290L Series |
AC 전류 측정을 위한 능동형 Rogowski Coil 시리즈로, 최대 120,000A peak, 10MHz 대역폭
- Type : Rogowski Coil / AC only
- Frequency bandwidth : 10MHz
- Large diameter type (Φ220mm)
- Temperature-resistant type (-40°C to +125°C)
- Active type (requires power supply)
- Sensor unit operating temperature range : -40℃~125℃
- Withstand voltage : 10kV peak
|
 |

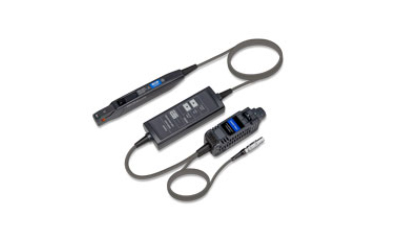

SS-530 Series |
DC부터 AC까지 전류 측정이 가능하며, 0.5A / 5A / 30A 레인지 전환을 지원
- Type : Hall element / DC~
- Range switching clamp probe (DC+AC)
- Allowable input current : 0.5A / 5A / 30A
- Frequency bandwidth : DC ~ 50MHz / DC ~ 120MHz
- Clamp type : Φ5mm or less
- Typical accuracy : ±1.0%rdg. ±1mV
|
 |

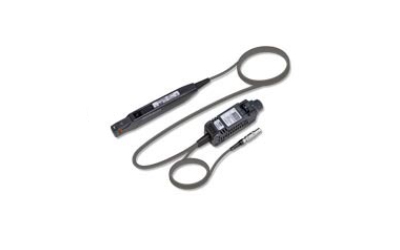

SS-520 Series |
DC부터 AC까지 전류 측정이 가능하며, 5Arms 입력 전류와 1V/A 전류 감도를 지원
- Type : Hall element / DC~
- 5A clamp probe (DC+AC)
- Allowable input current : 5Arms
- Current sensitivity : 1V/A
- Frequency bandwidth : DC ~ 50MHz / DC ~ 120MHz
- Clamp type : Φ5mm or less
|
 |

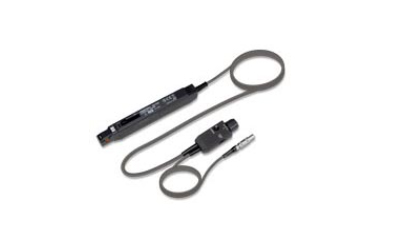

SS-550 / SS-540 Series |
DC부터 AC까지 전류 측정이 가능하며, 5Arms 입력 전류와 1V/A 전류 감도를 지원
- Type : Hall element / DC~
- 5A clamp probe (DC+AC)
- Allowable input current : 5Arms
- Current sensitivity : 1V/A
- Frequency bandwidth : DC ~ 50MHz / DC ~ 120MHz
- Clamp type : Φ5mm or less
|
 |

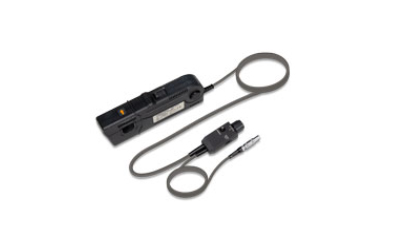

SS-570 / SS-560 Series |
DC부터 AC까지 전류 측정이 가능하며, SS-560은 150Arms / 300Apeak,
SS-570은 500Arms / 700Apeak 입력 전류를 지원
- Type : Hall element / DC~
- Large current large diameter clamp probe (DC+AC)
- Allowable input current : 150Arms / 500Arms
- Frequency bandwidth : DC ~ 10MHz / DC ~ 2MHz
- Clamp type : Φ20mm or less
- Accuracy : ±1.0%rdg. ±1mV
|
