스펙트럼 분석기

> 품목별제품 > 스펙트럼 분석기

* 제품이미지 혹은 모델명/제품명 클릭시 상세페이지로 이동됩니다.

모델/제품 주파수 RBW 표준적인 디스플레이의
노이즈 수준
TOI(Third Order
Intercept Point)

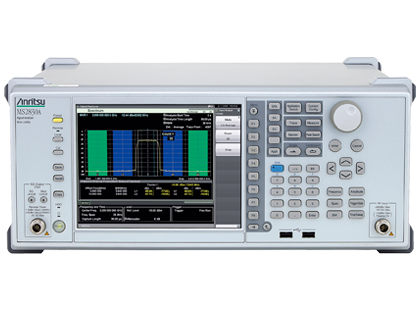

MS2830A Spectrum Analyzer/
Signal Analyzer
MS2830A
9 kHz to 3.6 GHz
9 kHz to 6 GHz
9 kHz to 13.5 GHz
9 kHz to 26.5 GHz*
9 kHz to 43 GHz*
* : Mixers to 325 GHz
1 Hz to 31.25 MHz
(with MS2830A-009)
1 Hz to 10 MHz
-161 dBm/Hz
(1 GHz, preamp ON)
+15 dBm
(1 GHz)
MS2840A Spectrum Analyzer/
Signal Analyzer
MS2840A
9 kHz to 3.6 GHz
9 kHz to 6 GHz
9 kHz to 26.5 GHz*
9 kHz to 44.5 GHz*
* : Mixers to 325 GHz
1 Hz to 31.25 MHz -164 dBm/Hz
(1 GHz, preamp ON)
+16 dBm
(1 GHz)

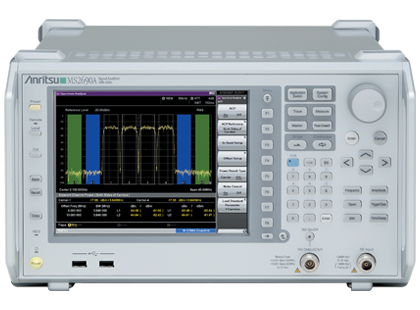

MS269xA Signal AnalyzerMS269xA 시리즈 50 Hz to 6 GHz
50 Hz to 13.5 GHz
50 Hz to 26.5 GHz
1 Hz to 31.25 MHz -166 dBm/Hz
(1 GHz, preamp ON)
+22 dBm
(1 GHz)

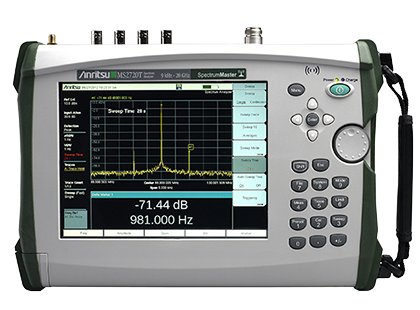

MS27102A Spectrum MasterMS2720T 9 kHz to 9 GHz
9 kHz to 13 GHz
9 kHz to 20 GHz
9 kHz to 32 GHz
9 kHz to 43 GHz
1 Hz to 10 MHz -164 dBm/Hz (typ.)
(1 GHz, preamp ON)
+20 dBm (typ.)
MS27103A 소형 Spectrum MasterMS2711E 9 kHz to 3 GHz 100 Hz to 3 MHz -162 dBm/Hz (typ.)
(1 GHz, preamp ON, Normalized to 1Hz)
+25 dBm (typ.)
MA2700A 소형 Spectrum MasterMS2712E, MS2713E 9 kHz to 4 GHz
9 kHz to 6 GHz
1 Hz to 3 MHz -162 dBm/Hz (typ.)
(1 GHz, preamp ON)
+25 dBm (typ.)

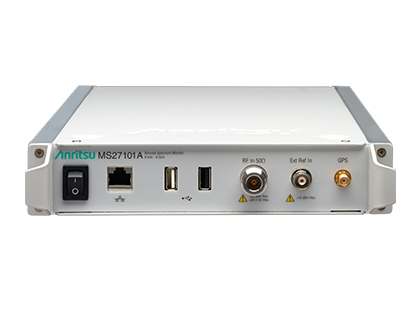

MS27101A 원격
스펙트럼 모니터
MS27101A

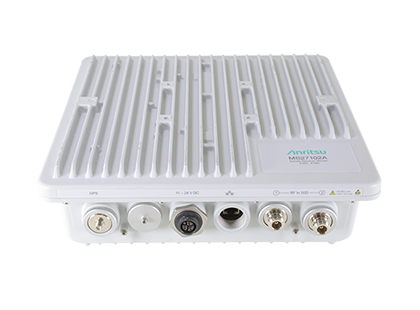

MS27102A 원격
스펙트럼 모니터
MS27102A

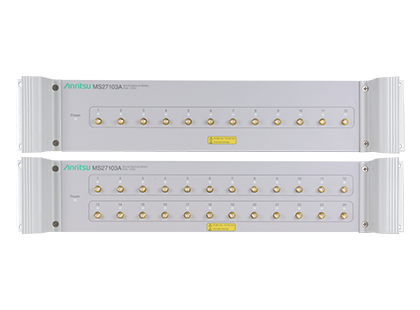

MS27103A 원격
스펙트럼 모니터
MS27103A

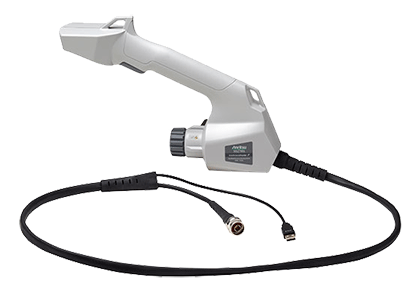

MA2700A Handheld
Interference Hunter
MA2700A
