네트워크 분석기
> 메이커별제품 > Anritsu
* 제품이미지 혹은 모델명/제품명 클릭시 상세페이지로 이동됩니다.
| 모델/제품 | 주파수 | 다이내믹 레인지 | Sweep Speed | |
|---|---|---|---|---|
 |

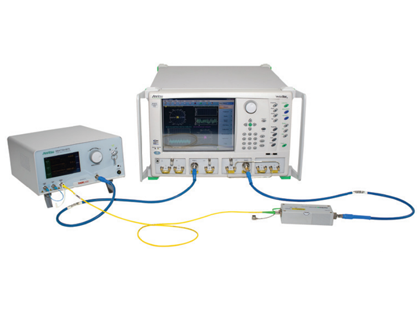

VectorStar™ Opto-Electronic Network AnalyzersME7848A | 70 kHz to 40, 70 GHz 850, 1310, 1550 nm Wavelengths |
99 dB maximum | N/A |
 |

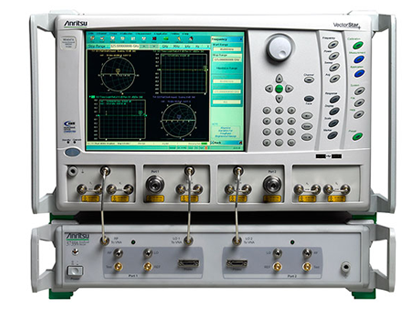

VectorStar Broadband VNA ME7838/AX/EX/D/GME7838 Series | 70 kHz to 110 GHz 70 kHz to 125 GHz 70 kHz to 145 GHz 70 kHz to 220/226 GHz mmWave Bands 170 GHz to 1.1 THz |
124 dB max 124 dB max 125 dB max 120 dB max 100 dB max |
30 μsec/point |
 |

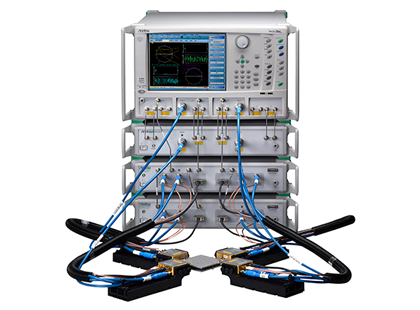

VectorStar 4-Port Broadband VNA ME7838E4X/A4X/D4/G4ME7838A4 | 70 kHz to 110/125/145/220 GHz | 123 dB max | 30 μsec/point |
 |

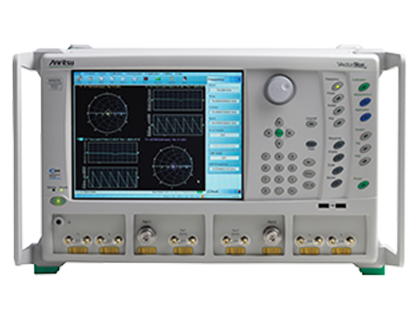

RF VectorStar 제품군 µW, mmW VNAMS4640B 시리즈 |
70 kHz to 70 GHz | 최대 142 dB | 20 μsec/point |
 |

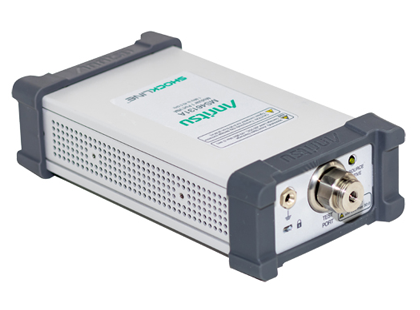

Modular 1 port Vector Network AnalyzerMS46131A |
1 MHz to 43.5 GHz | ||
 |

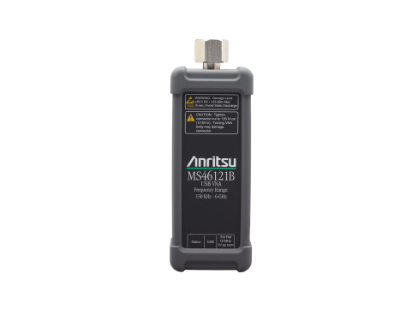

ShockLine™ 1-포트 USB VNAMS46121B |
150 kHz to 6 GHz | 120 μsec/point, typical | |
 |

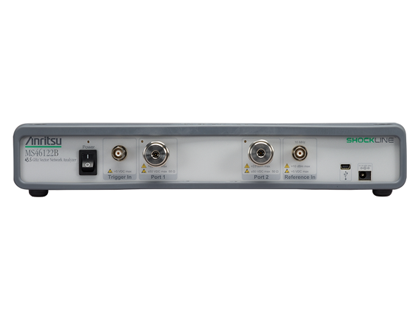

ShockLine™ 컴팩트 USB VNAMS46122B |
1 MHz to 8 GHz 1 MHz to 20 GHz 1 MHz to 43.5 GHz |
> 110 dB | 130 μsec/point, typical |
 |

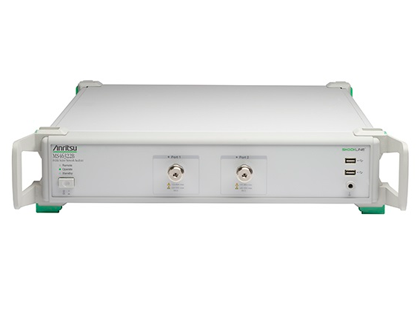

ShockLine™ Economy 벡터 네트워크 분석기MS46322B |
1 MHz to 8 GHz 1 MHz to 20 GHz 1 MHz to 43.5 GHz |
> 100 dB | 130 μsec/point, typical |
 |

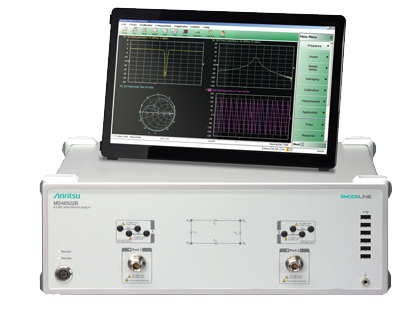

ShockLine™ 2-포트 Performance VNAMS46522B |
50 kHz to 8.5 GHz 50 kHz to 20 GHz 50 kHz to 43.5 GHz 55 GHz to 92 GHz |
최대 140 dB | 30 μsec/point |
 |

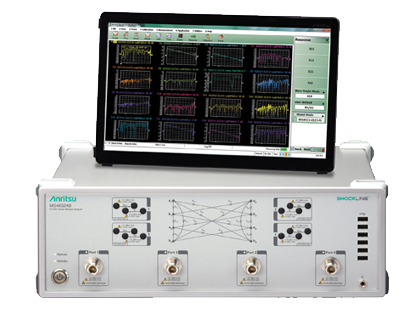

ShockLine™ 4-포트 Performance VNAMS46524B |
50 kHz to 8.5 GHz 50 kHz to 20 GHz 50 kHz to 43.5 GHz |
최대 140 dB | 30 μsec/point |
 |

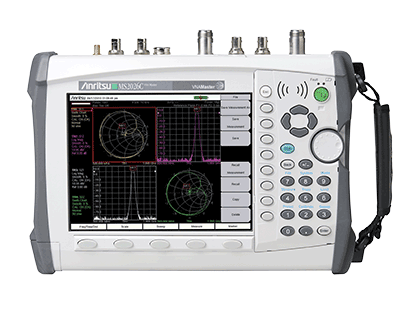

VNA Master/ VNA Master + Spectrum AnalyzerMS2036C |
5 kHz to 6 GHz | ≥ 90 dB (Transmission @ 6 GHz) | 350 µsec/point |
 |

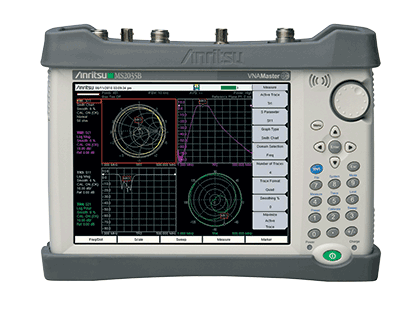

VNA Master/ Spectrum AnalyzerMS20xxB |
500 kHz to 4 GHz 500 kHz to 6 GHz |
≥ 100 dB (Transmission) | 850 µsec/point |
