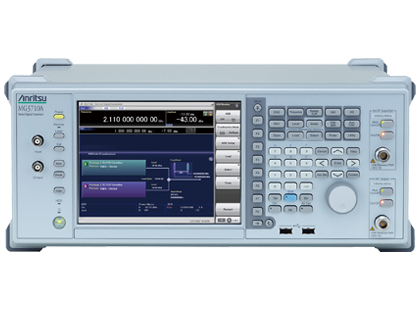

Vector Signal Generator MG3710A
안리쓰 MG3710A

  • • 100 kHz~2.7/4/6 GHz의 주파수를 지원하는 벡터 신호 발생기
  • • ACLR: -71 dBc(W-CDMA, 테스트 모델 1, 64DPCH, ≤+5 dBm)
  • • 출력 수준 +23 dBm(CW, 400 MHz~3 GHz)
  • • 스위칭 시간: < 600 µs(List/Sweep 모드)
  • • 광대역(160 MHz/120 MHz) 기저대 신호 발생기 내장
  • • 듀얼 RF(옵션)를 이용한 독립 RF 출력 2개가 가능합니다
  • • 이중 파형 메모리(옵션)로 인해 RF 출력별로 독립된 변조 신호가 가능합니다

제품 사양
MG3710A
Frequency Range 1st SG 9 kHz to 2.7 GHz [MG3710A-032]
9 kHz to 4 GHz [MG3710A-034]
9 kHz to 6 GHz [MG3710A-036]
2nd SG 9 kHz to 2.7 GHz [MG3710A-062]
9 kHz to 4 GHz [MG3710A-064]
9 kHz to 6 GHz [MG3710A-066]
Output Level without
MG3710A-043/073
–110 to +17 dBm [without MG3710A-041/042], [without MG3710A-071/072]
–110 to +30 dBm [with MG3710A-041, without MG3710A-042], [with MG3710A-071, without MG3710A-072]
–144 to +17 dBm [without MG3710A-041, with MG3710A-042], [without MG3710A-071, with MG3710A-072]
–144 to +30 dBm [with MG3710A-041/042], [with MG3710A-071/072]
with
MG3710A-043/073
–110 to +17 dBm [without MG3710A-041/042], [without MG3710A-071/072]
–110 to +25 dBm [with MG3710A-041, without MG3710A-042], [with MG3710A-071, without MG3710A-072]
–144 to +17 dBm [without MG3710A-041, with MG3710A-042], [without MG3710A-071, with MG3710A-072]
–144 to +25 dBm [with MG3710A-041/042], [with MG3710A-071/072]
Output Connector N-J Connector, 50Ω (Front panel)
Maximum Reverse
Input Power

±50 VDC (max.)
without
MG3710A-043
2 W (nom.)
with
MG3710A-043
20 W (1 MHz < Frequency of Reverse Input Power ≤ 2 GHz) (nom.)
10 W (2 GHz < Frequency of Reverse Input Power ≤ 6 GHz) (nom.)
without
MG3710A-073
2 W (nom.)
with
MG3710A-073
20 W (1 MHz < Frequency of Reverse Input Power ≤ 2 GHz) (nom.)
10 W (2 GHz < Frequency of Reverse Input Power ≤ 6 GHz) (nom.)
Harmonic Spurious
(CW, Optimize S/N: Off)
without
MG3710A-043,
or MG3710A-073
without MG3710A-041 :
<–30 dBc (Output Level: ≤+4 dBm, 10 MHz ≤ f ≤ 3 GHz)
<–30 dBc (Output Level: ≤+4 dBm, f > 3 GHz)
with MG3710A-041 :
>–30 dBc (Output Level: ≤+4 dBm, 10 MHz ≤ f < 50 MHz)
>–30 dBc (Output Level: ≤+12 dBm, 50 MHz ≤ f ≤ 3 GHz)
>–30 dBc (Output Level: ≤+4 dBm, f >3 GHz)
with
MG3710A-043,
or MG3710A-073
without MG3710A-041 :
<–30 dBc (Output Level: ≤+1 dBm, 10 MHz ≤ f ≤ 3 GHz)
<–30 dBc (Output Level: ≤+1 dBm, f >3 GHz)
with MG3710A-041 :
<–30 dBc (Output Level: ≤+1 dBm, 10 MHz ≤ f < 50 MHz)
<–30 dBc (Output Level: ≤+9 dBm, 50 MHz ≤ f ≤ 3 GHz)
<–30 dBc (Output Level: ≤+1 dBm, f >3 GHz)
Analog Modulation Amplitude Modulation (AM)
Frequency Modulation (FM)
Phase Modulation (PM)
Pulse Modulation
Vector Modulation W-CDMA
GSM
EDGE
LTE
Arbitrary Waveform Generator Modulation Bandwidth 160 MHz*/120 MHz
Waveform Resolution 14, 15, 16 bits for each I/Q
Waveform Memory without MG3710A-045/046 : 64 Msamples
with MG3710A-045, without MG3710A-046 : 256 Msamples
without MG3710A-045, with MG3710A-046, or with MG3710A-045/046 : 1024 Msamples
AWGN Generation Function
Sweep/List Function sweep; 1000 point
List: 500 point
BER Measurement Function Repeat PN9, PN11, PN15, PN20, PN23, ALL0, ALL1, 01
PN9fix, PN11fix, PN15fix, PN20fix, PN23fix, User Define
Interface USB (USB2.0, Front panel: 2 ports, Rear panel: 2 ports)
Monitor Output (compatible with VGA, Rear panel)
Display 8.4-inch, XGA-color LCD (Diagonal: 213 mm, Resolution: 1024 × 768)
Dimensions and Mass 426 (W) × 177 (H) × 390 (D) mm (excluding projections)
≤13.7 kg (MG3710A-032, 034, or 036, excluding other options)
≤17 kg (including all options)
옵션 & 악세서리
Option
Hardware Option
1st RF
(Requires one option)
Hardware Option
2nd RF(optional)
(1xx: Retrofit)
Hardware Option
Common
(1xx: Retrofit)
MG3710A-032 1stRF 100 kHz to 2.7 GHz
MG3710A-034 1stRF 100 kHz to 4 GHz
MG3710A-036 1stRF 100 kHz to 6 GHz
MG3710A-062/162 2ndRF 100 kHz to 2.7 GHz
MG3710A-064/164 2ndRF 100 kHz to 4 GHz
MG3710A-066/166 2ndRF 100 kHz to 6 GHz
MG3710A-001/101 Rubidium Reference Oscillator
MG3710A-002/102 High Stability Reference Oscillator
MG3710A-011/111 2ndary HDD
MG3710A-017/117 Universal Input/Output
MG3710A-021/121 BER Test Function
MG3710A-029 OS Upgrade to Windows 7
MG3710A-313 Removable HDD
Hardware Option
For 1st RF
(1xx: Retrofit)
MG3710A-018/118 Analog IQ Input/Output
MG3710A-041/141 High Power Extension for 1stRF
MG3710A-042/140 Low Power Extension for 1stRF
MG3710A-043/143 Reverse Power Protection for 1stRF
MG3710A-045/145 ARB Memory Upgrade 256 Msample for 1stRF
MG3710A-046/146 ARB Memory Upgrade 1024 Msample for 1stRF
MG3710A-048/148 Combination of Baseband Signal for 1stRF
MG3710A-049/149 AWGN for 1stRF
MG3710A-050/150 Additional Analog Modulation Input for 1st RF
Hardware Option
For 2nd RF
(1xx: Retrofit)
MG3710A-071/171 High Power Extension for 2ndRF
MG3710A-072/172 Low Power Extension for 2ndRF
MG3710A-073/173 Reverse Power Protection for 2ndRF
MG3710A-075/175 ARB Memory Upgrade 256 Msample for 2ndRF
MG3710A-076/176 ARB Memory Upgrade 1024 Msample for 2ndRF
MG3710A-078/178 Combination of Baseband Signal for 2ndRF
MG3710A-079/179 AWGN for 2ndRF
MG3710A-080/180 Additional Analog Modulation Input for 2nd RF
Software Waveform Pattern MX370073A DFS Radar Pattern [For TELEC/FCC]
MX370075A DFS (ETSI) Waveform Pattern [For ETSI]
MX370084A ISDB-Tmm Waveform Pattern
Software IQproducer MX370101A HSDPA/HSUPA IQproducer
MX370102A TDMA IQproducer
MX370103A CDMA2000 1xEV-DO IQproducer
MX370104A Multi-carrier IQproducer
MX370105A Mobile WiMAX IQproducer
MX370106A DVB-T/H IQproducer
MX370107A Fading IQproducer
MX370108A LTE IQproducer
MX370108A-001 LTE-Advanced FDD Option [Requires MX370108A]
MX370110A LTE TDD IQproducer
MX370110A-001 LTE-Advanced TDD Option [Requires MX370110A]
MX370111A WLAN IQproducer
MX370111A-002 802.11ac (160 MHz) Option [Requires MX370111A]
MX370112A TD-SCDMA IQproducer
