ESG Vector Signal Generator

Agilent/E4438C

제품 상세정보
제조사 Agilent
모 델 E4438C

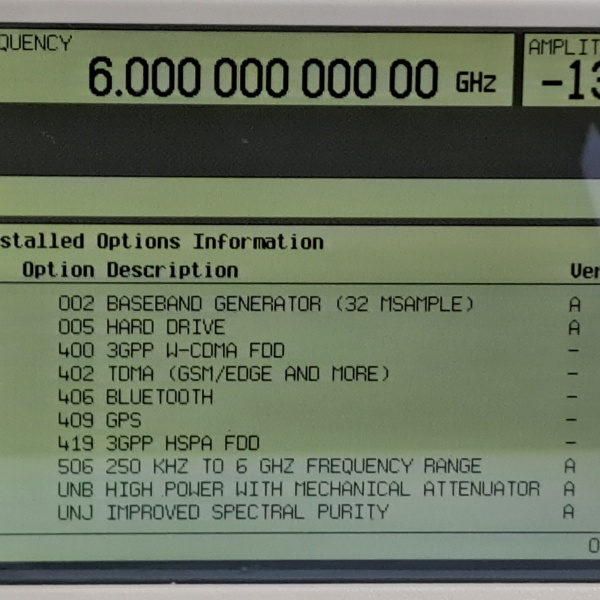

옵 션 002 005 400 402 406 409 419 506 UNB UNJ
액세서리
가 격 ₩8,700,000 (VAT 별도)

주요스펙
    - Frequency range 250 kHz 6 GHz
    - Output power up to +17 dBm
    - RF modulation bandwidth up to 160 MH
    - Flexible FSK, MSK, PSK, QAM, custom I/Q, AM, FM, M, and pulse
    - Step & list sweep frequency and power
    - Internal baseband generator (80 MHz RF BW)
    - Arbitrary I/Q waveform playback (up to 100 MSa/s)
    - Up to 64MSa playback memory and 1 GSa storage
    - Real-time I/Q symbol generation (up to 50 Msym/s)
    - Generate 802.11 WLAN, W-CDMA, cdma2000, 1xEV, TD-SCDMA, GSM, EDGE, cdmaOne, multitone, and more
    - Digital I/O, fading, and PC HDD waveform streaming with Baseband Studio
    - Remote control over 10BaseT LAN and GPIB
    - SCPI and IVI-COM drivers
    - 002: Baseband Generator (32 msample))
    - 005: Hard Drive 6 Gbyte
    - 400: WCDMA 3GPP (FDD) personalities
    - 402: TDMA personalities (GSM, EDGE, NADC, PDC, PHS, DECT, TETRA)
    - 406: Signal Studio for Bluetooth
    - 409: GPSPersonality
    - 419: Signal Studio for 3GPP W-CDMA HSPA
    - 506: 6 GHz frequency range [requires option UNJ, includes mechanical attenuator]
    - UNB: High output power with mechanical attenuator

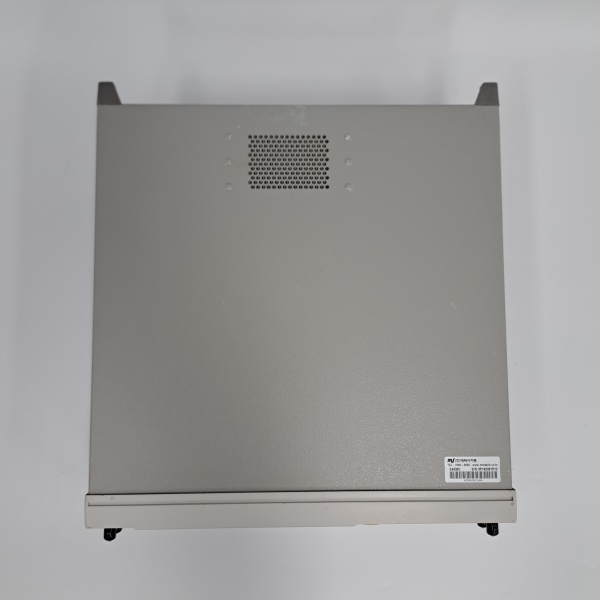

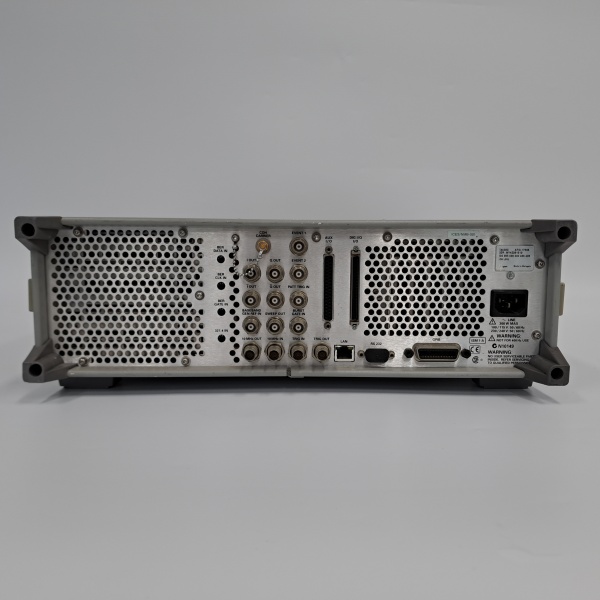

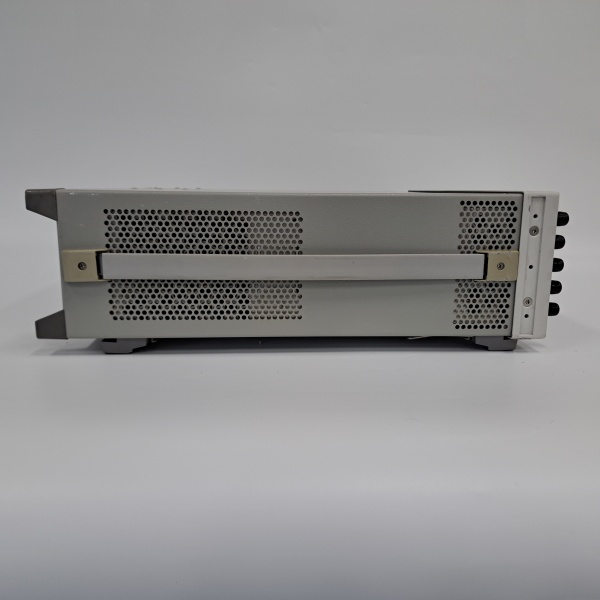

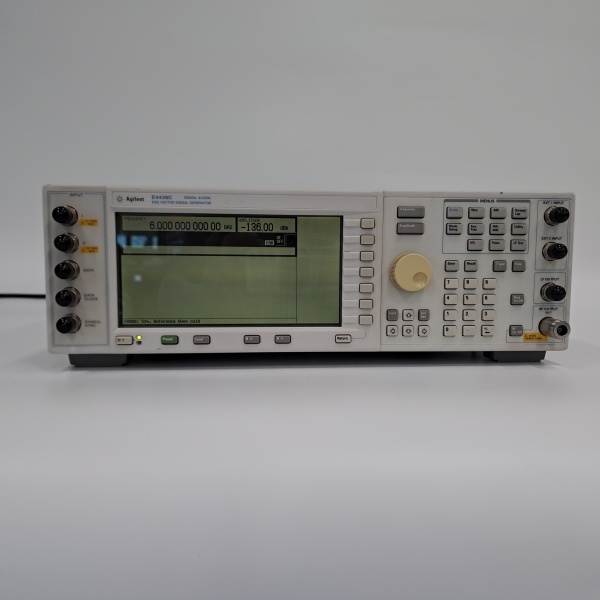

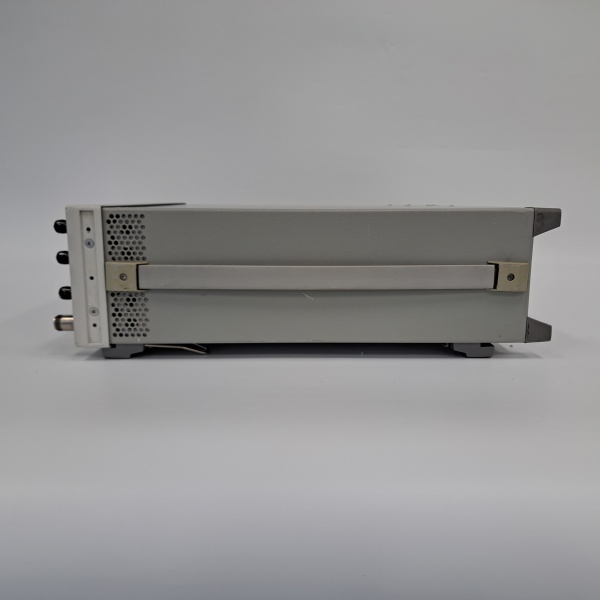

    본 제품의 실제 사진입니다.







자료실
제 목 파일 다운로드
[애질런트(HP)] E4438C User Guide (E) Download
E4438C ESG Vector Signal Generator (Data Sheet) Download
