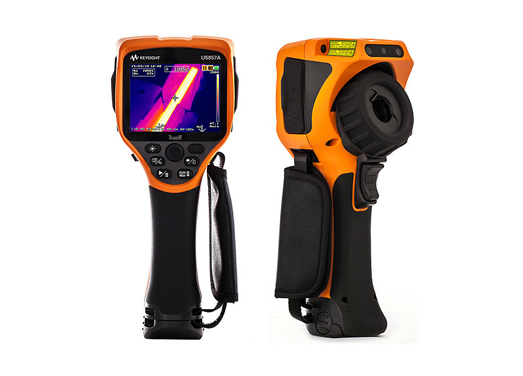

열화상 카메라 U5850 시리즈 (단종)
U5850A
  • • Identify abnormalities faster with 4x more in-camera fine resolution
  • • Monitor temperature changes through image logging and temperature
    　 trending capabilities
  • • Ability to focus on objects as close as 10 cm away
  • • Compact, lightweight, ergonomic
  • • High temperature range (up to 1200 °C)
  • • Easy-to-use customizable color palette
대체품 : 없음
제품 사양
U5855A U5856A U5857A
Temperature measurement range
Range 1:
Range 2:
Range 3:		 –20 ~ 350 °C
–20 to 120 °C
0 to 350 °C
N/A		 –20 ~ 650 °C
–20 to 120 °C
23 to 650 °C
N/A 		–20 ~ 1200 °C
–20 to 120 °C
0 to 350 °C
250 to 1200 °C
Thermal sensitivity
Range 1:
Range 2:
Range 3:
0.07 °C (at 30 °C)
0.1 °C (at 30 °C)
N/A
0.07 °C (at 30 °C)
0.5 °C (at 30 °C)
N/A
0.07 °C (at 30 °C)
0.1 °C (at 30 °C)
0.5 °C (at 250 °C)
Accuracy ± 2 °C or ± 2% (whichever is greater)
At 0 ~ 40 °C ambient temperature
Detector type Uncooled focal plane array (α-Si)
Detector resolution 160 × 120
Fine resolution (in-camera) 320 × 240 (IR pixels)
Spectral range 8 to 14 μm
Frame rate 9 Hz
Field of view (FOV) 28 ° (H) × 21° (V)
Spatial resolution (IFOV) 3.1 mrad; 2.1 mrad (with fine resolution)
Focal distance 10 cm to infinity
Focus mechanism Manual focus
견적 담기 U5855A견적담기 U5856A 견적담기 U5857A 견적담기
옵션&액세서리
Description Model number
U5855A TrueIR thermal imager with 2-bay charger and additional battery U5855A-100
U5856A TrueIR thermal imager with 2-bay charger and additional battery U5856A-100
U5857A TrueIR thermal imager with 2-bay charger and additional battery U5857A-100
Power adapter (with power cord) U5751A
Rechargeable Li-Ion battery U5752A
External battery charger (2-bay) U5753A
Video RCA to RCA interface cable, 2 m U5761A
USB standard-A to mini type-B interface cable, 1 m U5762A
Rugged carrying case, hard U5771A
Hand strap, adjustable for right-handed and left-handed use U5772A
