주요스펙

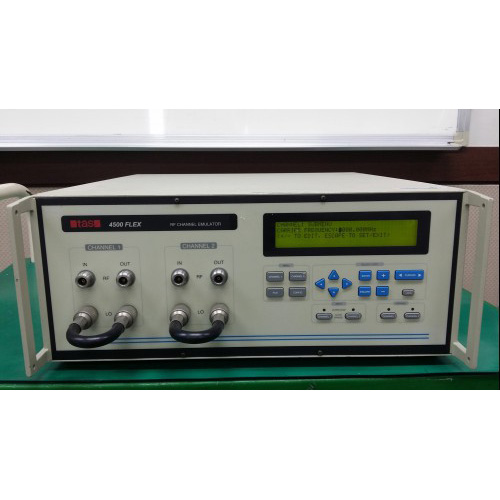

- GSM-15, RF Channel Emulator, 800 to 2500MHz
- RF attenuator CH1 and CH2 - 80.0/0.1 dB
- RF Filter CH1 and CH2 - Installed
- Filter Channel BP CH1 and CH2 - Installed
- LO CH1 and CH2 - 940-2860 MHz
- Delay: 2000 microseconds/ 0.5ns
- Dynamic Emulation Installed
- Channel Configuratin Installed
- Emulates delay, fast and slow fading, and path loss characteristics of RF mobile communication channels.
- Tests a wide range of wireless voice and data communication equipment: cellular telephones, cellular modems, personal communications terminals, wireless LANs, pagers, wireless network equipment, and much more.
- 2 independent wide bandwidth RF channels (can be combined to make one 12-path channel)
- 6 transmission paths
- Each path can be programmed for: delay, path loss, Rayleigh fading, and log-normal fading.
