주요스펙

- 300KHz~8.5GHz
- Power sweep with 25 dB sweep range and maximum +10dBm source power
- Power meter calibration
- Maximum of 16 channels / 16 traces per channel
- Intuilink and SICL over LAN support
- 125 dB dynamic range at test port (typical)
- 9.6 µs/point sweep speed
- 0.001 dB rms trace noise
- Integrated 2-, 3- and 4-ports with balanced measurements
- Fixture embedding/de-embedding and port characteristic impedance conversion
- Time domain transform with gating
- Built-in Visual Basic® for Applications (VBA)
- 008 : Frequency Offset Mode
- 010 : Time Domain Analysis
- 016 : Touch Screen Color LCD
- IE5 : High Stability Timebase
- 314 : 3Port S-Parameter Test Set
- OS: WIN2000

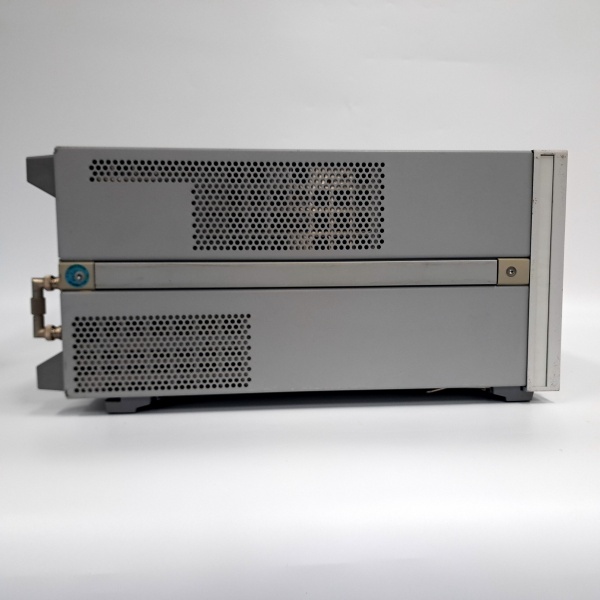

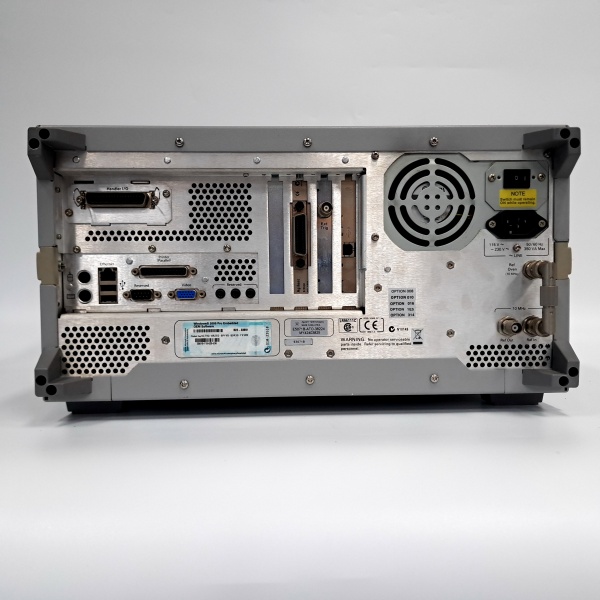

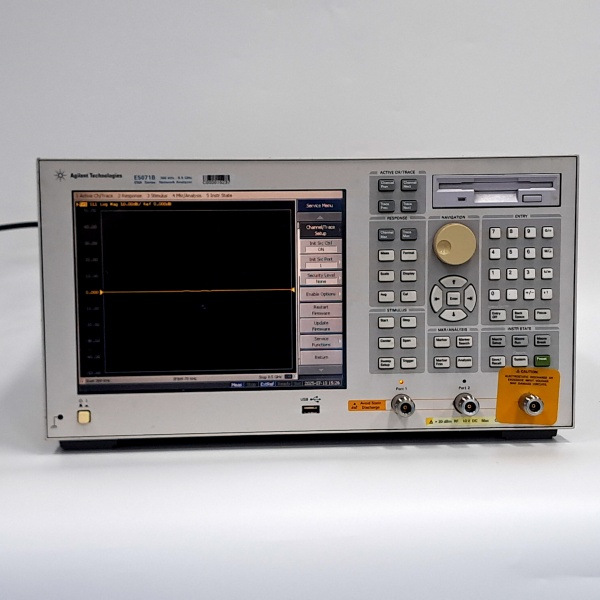

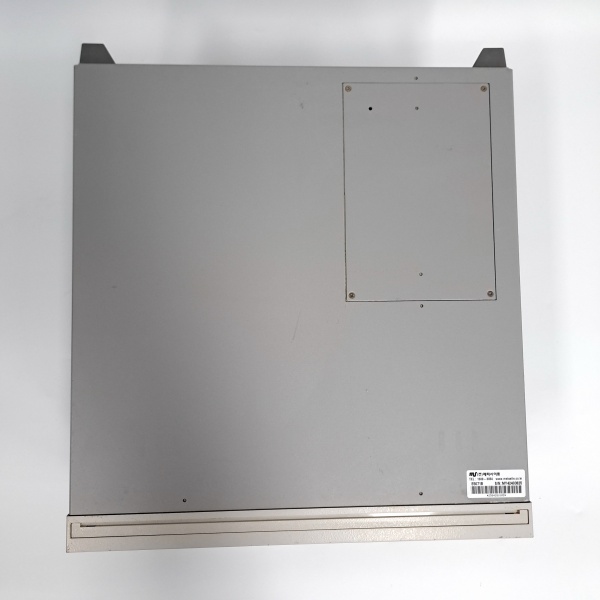

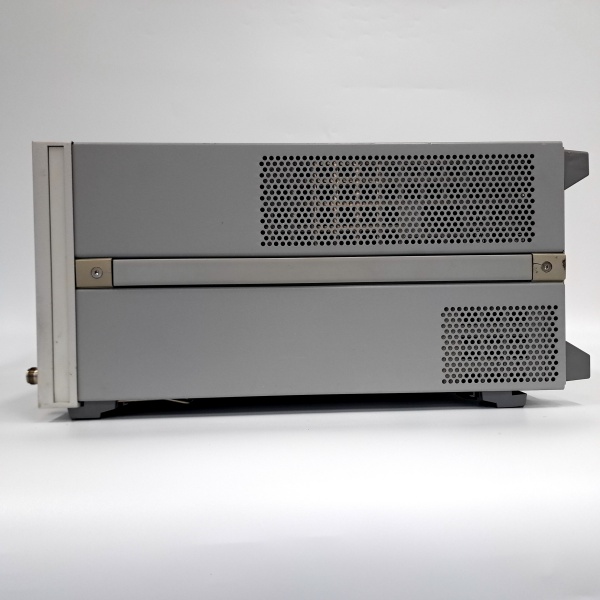

본 제품의 실제 사진입니다.
