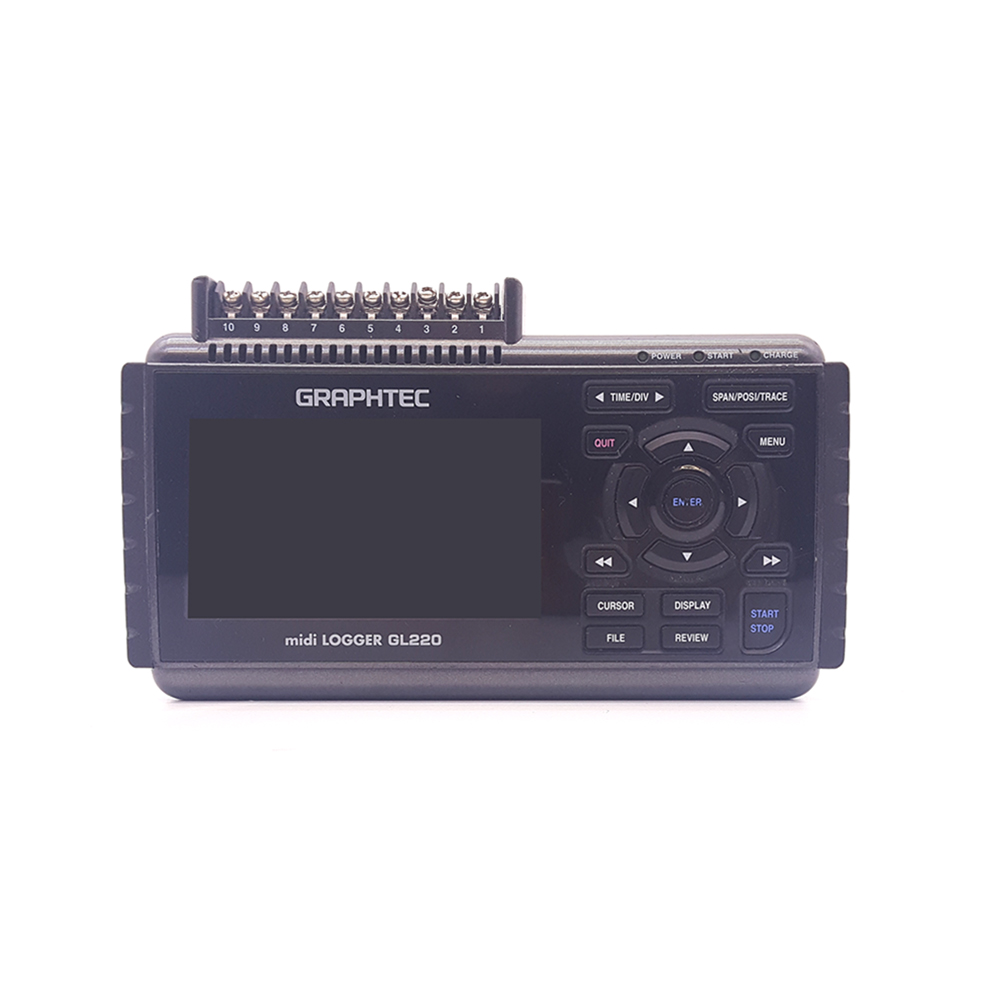

Midi Logger
제품 상세정보 |
|
---|---|
제조사 | GRAPHTEC |
모 델 | GL220 |
옵 션 | |
액세서리 | |
가 격 | 판매완료 (구매 불가 상품입니다.) |
주요스펙
-
- Number of inputs : 10
- Input terminal type : M3 screw type terminal
- Input method : Photo MOS relay scanning system; all hannels isolated, balanced input
- Scan speed : 10 ms/1 ch maximum
Measurement Ranges
- Voltage : 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50 V; 1-5 F.S.
- Temperature : Thermocouples: K, J, E, T, R, S, B, N, W
- Humidity : 0 to 100% (Voltage 0V to 1V scaling conversion)
