RF 신호발생기

> 품목별제품 > RF 일반 > RF 신호발생기

* 제품이미지 혹은 모델명/제품명 클릭시 상세페이지로 이동됩니다.

모델/제품 주파수 Switching
Speed
Output Level (Single Side Band)
Phase Noise

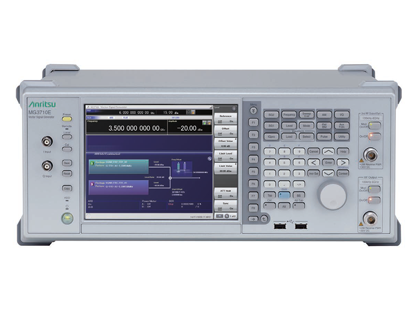

MG3710E Vector Signal GeneratorMG3710E 100 kHz to 2.7 GHz
100 kHz to 4 GHz
100 kHz to 6 GHz
≤600 µs Min: -144 dBm
(with High power opt.)
Max: +30 dBm
(with low power opt.)
<-131 dBc/Hz (typ.)
(1 GHz, 20 kHz offset)

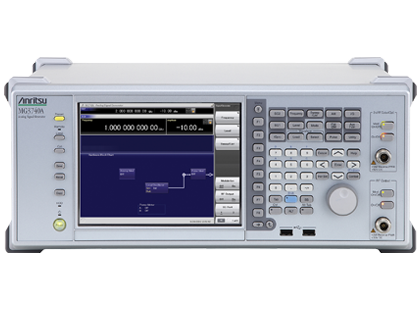

MG3740A Analog Signal GeneratorMG3740A 100 kHz to 2.7 GHz
100 kHz to 4 GHz
100 kHz to 6 GHz
≤600 µs Min: -144 dBm
(with High power opt.)
Max: +30 dBm
(with low power opt.)
<-131 dBc/Hz (typ.)
(1 GHz, 20 kHz offset)

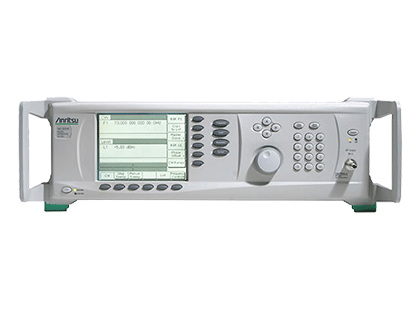

MG3690C RF/마이크로파 신호 발생기MG3690C 0.1 Hz to 70 GHz
0.1 Hz to 500 GHz
5 ms Min: -120 dBm
(with step attenuator)
Max: +19 dBm
(10 GHz, std)
+26 dBm
(10 GHz, with high power opt.)
-108 dBc/Hz (typ.)
(40 GHz, 10 kHz offset)
