PSA Spectrum Analyzer

Agilent/E4440A

제품 상세정보
제조사 Agilent
모 델 E4440A
옵 션 BAC B78 226 B7J
액세서리
가 격 ₩11,500,000 (VAT 별도)

주요스펙
    - 3Hz~26.5GHz
    - Maximum Analysis Bandwidth : 80MHz
    - Bandwidth Options: 10MHz Standard, 40,80MHz
    - DANL@1GHz: -169dBm
    - Phase Noise@ 1GHz(10KHz offset) : -118dBc/Hz
    - Phase Noise@ 1GHz(1MHz offset) : -147dBc/Hz
    - Overall Amplitude Accuracy: +-0.19dB
    - TOI@1GHz (3rd Order Intercept): =19dBm
    - Maximun Dynamic Range 3rd Order@1GHz: 116 dB
    - Standard Attenuator Range: 70 dB
    - Standard Attenuator Step: 2dB
    - 1DS: RF internal preamplifier (100 kHz to 3 GHz)
    - 202: GSM w/ EDGE Requires B7J
    - 226: Phase noise
    - B7J: Digital demodulation hardware

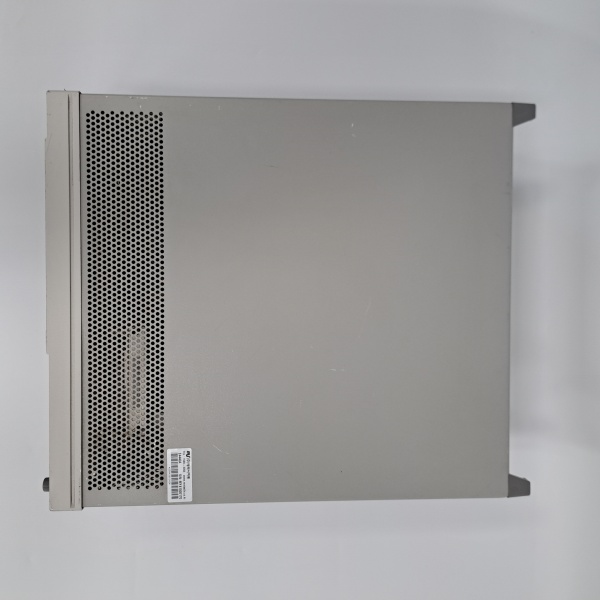

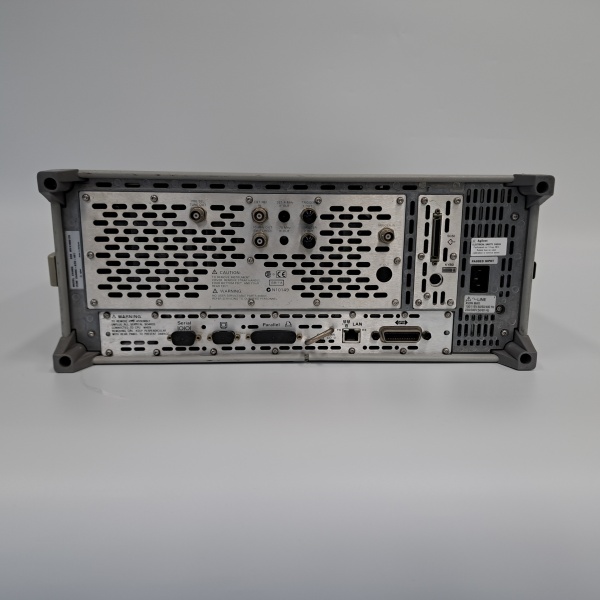

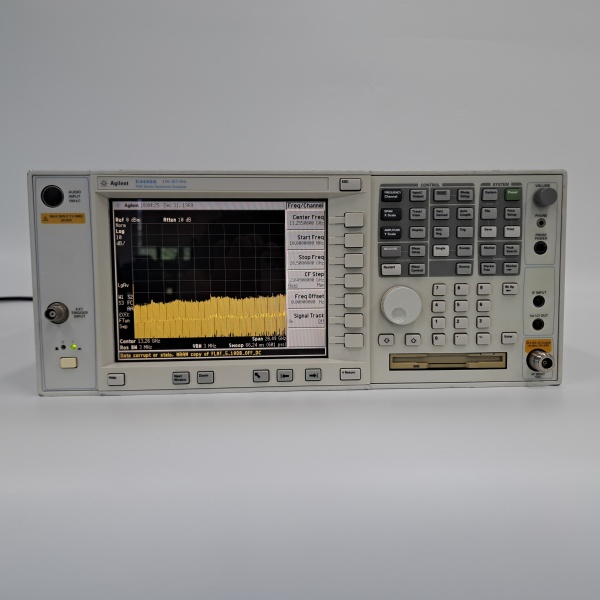

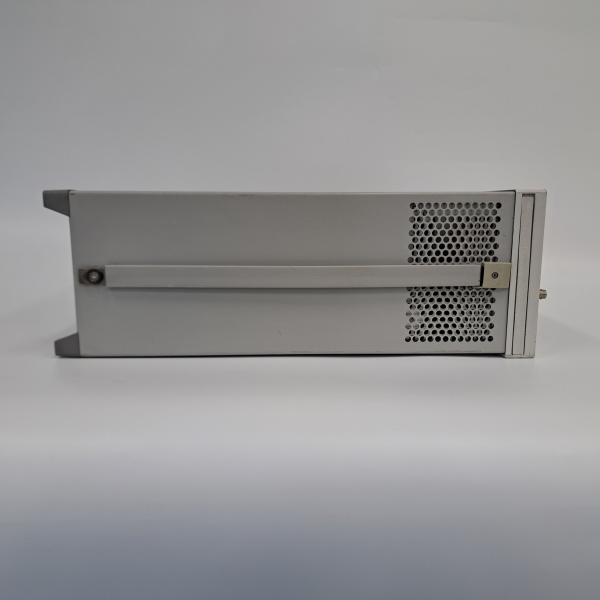

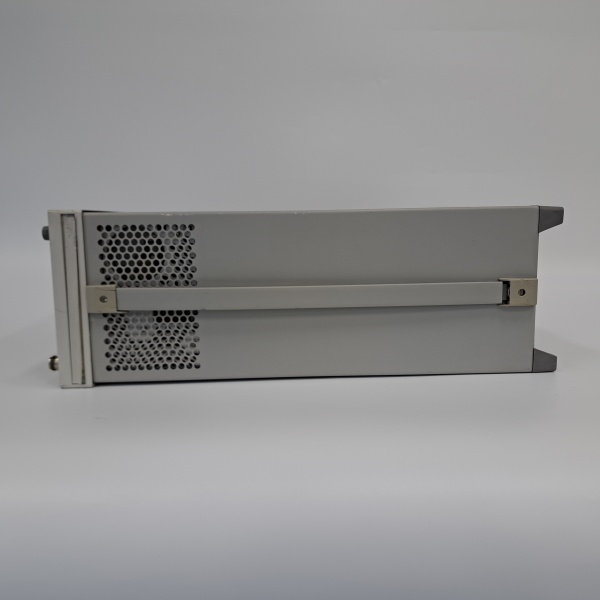

    본 제품의 실제 사진입니다.





자료실
제 목 파일 다운로드
[Agilent] PSA and ESA Series User’s&Programmer’s Reference Vol. 2 (영문) Download
[Agilent] PSA Series Basic Mode Guide (영문) Download
[Agilent] PSA and ESA Series User’s&Programmer’s Reference Vol. 2 (영문) Download
[Agilent] PSA Series User’s&Programmer’s Reference Vol. 1 (영문) Download
[애질런트(HP)] PSA&ESA Series Users and Programmers Reference (E) Download
[애질런트(HP)] PSA Series User's and Programmer's Reference (E) Download
PSA Series Spectrum Analyzers (Data Sheet) Download
