주요스펙

- Single channel GPS/SBAS L1 C/A and/or GLONASS L1 C/A and/or Galileo E1 signals
- Easily field upgradable to add GLONASS and/or Galileo to existing GSS6300
- GPIB (IEEE-488), USB or RS-232 control interfaces
- Equivalent GPS performance to Spirent’s proven GSS6100
- Alternative “instant start” continuous run mode
- Supplied with Spirent SimCHAN software
- Industry leading accuracy, fidelity and reliability
- A GSS6300 configured with GPS supports L1 SBAS messages
- Comprehensive remote command set for easy ATE integration
- Rack mount 2U chassis
- In-rack annual calibration
- Interactive run time control over power level, Doppler, PRN, GPS time and data message for each GNSS signal
- May be synchronized to external systems via 1PPS/Trigger, reference frequency input/output and 1PPS output

- 동작상태 : 보류 (테스트 프로그램 없음)

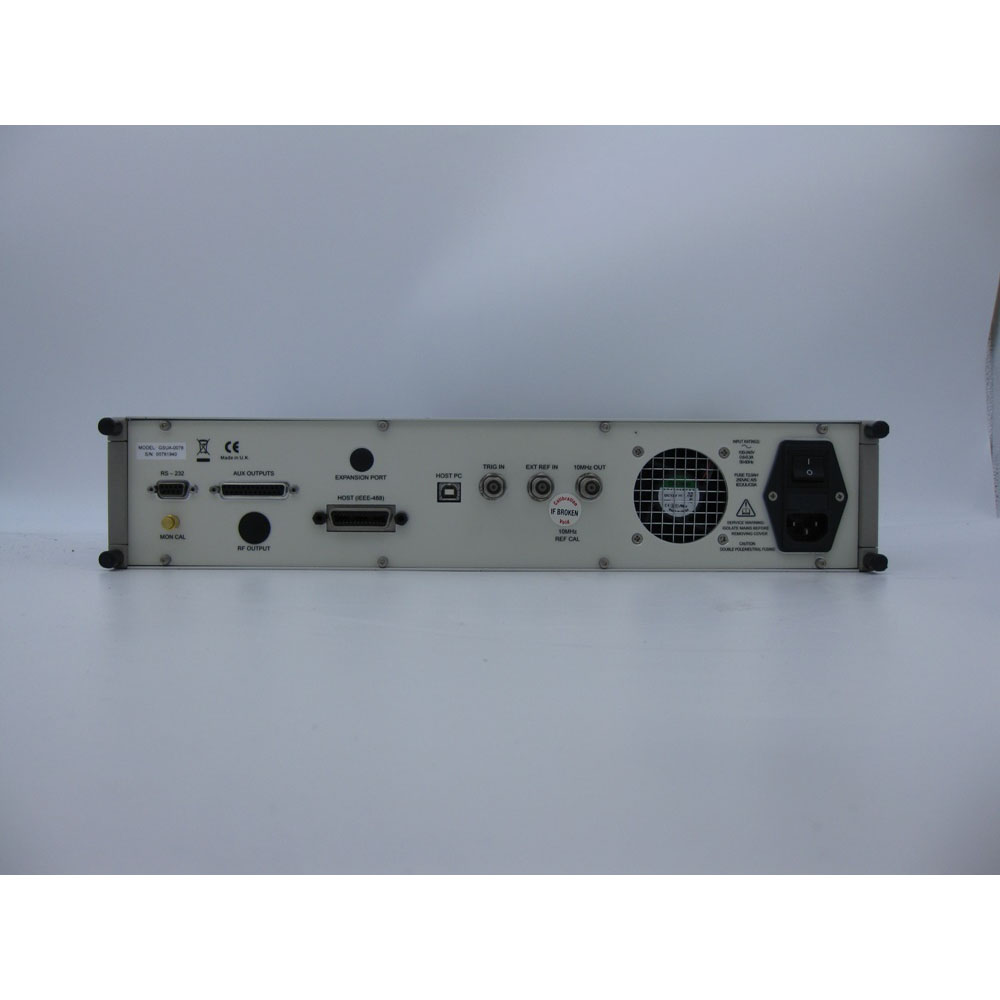

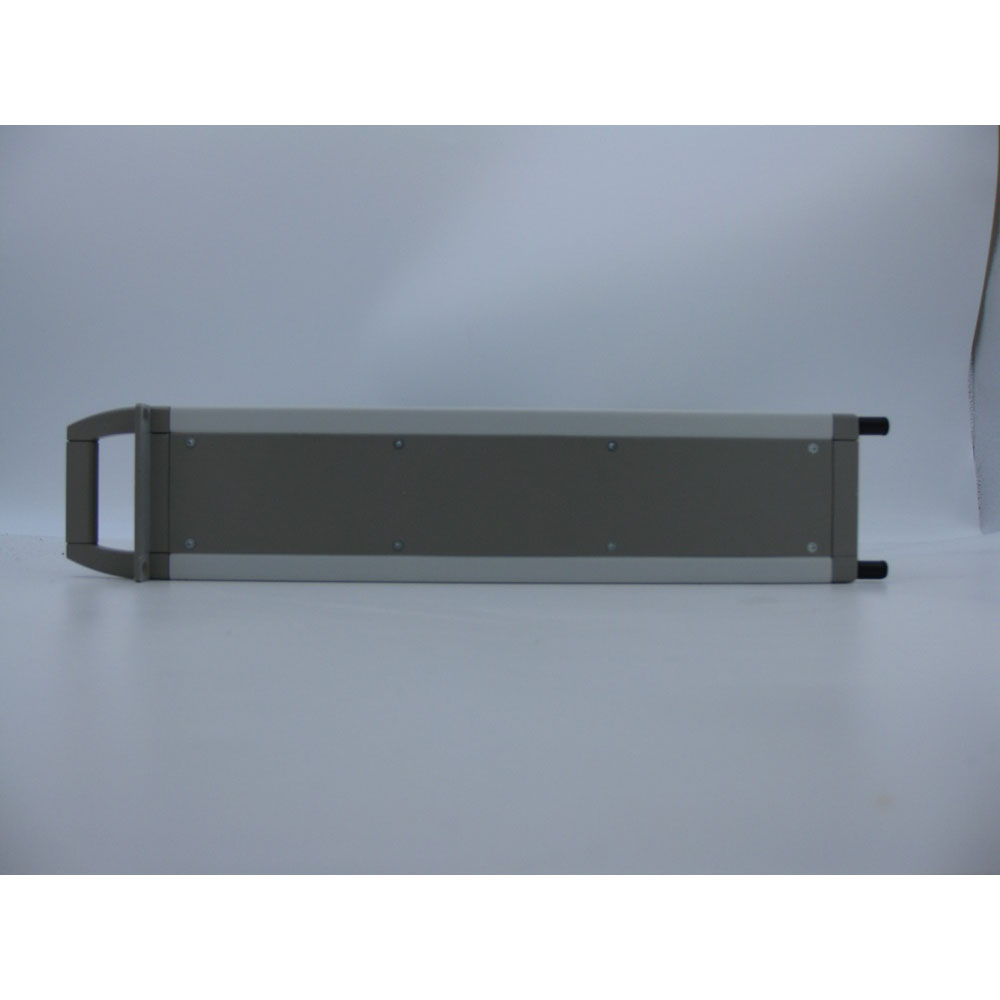

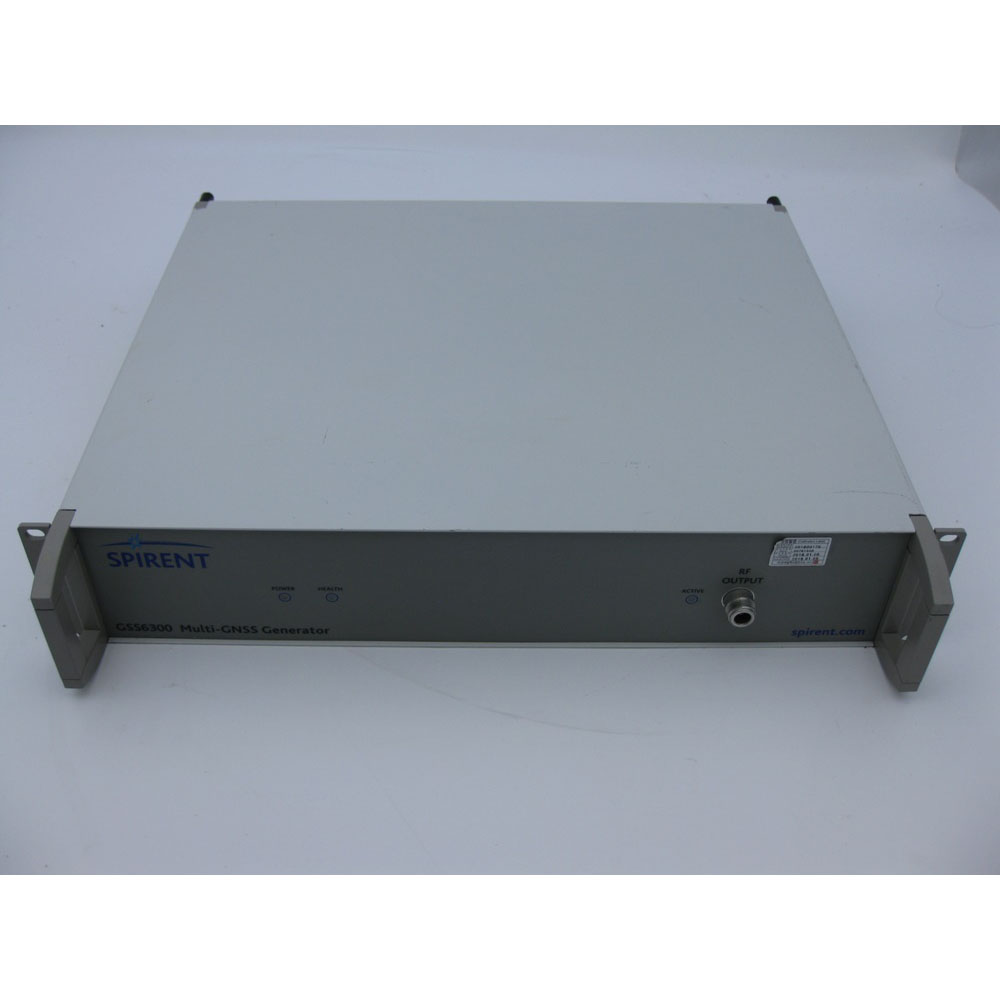

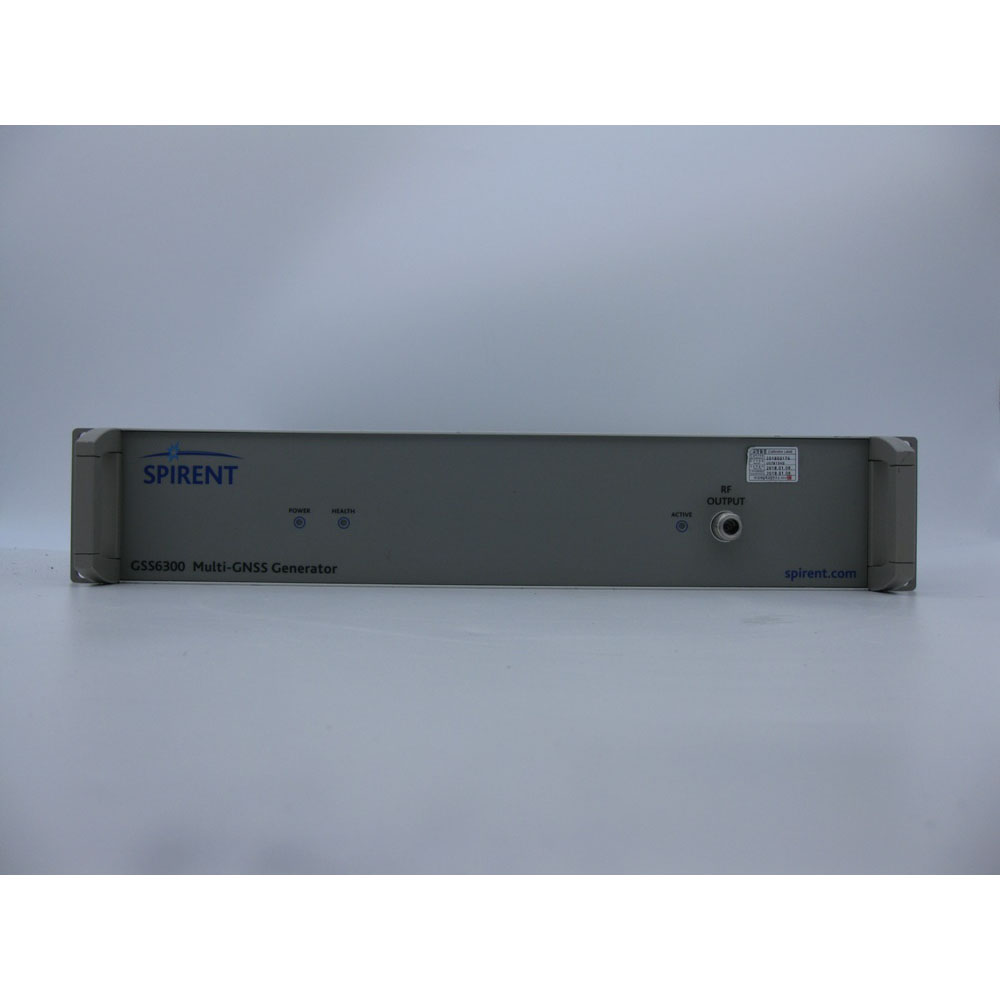

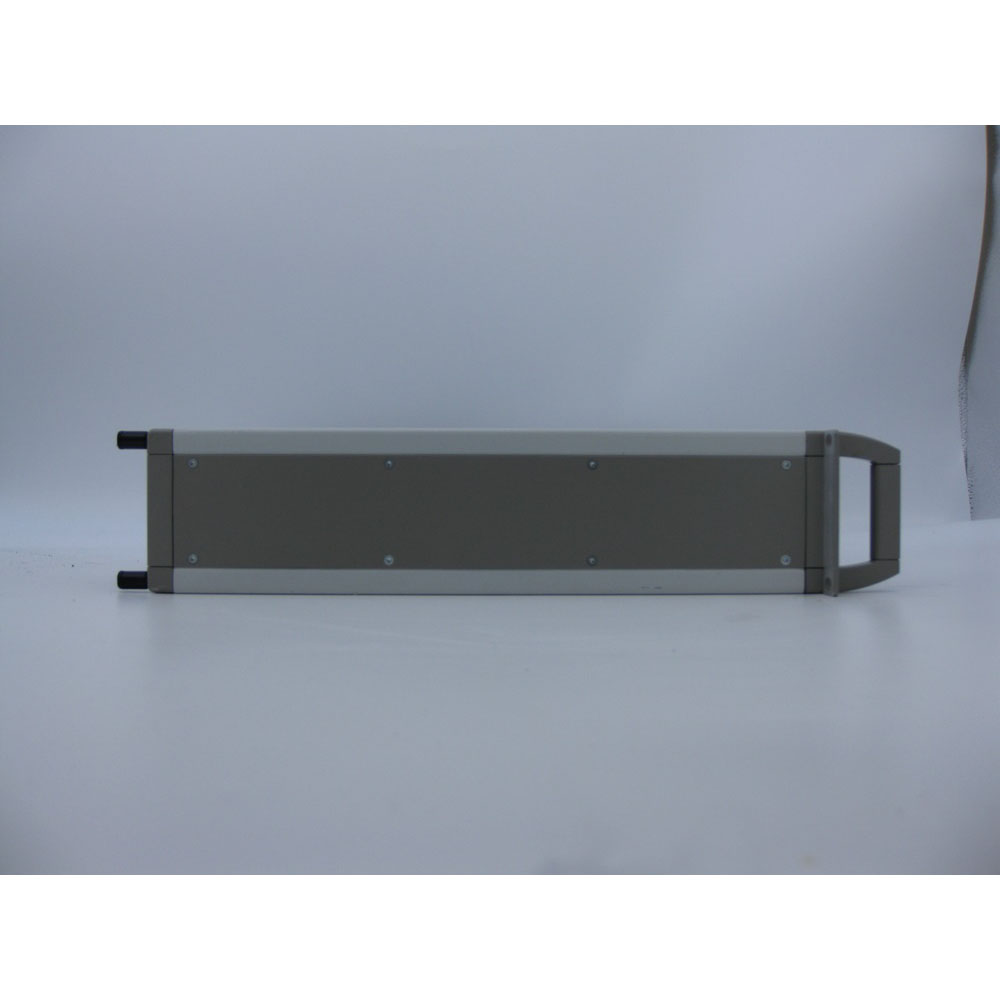

본 제품의 실제 사진입니다.
