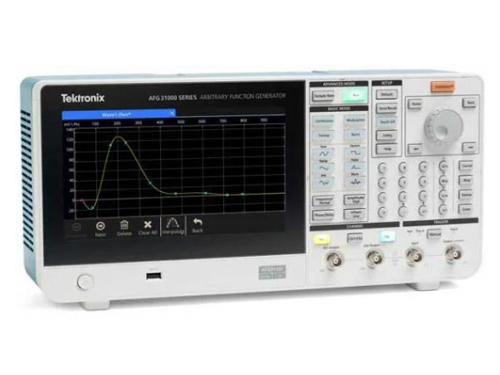

임의 함수발생기 AFG31000 시리즈
- • 1 or 2 channel models
- • Output amplitude range 1 mVP-P to 10`VP-P into 50`Ω loads
- • Basic (AFG) mode :
- - 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 250 MHz sine waveforms
- - 250 MSa/s, 1 GSa/s or 2 GSa/s sample rates
- - 14-bit vertical resolution
- - Built-in waveforms include sine, square, ramp, pulse, noise, and other frequently used waveforms
- - Sweep, Burst, and Modulation modes (AM, FM, PM, FSK, and PWM)
- • Advanced (Sequence) mode :
- - Continuous mode (optional Sequence, Triggered and Gated modes)
- - 16 Mpts arbitrary waveform memory on each channel (128 Mpts optional)
- - Up to 256 steps in sequence mode with loop, jump and wait events
- - Variable sampling clock 1 µSa/s to 2 GSa/s
제품 사양
| 모델 | Sine frequency range | Number of channels | 견적 |
|---|---|---|---|
| AFG31021 | 25 MHz | 1 | AFG31021 견적담기 |
| AFG31051 | 50 MHz | AFG31051 견적담기 | |
| AFG31101 | 100 MHz | AFG31101 견적담기 | |
| AFG31151 | 150 MHz | AFG31151 견적담기 | |
| AFG31251 | 250 MHz | AFG31251 견적담기 | |
| AFG31022 | 25 MHz | 2 | AFG31022 견적담기 |
| AFG31052 | 50 MHz | AFG31052 견적담기 | |
| AFG31102 | 100 MHz | AFG31102 견적담기 | |
| AFG31152 | 150 MHz | AFG31152 견적담기 | |
| AFG31252 | 250 MHz | AFG31252 견적담기 |
