> 메이커별제품 > Keysight > 오실로스코프 프로브

오실로스코프 오실로스코프 프로브

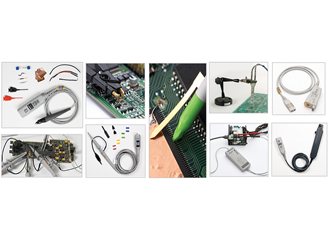

  • • 키사이트 InfiniiMax 고성능 프로브로 업계에서 가장 편평한 주파수
    　 응답과 가장 넓은 선택폭의 프로브 헤드 및 액세서리를 소지할 수 있습니다.
  • • 미세 피치 디바이스, 표면 실장 IC 및 DDR BGA 패키지와 같은 까다로운
    　 구성요소에도 안정적인 연결을 할 수 있습니다.
  • • 간단하고 비싸지 않은 패시브 프로브에서 최신 고주파수 인터포저에
    　 이르는 다양한 솔루션으로 어려운 프로빙 과제를 해결해보십시오.
프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
Hi-Z+ Passive Probing System
PP000xA Hi-Z+ Probes
Model Bandwidth Input Voltage Input Impedance Tip Type 견적
PP0001A 1 GHz 300 V CAT II 10 MΩ // 4.0 pF 5mm tip PP0001A 견적담기
PP0002A 800 MHz 1200 V CAT II 40 MΩ // 2.0 pF 5mm tip PP0002A 견적담기
PP0003A 1 GHz 30 V CAT II 10 MΩ // 4.0 pF MMCX Connector PP0003A 견적담기


프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
Passive Probes
General-Purpose Passive Probes
Model Bandwidth Attenuation Ratio Input Impedance1 Compensation Range2 Notes 견적
N2840A 50 MHz 10:1 10 MΩ // 11 pF 5 - 30 pF N2840A 견적담기
10074D 150 MHz 10:1 10 MΩ // 15 pF 9 - 17 pF 10074D 견적담기
N2841A 150 MHz 10:1 10 MΩ // 11 pF 5 - 30 pF Recommended for InfiniiVision 2000 X-Series N2841A 견적담기
N2871A 200 MHz 10:1 10 MΩ // 9.5 pF 10 - 25 pF Optimized for fine-pitch probing N2871A 견적담기
N2842A 300 MHz 10:1 10 MΩ // 11 pF 5 - 30 pF Recommended for InfiniiVision 2000 X-Series N2842A 견적담기
N2853A 350 MHz 10:1 10 MΩ // 11 pF 5 - 30 pF N2853A 견적담기
N2872A 350 MHz 10:1 10 MΩ // 9.5 pF 10 -25 pF Optimized for fine-pitch probing N2872A 견적담기
N7007A 400 MHz 10:1 10 MΩ // 16 pF 6 - 18 pF Extreme temperature probing (-40 to +85°C), 2 meter cable N7007A 견적담기
N2843A 500 MHz 10:1 10 MΩ // 11 pF 5 - 30 pF Recommended for InfiniiVision 3000 X-Series N2843A 견적담기
10073D 500 MHz 10:1 2.2 MΩ // 12 pF 6 - 15 pF 10073D 견적담기
N2873A 500 MHz 10:1 10 MΩ // 9.5 pF 10-25 pF Fine-pitch, recommended for Infiniium EXR/MXR/S-Series N2873A 견적담기
N2875A 500 MHz 20:1 20 MΩ // 5.6 pF 7 - 20 pF Optimized for fine-pitch, low-capacitive probing N2875A 견적담기
N2894A 700 MHz 10:1 10 MΩ // 9.5 pF 10 - 25 pF Fine-pitch, recommended for InfiniiVision 4000/6000 X-Series N2894A 견적담기
PP0002A 800 MHz variable 40 MΩ // 2.0 pF N/A 5 mm tip, 1200 V CAT II, requires PP0004A (AutoProbe 1) PP0002A 견적담기
PP0001A 1 GHz variable 10 MΩ // 4.0 pF N/A 5 mm tip, 300 V CAT II, requires PP0004A (AutoProbe 1) PP0001A 견적담기
PP0003A 1 GHz variable 10 MΩ // 4.0 pF N/A MMCX connector, 30 V CAT II, requires PP0004A (AutoProbe 1) PP0003A 견적담기
High-Sensitivity 1:1 Passive Probes
Model Bandwidth Attenuation Ratio Input Impedance1, 3 Compensation Range Notes 견적
10070D 20 MHz 1:1 1 MΩ // 70 pF + N/A Recommended for low-voltage measurements 10070D 견적담기
N2870A 35 MHz 1:1 1 MΩ // 39 pF + N/A Recommended for low-voltage measurements N2870A 견적담기
Switchable Passive Probes (1:1 // 10:1)
Model Bandwidth Attenuation Ratio Input Impedance1, 3 Compensation Range2 Notes 견적
N2142A 6 MHz 1:1 1 MΩ // 100 pF + N/A Low-cost 2-pack, recommended for InfiniiVision EDUX1000 X-Series N2142A 견적담기
70 MHz 10:1 10 MΩ // 15 pF + 15 - 30 pF
N2140A 6 MHz 1:1 1 MΩ // 100 pF + N/A Low-cost 2-pack, recommended for InfiniiVision EDUX1000 X-Series N2140A 견적담기
200 MHz 10:1 10 MΩ // 15 pF + 15 - 30 pF
N2889A 10 MHz 1:1 1 MΩ // 60 pF + N/A The most general-purpose passive probe N2889A 견적담기
350 MHz 10:1 10 MΩ // 11 pF + 10 - 35 pF
High-voltage Passive Probe (100:1)
Model Bandwidth Attenuation Ratio Input Impedance1 Compensation Range2 Notes 견적
10076C 500 MHz 100:1 66.7 MΩ // 3 pF + 6 - 18 pF High-voltage, low capacitive probing 10076C 견적담기
High-frequency/Low-Z Passive Probes (50-Ω terminated)
Model Bandwidth Attenuation Ratio Input Impedance4 Compensation Range Notes 견적
N2874A 1.5 GHz 10:1 500 Ω // 1.8 pF + N/A Low-cost, high-frequency probing at the cost of resistive loading N2874A 견적담기
N2876A 1.5 GHz 100:1 5 kΩ // 2.2 pF + N/A Low-cost, high-frequency probing at the cost of resistive loading N2876A 견적담기
TDR/TDT Probe
Model Bandwidth Type Input Impedance Tip Spacing
Compatible TDR/TDT Modules		 Notes 견적
N1021B 18 GHz Differential 100 Ω variable between 0.5mm-2.54mm
DCA-X N1055A & 54754A		 Designed for TDR applications, but also suitable as high bandwidth, passive probe for non-TDR applications N1021B 견적담기
1. Input impedance when terminated into oscilloscopes with 1-MΩ input terminations. For higher-bandwidth Infiniium oscilloscopes with 50-Ω input terminations only, the E2697A high impedance adapter can be purchased (includes 10073D 500-MHz passive probe) to provide a 1-MΩ input termination.
2. For proper probe compensation (flatness), the oscil loscope’s input capacitance must be within the specified compensation range of the probe.
3. Capacitance at the probe tip of 1:1 probes is the specified probe capacitance plus the capacitance of the oscilloscope when terminated into 1-MΩ.
4. Input impedance when terminated into oscilloscopes with 50-Ω input terminations. These probes are not compatible with Keysight’s InfiniiVision 1000 and 2000 X-Series oscilloscopes.


프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes < 10 GHz
Model Bandwidth Input Range Probe Offset Diff Input Impedance Attenuation Ratio Prob-to-scope Interface Power Source Oscilloscope Termination 견적
N2750A 1.5 GHz ±5 V ±15 V 100 kΩ/0.7 pF 2:1/10:11 AutoProbe1 Oscilloscope 50 Ω N2750A 견적담기
N2751A 3.5 GHz ±5 V ±15 V 100 kΩ/0.7 pF 2:1/10:11 AutoProbe1 Oscilloscope 50 Ω N2751A 견적담기
N2752A 6.0 GHz ±5 V ±15 V 100 kΩ/0.7 pF 2:1/10:11 AutoProbe1 Oscilloscope 50 Ω N2752A 견적담기
1130B2 1.5 GHz ±2.5 V ±12 V 50 kΩ/0.27 pF 10:1 AutoProbe1 Oscilloscope 50 Ω 1130B 견적담기
1131B2 3.5 GHz ±2.5 V ±12 V 50 kΩ/0.27 pF 10:1 AutoProbe1 Oscilloscope 50 Ω 1131B 견적담기
1132B2 6.0 GHz ±2.5 V ±12 V 50 kΩ/0.27 pF 10:1 AutoProbe1 Oscilloscope 50 Ω 1132B 견적담기
1134B2 7.0 GHz ±2.5 V ±12 V 50 kΩ/0.27 pF 10:1 AutoProbe1 Oscilloscope 50 Ω 1134B 견적담기
N2830A2,3 4 GHz ±2.5 V ±16 V 100 kΩ/0.32 pF 5:1/10:11 AutoProbe1 Oscilloscope 50 Ω N2830A 견적담기
N2831A2,3 8 GHz ±2.5 V ±16 V 100 kΩ/0.32 pF 5:1/10:11 AutoProbe1 Oscilloscope 50 Ω N2831A 견적담기
N7000A2 8 GHz ±2.5 V ±16 V 100 kΩ/0.32 pF 5:1/10:11 AutoProbe2 Oscilloscope 50 Ω N7000A 견적담기
1. Auto-selected based on V/division setting.
2. Requires differential probe head sold separately.
3. Not compatible with InfiniiVision X-Series oscilloscopes, but is compatible with the Infiniium UXR (1 mm & 1.85 mm models) with the cascaded use of the N5442A and N2852A adapters
Oscilloscope Compatibility for High-Frequency Differential Active Probes (<10 GHz)
Probe-to-scope Interface Oscilloscope Termination Compatible Oscilloscopes
BNC 50 Ω • InfiniiVision 3000A, 3000T, 4000, and 6000 X-Series
• Infiniium EXR, MXR, S-Series, 9000 Series
• Any vendor’s oscilloscope with a BNC input connection and a 50 Ω input impedance termination
AutoProbe1 50 Ω • InfiniiVision 3000A, 3000T, 4000, and 6000 X-Series (except N2830A and N2831A)
• Infiniium EXR, MXR, S-Series, 9000, and 90000A Series
• Infiniium UXR (3.5 mm models), V, Z, Q, and 90000X Series with the use of the N5442A adapter
AutoProbe2 50 Ω • Infiniium UXR (3.5 mm models), V, Z, Q, and 90000X Series
AutoProbe Interface
Keysight’s AutoProbe interface provides the following:
• DC voltage to power active probe circuitry
• Automatic detection of probe attenuation
• Automatic control of selectable probe attenuation on some probes
• Probe DC offset on many probes


프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
High-Frequency Differential Active Probes ≥ 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz
Model Bandwidth Impedance Profile1 Diff Input Impedance Probe Noise2 Probe-to-Scope Interface InfiniiMode3 Input Range Probe Offset Attenuation Range4 견적
N2803A 30 GHz RCRC 100 kΩ /0.32 pF 23.9 nV/rt(Hz) AutoProbe2 No ±1.25 V ±16 V 6:1 N2803A 견적담기
MX0025A 25 GHz RC 50 kΩ/0.17 pF 25.0 nV/rt(Hz) AutoProbe2 Yes ±2.5 V ±16 V 1:1/4:1/8:1 MX0025A 견적담기
MX0023A 25 GHz RC 50 kΩ/0.17 pF 25.0 nV/rt(Hz) AutoProbe2 No ±1.25 V ±16 V 1:1/4:1 MX0023A 견적담기
N2802A 25 GHz RCRC 100 kΩ /0.32 pF 23.9 nV/rt(Hz) AutoProbe2 No ±1.25 V ±16 V 6:1 N2802A 견적담기
MX0024A 20 GHz RC 50 kΩ/0.17 pF 25.0 nV/rt(Hz) AutoProbe2 Yes ±2.5 V ±16 V 1:1/4:1/8:1 MX0024A 견적담기
N2801A 20 GHz RCRC 100 kΩ /0.32 pF 23.9 nV/rt(Hz) AutoProbe2 No ±1.25 V ±16 V 6:1 N2801A 견적담기
N7003A 20 GHz RCRC 100 kΩ /0.32 pF 33.5 nV/rt(Hz) AutoProbe2 Yes ±2.5 V ±16 V 5:1/10:1 N7003A 견적담기
MX0022A 16 GHz RC 50 kΩ/0.17 pF 25.0 nV/rt(Hz) AutoProbe2 Yes ±2.5 V ±16 V 1:1/4:1/8:1 MX0022A 견적담기
N7002A 16 GHz RCRC 100 kΩ /0.32 pF 33.5 nV/rt(Hz) AutoProbe2 Yes ±2.5 V ±16 V 5:1/10:1 N7002A 견적담기
MX0021A 13 GHz RC 50 kΩ/0.17 pF 25.0 nV/rt(Hz) AutoProbe2 Yes ±2.5 V ±16 V 1:1/4:1/8:1 MX0021A 견적담기
N7001A 13 GHz RCRC 100 kΩ /0.32 pF 33.5 nV/rt(Hz) AutoProbe2 Yes ±2.5 V ±16 V 5:1/10:1 N7001A 견적담기
N2832A 13 GHz RCRC 100 kΩ /0.32 pF 33.5 nV/rt(Hz) AutoProbe1 Yes ±2.5 V ±16 V 5:1/10:1 N2832A 견적담기
1169B 13 GHz RC 50 kΩ /0.21 pF 25.0 nV/rt(Hz) AutoProbe1 No ±1.65 V ±16 V 3.45:1 1169B 견적담기
MX0020A 10 GHz RC 50 kΩ/0.17 pF 25.0 nV/rt(Hz) AutoProbe2 Yes ±2.5 V ±16 V 1:1/4:1/8:1 MX0020A 견적담기
1168B 10 GHz RC 50 kΩ /0.21 pF 25.0 nV/rt(Hz) AutoProbe1 No ±1.65 V ±16 V 3.45:1 1168B 견적담기
1. Input Impedance Profile: RCRC architecture is the best choice for signals with low source impedance and RC architecture is the best choice for measuring signals that transition to low power modes because it has lower loading.
2. Probe noise listed is the most common setup. Probe noise can vary with multiple factors such as attenuation ratio, probe head, and probe mode.
3. Measure differential, single-ended, and common mode signals.
4. Auto selected based on volts/division (all modes).
Oscilloscope Compatibility for High-Frequency Differential Active Probes ≥ 10 GHz
Probe-to-scope Interface Compatible Oscilloscopes
AutoProbe1 • Infiniium MXR, EXR, S-Series, 9000, and 90000A Series
• Infiniium UXR (3.5 mm models), V, Z, Q, and 90000X Series with the use of the N5442A adapter
• Infiniium UXR (1 mm & 1.85 mm models) with the cascaded use of the N5442A & N2852A adapters
AutoProbe2 • Infiniium UXR (3.5 mm models), V, Z, Q, and 90000X Series
• Infiniium UXR (1 mm & 1.85 mm models) with the use of the N2852A adapter
• Infiniium N1000A and 86100D DCA-X with the use of the N5477A adapter (only for N2801A/02A/03A)


프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
High-Voltage Differential Active Probes
High-Voltage Differential Active Probes
Model Bandwidth Input Range Diff Input Impedance Attenuation Ratio Probe-to-Scope Interface Power Source Oscilloscope Termination 견적
DP0010A 250 MHz ±42 V 1.7 MΩ/0.9 pF 17:1/85:1 AutoProbe1 Oscilloscope 50 Ω DP0010A 견적담기
DP0011A 500 MHz ±42 V 1.7 MΩ/0.9 pF 17:1/85:1 AutoProbe1 Oscilloscope 50 Ω DP0011A 견적담기
DP0012A 1.0 GHz ±42 V 1.7 MΩ/0.9 pF 17:1/85:1 AutoProbe1 Oscilloscope 50 Ω DP0012A 견적담기
DP0013A 1.7 GHz ±42 V 1.7 MΩ/0.9 pF 17:1/85:1 AutoProbe1 Oscilloscope 50 Ω DP0013A 견적담기
N2805A 200 MHz ±100 V 4 MΩ/4.0 pF 50:1 AutoProbe1 Oscilloscope 50 Ω N2805A 견적담기
N2804A 300 MHz ±300 V 8 MΩ/10 pF 100:1 AutoProbe1 Oscilloscope 50 Ω N2804A 견적담기
N2791A 25 MHz ±700 V 8 MΩ/3.5 pF 10:1/100:1 BNC USB cable or battery 1 MΩ N2791A 견적담기
N2790A 100 MHz ±1400 V 1 MΩ/3.5 pF 50:1/500:1 AutoProbe1 Oscilloscope 1 MΩ N2790A 견적담기
DP0001A 400 MHz ±2000 V 10 MΩ/2.0 pF 50:1/100:1/250:1/500:1 AutoProbe1 Oscilloscope 50 Ω DP0001A 견적담기
N2891A 70 MHz ±7000 V 100 MΩ/5.0 pF 100:1/1000:1 BNC USB cable or battery 1 MΩ N2891A 견적담기
Oscilloscope Compatibility for High-Voltage Differential Active Probes
Probe-to-scope Interface Oscilloscope Termination Compatible Oscilloscopes
BNC 1 MΩ • InfiniiVision 1000, 2000, 3000A, 3000T, 4000, and 6000 X-Series
• Infiniium EXR, MXR, S-Series, 9000 Series
• Any vendor’s oscilloscope with a BNC input connection and a 1 MΩ input impedance termination
BNC 50 Ω • InfiniiVision 3000A, 3000T, 4000, and 6000 X-Series
• Infiniium EXR, MXR, S-Series, 9000 and 90000A Series
• Any vendor’s oscilloscope with a BNC input connection and a 50 Ω input impedance termination
AutoProbe11 50 Ω • InfiniiVision 3000A1, 3000T, 4000, and 6000 X-Series
• Infiniium EXR, MXR, S-Series, 9000 and 90000A Series
• Infiniium UXR (3.5 mm models), V, Z, Q, and 90000X Series with the use of the N5442A adapter
• Infiniium UXR (1 mm & 1.85 mm models) with the cascaded use of the N5442A & N2852A adapters
1. DP0001A is not compatible with the InfiniiVision 3000A X-Series oscilloscopes.
AutoProbe1 Interface
Keysight’s AutoProbe1 interface provides the following:
• DC voltage to power active probe circuitry
• Automatic detection of probe attenuation
• Automatic control of selectable probe attenuation on some probes
• Probe DC offset on many probes


프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
Single-Ended Active Probes
Single-Ended Active Probes
Model Bandwidth Input Range Probe Offset Input Impedance Attenuation Ratio Probe-to-scope Interface Notes 견적
N2795A 1 GHz ±8 V ±8 V 1 MΩ/1.0 pF 10:1 AutoProbe1 N2795A 견적담기
N2797A 1.5 GHz ±8 V ±12 V 1 MΩ/1.0 pF 10:1 AutoProbe1 Extreme Temp. (-40 to +85° C), 2 meter long cable N2797A 견적담기
N2796A 2 GHz ±8 V ±12 V 1 MΩ/1.0 pF 10:1 AutoProbe1 N2796A 견적담기
1130B1 1.5 GHz ±2.5 V ±12 V 25 kΩ/0.44 pF 10:1 AutoProbe1 1130B 견적담기
1131B1 3.5 GHz ±2.5 V ±12 V 25 kΩ/0.44 pF 10:1 AutoProbe1 1131B 견적담기
1132B1 5.0 GHz ±2.5 V ±12 V 25 kΩ/0.44 pF 10:1 AutoProbe1 1132B 견적담기
1134B1 7.0 GHz ±2.5 V ±12 V 25 kΩ/0.44 pF 10:1 AutoProbe1 1134B 견적담기
1. Single-ended and differential probe. Requires probe head sold separately.
Oscilloscope Compatibility for Single-Ended Active Probes
Probe-to-scope Interface Compatible Oscilloscopes
AutoProbe1 • InfiniiVision 3000A, 3000T, 4000, and 6000 X-Series
• Infiniium EXR, MXR, S-Series, 9000, and 90000A Series
• Infiniium UXR (3.5 mm models), V, Z, Q, and 90000X Series with the N5442A adapter
• Infiniium UXR (1 mm & 1.85 mm models) with the cascaded use of the N5442A & N2852A adapters (only for N2795A/96A/97A, not for 1130B/31B/32B/34B)
AutoProbe1 Interface
Keysight’s AutoProbe1 interface provides the following:
• DC voltage to power active probe circuitry
• Automatic detection of probe attenuation
• Automatic control of selectable probe attenuation on some probes
• Probe DC offset on many probes


프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
Power Rail Probes
Power Rail Probes
Model Bandwidth Input Range Probe Offset Input Impedance Attenuation Ratio Probe-to-scope Interface 견적
N7020A 2 GHz ±850 mV1 ±24 V 50 kΩ 1.1:1 AutoProbe1 N7020A 견적담기
N7024A 6 GHz ±600 mV1 ±15 V 50 kΩ 1.3:1 AutoProbe1 N7024A 견적담기
1. Measurement range about offset level.
Oscilloscope Compatibility for Power Rail Probes
Model Compatible Oscilloscopes
N7020A • InfiniiVision 3000A, 3000T, 4000, and 6000 X-Series oscilloscopes.
• Infiniium EXR, MXR, S-Series, and 9000 Series oscilloscopes.
N7024A • Infiniium EXR, MXR, S-Series, 9000 Series, and 90000A Series oscilloscopes.
• Infiniium UXR-Series, V-Series, Z-Series, 90000Q Series, and 90000X Series with the use of the N5442A adapter.
AutoProbe1 Interface
Keysight’s AutoProbe1 interface provides the following:
• DC voltage to power active probe circuitry
• Automatic detection of probe attenuation
• Automatic control of selectable probe attenuation on some probes
• Probe DC offset on many probes


프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
Current Probes
AC/DC Hall-Effect (Clamp-On) Current Probes
Model Bandwidth Max Current Conversion Factor (Attenuation) Min Scope Vertical Scale Probe-to-Scope Interface Power Source 견적
N7026A 150 MHz 40 A-Pk1, 30 A-RMS1 1 V/A (1:1), 0.2 V/A (5:1)2 1 mA/div AutoProbe1 Oscilloscope DN7026A 견적담기
N2893A 100 MHz 30 A-Pk3, 24 A-RMS3 0.1 V/A (10:1) 10 mA/div AutoProbe1 Oscilloscope N2893A 견적담기
N2783B 100 MHz 50 A-Pk, 30 A-RMS 0.1 V/A (10:1) 10 mA/div BNC N2779A N2783B 견적담기
1147B 50 MHz 30 A-Pk3, 24 A-RMS3 0.1 V/A (10:1) 10 mA/div AutoProbe1 Oscilloscope 1147B 견적담기
N2782B 50 MHz 50 A-Pk, 30 A-RMS 0.1 V/A (10:1) 10 mA/div BNC N2779A N2782B 견적담기
N2781B 10 MHz 300 A-Pk, 150 A-RMS 0.01 V/A (100:1) 100 mA/div BNC N2779A N2781B 견적담기
N2780B 2 MHz 700 A-Pk, 500 A-RMS 0.01 V/A (100:1) 100 mA/div BNC N2779A N2780B 견적담기
1146B 100 kHz 100 A-Pk, 100 A-RMS 0.1 V/A (10:1), 0.01 V/A (100:1)4 10 mA/div BNC 9 V Battery 1146B 견적담기
AC-Only Rogowski Current Probes
Model Bandwidth Max Current Conversion Factor (Attenuation) Probe-to-Scope Interface Power Source 견적
N7042A 9.2 Hz- 30 MHz 300 A-Pk 0.02 V/A (50:1) BNC AC power adapter or 4x AA batteries N7042A 견적담기
N7041A 12 Hz - 30 MHz 600 A-Pk 0.01 V/A (100:1) BNC AC power adapter or 4x AA batteries N7041A 견적담기
N7040A 3 Hz - 23 MHz 3000 A-Pk 0.002 V/A (500:1) BNC AC power adapter or 4x AA batteries N7040A 견적담기
High-Sensitivity AC/DC R-Shunt Current Probes
Model Bandwidth Current Range5 Gain Channels Probe Heads (Standard) Probe-to-Scope Interface Power Source 견적
N2820A Zoom-out: 3 MHz
Zoom-in: 500 kHz		 Zoom-out: 5 A
Zoom-in: 50 µ A 		Zoom-out: 1.97
Zoom-in: 300		 2 20 mΩ, 100 mΩ, User-defined AutoProbe1 Oscilloscope N2820A 견적담기
N2821A Zoom-out: 3 MHz
Zoom-in: 500 kHz		 Zoom-out: 5 A
Zoom-in: 50 µ A 		Zoom-out: 1.97
Zoom-in: 300		 1 20 mΩ, 100 mΩ, User-defined AutoProbe1 Oscilloscope N2821A 견적담기
1. When using a power adapter booster (standard). 15 A-Pk, 5 V-RMS without oscilloscope-provided power only. An MXR/EXR enables max current range without using the power adapter.
2. Auto-selected based on Amps/division setting.
3. The maximum number of current probes supported by InfiniiVision oscilloscopes is limited depending on the oscilloscope. Infiniium oscilloscopes have no limitations.
4. Manually selectable.
5. A wider input range is possible when using the user-defined head and Rsense.
Oscilloscope Compatibility for Current Probes
Probe-to-scope Interface Compatible Oscilloscopes
BNC • InfiniiVision 1000, 2000, 3000A, 3000T, 4000, and 6000 X-Series
• Infiniium EXR, MXR, S-Series, 9000, and 90000A Series
• Any vendor’s oscilloscope with a BNC input connection and a 1 MΩ input impedance termination
AutoProbe1 • InfiniiVision 3000A, 3000T, 4000, and 6000 X-Series
• Infiniium EXR, MXR, S-Series, and 9000 and 90000A Series
• Infiniium UXR (3.5 mm models), V, Z, Q, and 90000X Series with the use of the N5449A adapter
• Infiniium UXR (1 mm & 1.85 mm models) with the cascaded use of the N5449A & N2852A adapters (only for 1147B and N2893A, not for N7026A, N2820A/21A)
AutoProbe1 Interface
Keysight’s AutoProbe1 interface provides the following:
• DC voltage to power active probe circuitry
• Automatic detection of probe attenuation
• Automatic control of selectable probe attenuation on some probes
• Probe DC offset on many probes


프로브 바로가기
Hi-Z+ Passive Probing System                Passive Probes                High-Frequency Differential Active Probes < 10 GHz
High-Frequency Differential Active Probes ≥ 10 GHz                High-Voltage Differential Active Probes
Single-Ended Active Probes                Power Rail Probes                Current Probes                Optical Probes
Optical Probes
Optical Probes
Model Bandwidth Inputs Input Connector Type Wavelength Range Required Infiniium Baseline Software Output Connector Type Compatible Oscilloscopes 견적
N7004A 33 GHz Single-mode & Multi-mode FC/PC to 50/125 um fiber 750 nm to 1650 nm Version 05.70 or higher 2.92 mm female UXR (3.5 mm models), V, Z, Q, and 90000X N7004A 견적담기
N7005A 60 GHz Single-mode FC/PC to 9/125 um fiber 1250 nm to 1600 nm Version 10.25 or higher 1.85 male UXR (1 mm & 1.85 mm models) N7005A 견적담기
자료실
제 목 파일 다운로드
등록된 자료가 없습니다.
