오실로스코프 InfiniiVision 1000 X-시리즈
- • 50 MHz ~ 70 MHz, 100 MHz, 200 MHz
- • 50,000 wfms/sec의 업데이트 속도로 더 많은 신호 세부사항 확인
- • 마스크, 수학, FFT, 아날로그 버스, 프로토콜 트리거링/디코드를 포함한 전문적 측정 수행
- • 오실로스코프에 내장 도움말 및 교육용 신호가 있어 사용 방법을 빠르게 알 수 있음
제품 사양
| 제품 | DSOX1202A 70/100/200 MHz, 2 Ch |
DSOX1202G 70/100 MHz, 2 Ch with Function Generator |
DSOX1204A 70/100/200 MHz, 4 Ch |
DSOX1204G 70/100/200 MHz, 4 Ch with Function Generator |
|---|---|---|---|---|

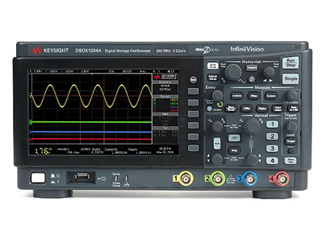

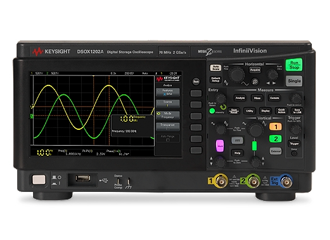

| 제품 사진 |  |
|
||
| Analog Channels | 2 | 4 | ||
| External trigger | Front panel input (Displayable as a 3rd digital channel) |
Back panel input (not displayed)) |
||
| Bandwidth | 70 MHz (base) | 70 MHz (base) | ||
| 100 MHz (Opt. D1202BW1A) 200 MHz (Opt. D1202BW2A) |
100 MHz (Opt. D1200BW1A) 200 MHz (Opt. D1200BW2A) |
|||
| Max. Sample Rate | 2 GSa/s | |||
| Max. Memory Depth | 2 Mpts | |||
| Segmented Memory | Standard | |||
| Mask/limit testing | Standard | |||
| WaveGen | N/A | 20-MHz function generator (includes Bode plot test) |
N/A | 20-MHz function generator (includes Bode plot test) |
| Serial protocol analysis | Standard: – I²C, SPI, UART/RS-232, CAN, LIN |
|||
| Waveform math | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter | |||
| Display | 7-inch TFT LCD WVGA | |||
| Waveform update rate | 200,000 waveforms per second | |||
| Connectivity | USB 2.0 (host and device) LAN |
|||
| 제품 | EDUX1052A 50 MHz, 2 Ch |
EDUX1052G 50 MHz, 2 Ch with Function Generator |
|---|---|---|

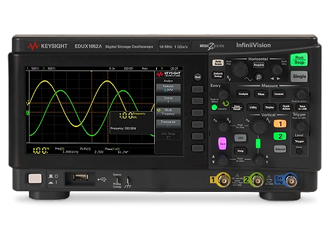

| 제품 사진 |  |
|
| Analog Channels | 2 + 1 (ext. trigger viewable as digital channel) | |
| External trigger | 1 (or 3rd digital channel) | |
| Bandwidth | 50 MHz | |
| Max. Sample Rate | 1 GSa/s | |
| Max. Memory Depth | 200 kpts | |
| WaveGen | N/A | 20-MHz function generator (includes Bode plot test) |
| Serial protocol analysis | Standard: – I²C, UART/RS-232 |
|
| Waveform math | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter | |
| Display | 7-inch TFT LCD WVGA | |
| Waveform update rate | 100,000 waveforms per second | |
| Connectivity | USB 2.0 (host and device) | |
옵션&액세서리
| Bandwidth Upgrades | |
|---|---|
| Description | Model number |
|
Upgrade bandwidth from 70 to 100 MHz upgrade |
D1200BW1A |
|
Upgrade bandwidth from 70 to 200 MHz upgrade |
D1200BW2A |
|
Upgrade bandwidth from 100 to 200 MHz upgrade |
D1200BW3A |
|
Upgrade bandwidth from 70 to 100 MHz upgrade |
D1202BW1A |
|
Upgrade bandwidth from 70 to 200 MHz upgrade |
D1202BW2A |
|
Upgrade bandwidth from 100 to 200 MHz upgrade |
D1202BW3A |
| Probes and Accessories | |
|---|---|
| Description | Model number |
| 1:1, 10:1 switchable 75 MHz (2 probes included standard with EDUX1052A/G) |
N2142A |
1:1, 10:1 switchable 200 MHz |
N2140A |
| Soft carrying case for 1000 X-Series oscilloscopes | N2738A |
| Rackmount kit for 1000 X-Series oscilloscopes | N2133A |
| BenchVue oscilloscope application | BV0004B |
| 23 MHz, 3 kA, AC current probe | N7040A |
| 30 MHz, 600A, AC current probe | N7041A |
| 30 MHz, 300A, AC current probe | N7042A |
| 10:1, 300 MHz passive probe | N2842A |
| 1:1, 10:1 switchable 350 MHz passive probe | N2889A |
| 1:1, 20 MHz passive probe | 10070D |
| 1:1, 35 MHz passive probe | N2870A |
| 10:1 400 MHz extreme temperature passive probe | N7007A |
| 100:1 500 MHz 3.7 KV high voltage passive pr | 10076C |
| 25 MHz, 10:1, 100:1 switchable high voltage up to ± 700V | N2791A |
| 70 MHz, 100:1, 1000:1 switchable high voltage up to ± 700 | N2891A |
| 100 kHz, 100A, AC/DC current probe | 1146B |
| 2 MHz, 500A, AC/DC current probe (with N2779A power supply) | N2780B |
| 10 MHz, 150A, AC/DC current probe (with N2779A power supply) | N2781B |
| 50 MHz, 30A, AC/DC current probe (with N2779A power supply) | N2782B |
| 100 MHz, 30A, AC/DC current probe (with N2779A power supply) | N2783B |
