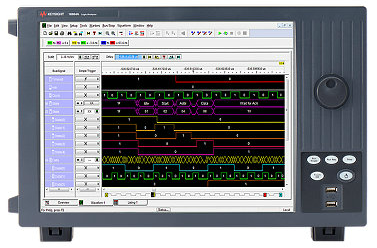

로직 분석기 16860 시리즈
- • High-speed state and timing with deep memory
– Capture the most system activity (up to 128 Mb) at the highest
resolution to identify the root cause of a problem and symptom
widely separated in time - • Signal integrity
– Quickly identify problem signals with simultaneous eye diagrams
on all channels - • Probing and application support
– Customize a system for your specific needs with a comprehensive
set of probing options and application-specific software - • Upgradable
– Purchase the capability you need now, then upgrade as your needs evolve
제품 사양
| 모델명 | 채널 | 타이밍 줌 | 최대 타이밍 속도 (Half / Full 채널) |
Max. State Speed Max. Data Rate |
최대 메모리 | 견적 |
|---|---|---|---|---|---|---|
| 16864A | 136 | 12.5 GHz | 2.5 GHz / 5 GHz | 700 MHz, 1400 Mb/s | 128 M | 16864A 견적담기 |
| 16863A | 102 | 12.5 GHz | 2.5 GHz / 5 GHz | 700 MHz, 1400 Mb/s | 128 M | 16863A 견적담기 |
| 16862A | 68 | 12.5 GHz | 5 GHz conventional / 12.5 GHz timing zoom | 700 MHz, 1400 Mb/s | 128 M | 16862A 견적담기 |
| 16861A | 34 | 12.5 GHz | 5 GHz conventional / 12.5 GHz timing zoom | 700 MHz, 1400 Mb/s | 128 M | 16861A 견적담기 |
