EDU34450A
> 메이커별제품 > Keysight > 디지털 멀티미터(DMM)
Smart Bench Essentials 디지털 멀티미터(DMM)

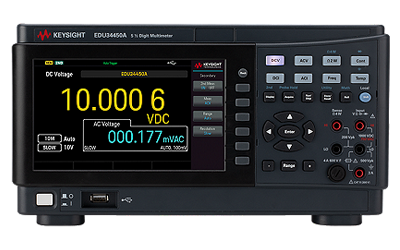

EDU34450A
- • 온도, 커패시턴스를 포함한 11가지 측정 기능
- • Signature 7-inch dual-measurement color display
- • Fast reading rate of up to 110 readings/s for speed-critical measurements
- • 5,000 points logging memory for recording more data and perform analysis
- • Standard USB and LAN for flexible PC connectivity
- • USB flash drive support to copy / load configuration for repeated test setup
- • Includes PathWave BenchVue DMM software for remote control and data logging
제품 사양
| 제품 사양 |
EDU34450A |
| Digits of resolution |
5½ |
| 1-year DCV accuracy |
0.015% |
| Max. reading rate |
100 readings/s |
| Memory |
5000 points |
| Display |
7" color display |
| Connectivity |
USB and LAN |
| Measurement |
| DCV |
100 mV to 1000 V |
| ACV |
100 mV to 750 |
| DCI, ACI |
10 mA to 3 A |
| 2- and 4-wire resistance |
100 ohm to 100 Mohm |
| Continuity, diode |
Yes, 1 V |
| Frequency |
20 Hz to 300 kHz |
| Temperature |
Thermistor |
| Capacitance |
1 nF to 10 mF |
| 견적 담기 |
EDU34450A 견적담기 |
옵션 & 액세서리
| Description |
Model number |
| GPIB connectivity upgrade |
3445GPBU |
| Instrument stacking kit |
EDU190A |
| Test lead set |
34138A |
| Thermistor temperature probe |
E2308A |
| 30 A current shunt |
34330A |
| PathWave BenchVue Digital Multimeter App |
BV0001B |
EDU 시리즈 (Smart Bench Essentials)
| 모델을 클릭하시면 해당 제품을 상세히 보실 수 있습니다. |
| Description |
Model number |
| Waveform Generator, 20 MHz, 1 Ch |
EDU33211A |
| Waveform Generator, 20 MHz, 2 Ch |
EDU33212A |
| Digital multimeter, 5.5 digit |
EDU34450A |
| 90 W DC DC Power Supply, Triple-output, 6 V, 5 A, and 2x 30 V, 1 A, LAN, USB |
EDU36311A |
| Oscilloscope, 50 MHz, 2Ch |
EDUX1052A |
| Oscilloscope, 50 MHz, 2Ch, With Function Generator |
EDUX1052G |
| 제 목 |
파일 다운로드 |
| [동영상] 키사이트 스마트 벤치 에센셜 시리즈 살펴보기 |
Video |
| [키사이트] EDU34450A Digital Multimeter 사용자 매뉴얼 |
Video |
| [키사이트] EDU34450A Digital Multimeter 제품 사양서 |
Download |
| [키사이트] EDU34450A Digital Multimeter Fact Sheet |
Download |
