다기능 스위치/측정 메인프레임 및 모델 34980A

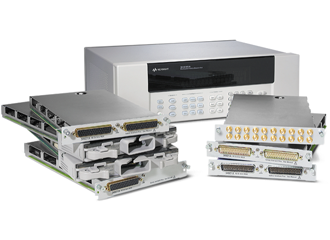

DAQ_34980
  • • 스위칭, 디지털 I/O, D/A 컨버터, 카운터/토탈라이저 기능에
      19가지 플러그인 모듈이 있는 34980A 8슬롯 모듈식 메인프레임
제품 사양
34980A
LXI C형과 호환
내장형 6.5디지트 DMM(옵션)을 갖춘 8슬롯 메인프레임
-DC ~ 20GHz 스위칭, 디지털 I/O, D/A 컨버터, 카운터/토탈라이저 중에서 선택할 수 있는 19개의 플러그인 모듈
단일 프레임에 최대 560개의 2와이어 멀티플렉서 채널 또는 1024개의 2와이어 매트릭스 교차점 장착
표준 케이블, 착탈식 터미널 블록 또는 대량 상호연결 솔루션
모듈
Multiplexer modules
모델명 설명 Max volts Switch/Carry current BW (MHz) Scan ch/sec Thermal offset Comments 견적
34921A 40-channel armature multiplexer w/low thermal offset ± 300 V 1A/2A 45 MHz 100 < 3 μV Temperature reference 4 current channels Conig as 2- or 4-wire 34921A 견적담기
34922A 70-channel armature multiplexer ± 300 V 1A/2A 25 MHz 100 < 3 μV Conig as 2- or 4-wire 34922A 견적담기
34923A 40/80-channel reed multiplexer ± 150 V 0.5A/1.5A 45 MHz 500 < 50 μV Conig as 1-, 2- or 4-wire 34923A 견적담기
34924A 70-channel reed multiplexer ± 150 V 0.5A/1.5A 25 MHz 500 < 50 μV Conig as 2- or 4-wire 34924A 견적담기
34925A 40/80-channel optically isolated FET multiplexer ± 80 V 0.02A 1 MHz 1000 < 3 μV Conig as 1-, 2- or 4-wire 34925A 견적담기
Matrix modules
모델명 설명 Max volts Switch/Carry current BW (MHz) Scan ch/sec Thermal offset Comments 견적
34931A Dual 4x8 armature matrix ± 300 V 1A/2A 30 MHz 100 < 3 μV Backplane expandable 34931A 견적담기
34932A Dual 4x16 armature matrix ± 300 V 1A/2A 30 MHz 100 < 3 μV Backplane expandable 34932A 견적담기
34933A Dual/Quad 4x8 reed matrix ± 150 V 0.5A/1.5A 30 MHz 500 < 50 μV Backplane expandable Conig as 1- or 2-wire 34933A 견적담기
34934A Quad 4x32 reed matrix +/- 100 V 0.5A/0.5A 20 MHz 500 < 50 μV Backplane expandable Conig as 1- or 2-wire 34934A 견적담기
General-purpose modules
모델명 설명 Max volts Switch/Carry current BW (MHz) Scan ch/sec Thermal offset Comments 견적
34937A 28-channel Form C and 4-channel Form A +/–300 V +/–250 VAC 1A/2A 5 A 10 MHz N/A < 3 μV
< 3 μV		 34937A 견적담기
34938A 20-channel 5-amp Form A +/–250 VAC 5A/8A 1 MHz N/A < 3 μV 34938A 견적담기
34939A 64-channels Form A +/–100V 1A/2A 10 MHz N/A < 3 μV 34939A 견적담기
RF and microwave modules
모델명 설명 Max volts Switch/Carry current BW (MHz) Scan ch/sec Thermal offset Comments 견적
34941A Quad 1x4 50 ohm 3 GHz RF multiplexer 0.6 dB > 58 dB 3 GHz < 1.25 50 Ω @ 1 GHz 34941A 견적담기
34942A Quad 1x4 75 ohm 1.5 GHz RF multiplexer 0.6 dB > 60 dB 1.5 GHz < 1.35 75 Ω @ 1 GHz 34942A 견적담기
34945A/ 34945EXT Microwave switch/attenuator driver Can drive up to 64 external switch coils; 32 SPDT switches, 8 multiport switches,
8 attenuators, or your own combination. Expand with additional 34945EXTs.		 34945A 견적담기
34946A Dual 1x2 SPDT terminated microwave switch < 0.42 dB
< 0.69 dB
< 0.8 dB		 > 85 dB
> 67 dB
> 60 dB		 4 GHz or
20 GHz
26.5 GHz		 < 1.15
< 1.30
< 1.6		 50 Ω @ 4 GHz
@ 20 GHz
@ 26.5GHz		 34946A 견적담기
34947A Triple 1x2 SPDT unterminated microwave switch < 0.42 dB
< 0.69 dB
< 0.8 dB		 > 85 dB
> 67 dB
> 60 dB		 4 GHz or
20 GHz
26.5 GHz		 < 1.15
< 1.30
< 1.6		 50 Ω @ 4 GHz
@ 20 GHz
@ 26.5GHz		 34947A 견적담기
System control modules
모델명 설명 견적
34950A 64-bit digital I/O with memory and counter Eight 8-bit digital I/O channels with programmable polarity, thresholds up to 5 V, with handshaking protocols and pattern memory. Two 10 MHz frequency counter and programmable clock output to 20 MHz. 34950A 견적담기
34951A 4-channel isolated D/A converter with waveform memory Output DC voltage up to ± 16 V or DC current up to ± 20 mA. Output waveforms with a 200 kHz update rate and 16 bits of resolution. Use on-board memory to create point-to-point waveforms with more than 500,000 points. 34951A 견적담기
34952A Multifunction module with 32-bit DIO, 2-ch D/A and totalizer Four 8-bit digital I/O channels, two ± 12-V analog outputs, and a 100 kHz gated totalizer. 34952A 견적담기
34959A Breadboard module Create your own custom designs with access to the +12 V and +5 V supplies, 16 GPIO ports and 28 relay drive lines. 34959A 견적담기
옵션&액세사리
Description Model number
Rackmount kit for 34980A, forward or reverse mount (must order either E3663AC rail
kit for forward rack mounting or E3664AC rail kit for reverse rack mountin		 Y1130A
Veriication and diagnostic tools for 34980A mainframe and modules (select option for speciic module support) Y1131A
Module extender for 34980A. Extends cable to locate module outside of mainframe 8710-2576
SMA Extender for connecting SMA connectors.		 Y1132A
Multiplexer terminal blocks 3492xT
Matrix and GP terminal blocks 3493xT
Measurement and control terminal blocks 3495xT
Row expansion cables for 34934C and 34934T Y1134A
1.5 m 50-pin Dsub, M/F twisted pair with outer shield cable – 300 V Y1135A
3 m 50-pin Dsub, M/F twisted pair with outer shield cable – 300 V Y1136A
1.5 m 78-pin Dsub, M/F twisted pair with outer shield cable – 300 V Y1137A
3 m 78-pin Dsub, M/F twisted pair with outer shield cable – 300 V Y1138A
Solder cup connector kit for 34921/23/25/31/32/33/37/38 –50-pin Dsub female – 125 V Y1139A
Solder cup connector kit for 34922, 34924 – 78-pin Dsub female – 60 V Y1140A
Solder cup connector kit for 34951, 34952 – 50-pin Dsub male – 125 V Y1141A
Solder cup connector kit for the 34950A – 78-pin Dsub male – 60 V Y1142A
External driver for 34945A, one required for each 64 coils –holds 4 distribution boards.
Order Y1157A-Y1159A cable kits to connect from distribution boards to switches and attenuators.		 34945EXT
34945EXT distribution board for 8 N181x SPDT switches Y1150A
34945EXT distribution board for two 87104x/106x L7x0xx multiport or 87406B matrix switches Y1151A
34945EXT distribution board for one 87204x/206x or 87606B switch and two N181x switches Y1152A
34945EXT distribution board for two 84904/5/6/7/8 or 8494/5/6 step attenuators Y1153A
34945EXT distribution board for two 87222, L7222C transfer switches and six N181x SPDT switches Y1154A
34945EXT distribution board w/ generic screw terminals for driving 16 switch coils Y1155A
9-to-10 pin cable kit for Y1150A, Y1152A, Y1154A - supplies to build 4 cables Y1157A
10-to-10/10-to-14 pin cable kit for Y1153A, Y1154A - supplies to build 2 cables Y1158A
6-to-16 pin cable kit for Y1150A/51A/52A/53A/54A/55A - supplies to build 2 cables Y1159A
10 pack of J type thermocouples 34307A
5 pack of 10 k thermistors 34308A
