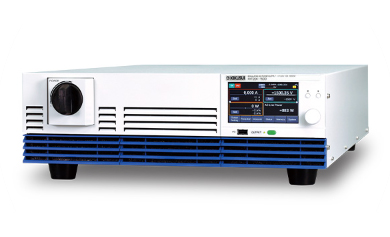

High-Capacity Wide-Range DC Power Supply PXT 시리즈
- • Maximum 20 kW output in a 3U size
- • Supports a maximum voltage of 1500 V
- • Bleeder ON/OFF function
- • Output ON/OFF delay function
- • Continuous full-load operation at ambient temperatures as high as 50°C
- • One-control parallel operation function (up to 10 units of the same model)
- • Touch panel for intuitive operation
- • LAN, USB, RS232C, external analog control (isolated type) standard
제품 사양
| 모델 | Output | Ripple noise | Power fluctuation | Load variation | Input current | ||||
|---|---|---|---|---|---|---|---|---|---|
| CV | CC | Rated power | CV | CV | CC | CV | CC | AC 208 V (3-phase 3-wire) / 480 V (3-phase 3-wire) |
|
| PXT20K-500 3P3W 200V (20kW / 500V / 120A / Input voltage 200V) | 0 to 500 V | 120 A | 20 kW | 100 mVrms | ±100 mV | ±240 mA | ±250 mV | ±240 mA | 80 A |
| PXT20K-500 3P3W 400V (20kW / 500V / 120A / Input voltage 400V) | 0 to 500 V | 120 A | 20 kW | 100 mVrms | ±100 mV | ±240 mA | ±250 mV | ±240 mA | 40 A |
| PXT20K-1500 3P3W 200V (20kW / 1500V / 30A / Input voltage 200V) | 0 to 1500 V | 30 A | 20 kW | 300 mVrms | ±300 mV | ±60 mA | ±750 mV | ±60 mA | 80 A |
| PXT20K-1500 3P3W 400V (20kW / 1500V / 30A / Input voltage 400V) | 0 to 1500 V | 30 A | 20 kW | 300 mVrms | ±300 mV | ±60 mA | ±750 mV | ±60 mA | 40 A |
