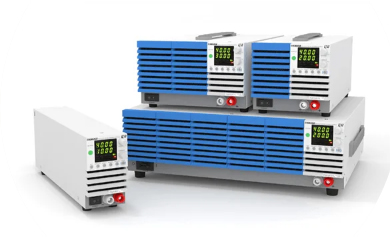

Compact Wide-Range DC Power Supply PWR-01 시리즈
- • Sequence function(supports triggered synchronization)
- • LAN(LXI compliant)/USB/RS232C as standard interface
- • A virtual multi-channel bus (VMCB) function makes multi- channel operation more efficient
- • All models are equipped with front-facing output terminals as standard (maximum 10A)
- • Supporting universal input voltage (85V to 265V)
- • Output ON/OFF delay function
제품 사양
| 모델 | Voltage output | Ripple noise | Line regulation | Load regulation | Current (TYP) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| CV | CC | Power output | CV | CC | CV | CC | CV | CC | 100 Vac / 200 Vac | |
| V | A | W | mVrms | mArms | mV | mA | mV | mA | AC(100 / 200V)A | |
| PWR401L | 0 to 40 | 0 to 40 | 400 | 5 | 80 | ±6 | ±6 | ±6 | ±13 | 5.6 / 2.8 |
| PWR401ML | 0 to 80 | 0 to 20 | 5 | 40 | ±10 | ±4 | ±10 | ±9 | ||
| PWR401MH | 0 to 240 | 0 to 5 | 20 | 12 | ±26 | ±2.5 | ±26 | ±6.0 | ||
| PWR401H | 0 to 650 | 0 to 1.85 | 50 | 6 | ±67 | ±2.2 | ±67 | ±5.4 | ||
| PWR801L | 0 to 40 | 0 to 80 | 800 | 5 | 160 | ±6 | ±10 | ±6 | ±21 | 11.2 / 5.6 |
| PWR801ML | 0 to 80 | 0 to 40 | 5 | 80 | ±10 | ±6 | ±10 | ±13 | ||
| PWR801MH | 0 to 240 | 0 to 10 | 20 | 24 | ±26 | ±3 | ±26 | ±7.0 | ||
| PWR801H | 0 to 650 | 0 to 3.70 | 50 | 12 | ±67 | ±2.4 | ±67 | ±5.7 | ||
| PWR1201L | 0 to 40 | 0 to 120 | 1200 | 5 | 240 | ±6 | ±14 | ±6 | ±29 | 16.8 / 8.4 |
| PWR1201ML | 0 to 80 | 0 to 60 | 5 | 120 | ±10 | ±8 | ±10 | ±17 | ||
| PWR1201MH | 0 to 240 | 0 to 15 | 20 | 36 | ±26 | ±3.5 | ±26 | ±8.0 | ||
| PWR1201H | 0 to 650 | 0 to 5.55 | 50 | 18 | ±67 | ±2.6 | ±67 | ±6.1 | ||
| PWR2001L | 0 to 40 | 0 to 200 | 2000 | 5 | 400 | ±6 | ±22 | ±6 | ±45 | 28.0 / 14.0 |
| PWR2001ML | 0 to 80 | 0 to 100 | 5 | 200 | ±10 | ±12 | ±10 | ±25 | ||
| PWR2001MH | 0 to 240 | 0 to 25 | 20 | 60 | ±26 | ±4.5 | ±26 | ±10 | ||
| PWR2001H | 0 to 650 | 0 to 9.25 | 50 | 30 | ±67 | ±2.9 | ±67 | ±6.9 | ||
