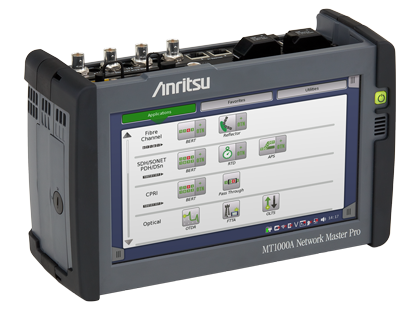

Network Master Pro MT1000A
MT1000A 네트워크 마스터 프로는 데이터 통신 모듈과 OTDR 모듈을 조합하여 사용할 수 있는 필드 시험용 멀티 플랫폼입니다. MT1000A의 모듈은 자유롭게 구성을 변경할 수 있으므로 상황에 따라 조합하여 가지고 다닐 수 있습니다.
- • Transport Module(10G Multirate Module MU100010A)
- 올인원의 트랜스포트 테스터
- 1.5Mbps부터 10Gbps까지 지원
- 전 레이트에서 2포트 동시 측정
- 시험 결과를 PDF, CSV, XML로 리포트 생성
- 리모트 GUI 조작 - • OTDR Module
- 전송 로스 측정, OTDR 측정
- 파이버 단면의 오염, 파손을 검사(옵션)
제품 사양
| Network Master Pro MT1000A Mainframe | |
|---|---|
| Display | 9-inch active TFT display (800 × 480 pixels) and touch screen |
| USB Interface | MT1000A operates as host: USB 2.0 type A (2 ports) |
| MT1000A operates as device: USB 2.0 type Mini-B (1 port) | |
| Ethernet Interface | Ethernet 10M/100M/1000M, Connector: RJ45 |
| Audio Interface | For connection of CTIA Standard head set |
| Connector: 3.5-mm diameter jack | |
| AUX Connector | For connection of G0325A GPS receiver |
| Built-in Loudspeaker | Monitors speech of voice channel |
| Battery | 10.8 V rechargeable and replaceable intelligent Li-ion battery |
| Operating time: 4 hours (typ.) | |
| Dimensions and Mass | 257 (W) × 164 (H) × 77 (D) mm |
| ≤2.7 kg (including MT1000A, MU100010A and battery) | |
| 10G Multirate Module MU110010A | ||
|---|---|---|
| Test Port/Reference Standard | ||
| SFP/SFP+: 2 ports | • SFF-8431, SFF-8472 compliant, IEEE 802.3ae-2002, IEEE 802.3-2008 compliant | |
| RJ45: 2 ports | • IEEE 802.3-2008 10BASE-T, 100BASE-TX, 1000BASE-T compliant | |
| • Auto MDI-X | ||
| • 10 Mbps/100 Mbps full/half duplex, 1000 Mbps full duplex | ||
| BNC: 2 ports | • ITU-T G.703 compliant | |
| RJ48: 2 ports | • ITU-T G.703 compliant | |
| RTT Bantam: 2 ports | • ANSI DS1.102 compliant | |
| Bit Rate | ||
|---|---|---|
| Standard | Bit Rate | Interfaces |
| 10BASE-T | 12.5 Mbps | RJ45 |
| 100BASE-TX | 125 Mbps | RJ45 |
| 1000BASE-T | 1.25 Gbps | RJ45 |
| 100BASE-XX | 125 Mbps | SFP |
| 1000BASE-XX | 1.25 Gbps | SFP |
| 10GBASE-XX | 10.3125 Gbps | SFP+ |
| STM-1/OC-3 | 155.52 Mbps | SFP |
| STM-4/OC-12 | 622.08 Mbps | SFP |
| STM-16/OC-48 | 2.48832 Gbps | SFP |
| STM-64/OC-192 | 9.95328 Gbps | SFP+ |
| OTU1 | 2.666057143 Gbps | SFP |
| OTU2 | 10.70922532 Gbps | SFP+ |
| OTU1e | 11.04910714 Gbps | SFP+ |
| OTU2e | 11.09572785 Gbps | SFP+ |
| OTU1f | 11.27008929 Gbps | SFP+ |
| OTU2f | 11.31764241 Gbps | SFP+ |
| 1GFC | 1.0625 Gbps | SFP |
| 2GFC | 2.125 Gbps | SFP |
| 4GFC | 4.25 Gbps | SFP |
| 8GFC | 8.5 Gbps | SFP+ |
| 10GFC | 10.51875 Gbps | SFP+ |
| E1 | 2.048 Mbps | RJ48, BNC |
| E3 | 34.368 Mbps | BNC |
| E4 | 139.264 Mbps | BNC |
| DS1 | 1.544 Mbps | RTT Bantam |
| DS3 | 44.736 Mbps | BNC |
| STM-1e/STS-3 | 155.52 Mbps | BNC |
| CPRI1 | 614.4 Mbit/s | SFP |
| CPRI2 | 1,228.8 Mbit/s | SFP |
| CPRI3 | 2,457.6 Mbit/s | SFP, SFP+ |
| CPRI4 | 3,072.0 Mbit/s | SFP, SFP+ |
| CPRI5 | 4,915.2 Mbit/s | SFP+ |
| CPRI6 | 6,144.0 Mbit/s | SFP+ |
| CPRI7 | 9,830.4 Mbit/s | SFP+ |
| CPRI8 | 10,137.6 Mbit/s | SFP+ |
| OBSAI 1x | 768 Mbit/s | SFP |
| OBSAI 2x | 1,536 Mbit/s | SFP, SFP+ |
| OBSAI 3x | 3,072 Mbit/s | SFP, SFP+ |
| OBSAI 4x | 6,144 Mbit/s | SFP+ |
| Dimensions and Mass | 320 (W) × 225 (H) × 37 (D) mm, ≤1.4 kg | |
옵션 & 액세서리
| MT1000A Network Master Pro | |
|---|---|
| Standard accessories | J1596A Line Cord Korea |
| Z1746A Stylus | |
| G0309A AC Adapter | |
| Z1817A Utilities ROM | |
| G0310A Li-ion Battery | |
| B0690A Softbag | |
| Z1747A Carrying Strap | |
| Z1748A Handle | |
| Option | MT1000A-003 Connectivity for WLAN/Bluetooth |
| MT1000A-005 AUX I/O | |
| MU100020A OTDR Module 1310/1550 nm SMF MU100021A OTDR Module 1310/1550/850/1300 nm SMF/MMF |
|
|---|---|
| Standard Accessories | B0720A OTDR Rear Cover |
| Z1924A OTDR Module Fixing Screw | |
| Z1925A OTDR Module Fixing Screw (for 10G Multirate Module combination) | |
| J1693A Universal Connector 2.5 mm for OPM | |
| J1694A Universal Connector 1.25 mm for OPM | |
| W3811AE Quick Reference Guide | |
| Option | MU100020A-020 Standard Dynamic Range (1310/1550 nm: 39/37.5 dB) |
| MU100020A-021 Enhanced Dynamic Range (1310/1550 nm: 42/41 dB) | |
| MU100020A-022 High-Performance Dynamic Range (1310/1550 nm: 46/46 dB) | |
| MU100021A-021 Enhanced Dynamic Range (1310/1550/850/1300 nm:42/41/29/28 dB) | |
| MU10002xA-002 Visual Fault Locator | |
| MU10002xA-010 UPC Polish | |
| MU10002xA-011 APC Polish | |
| MU10002xA-037 FC Connector MU100020A | |
| MU10002xA-039 DIN 47256 Connector | |
| MU10002xA-040 SC Connector | |
| MU10002xA-025 FC Connector key width 2.0 mm | |
| MU10002xA-026 SC Connector | |
| Optional Accessories | |
|---|---|
| Optical Module For MU100010A | G0332A 100M FX 1310 nm MM SFP |
| G0356A 8G FC/10G SR 850 nm SFP+ | |
| G0329A 10G LR 1310 nm SFP+ | |
| G0315A 10G LR/LW 1310 nm SFP+ | |
| G0316A 10G ER/EW 1550 nm 40 km SFP+ | |
| G0318A 10G ZR/ZW 1550 nm 80 km SFP+ | |
| G0319A Up to 2.7G 1310 nm 15 km SFP | |
| G0320A Up to 2.7G 1310 nm 40 km SFP | |
| G0321A Up to 2.7G 1550 nm 80 km SFP | |
| G0328A 1G/2G/4G FC 850 nm SFP | |
| G0322A 1G/2G/4G FC 1310 nm SFP | |
| G0323A 1G/2G/4G FC 1550 nm SFP | |
| Cables | J1571A Optical Cable SM LC/PC to SC/PC 3 m |
| J1575A Optical Cable SM LC/PC to FC/PC 3 m | |
| J1579A Optical Cable SM LC/PC to LC/PC 3 m | |
| J1581A Optical Cable MM LC/PC to LC/PC 3 m | |
| J1583A Optical Attenuator 10 dB LC/PC to LC/PC | |
| J1584A RJ45 Cable 3 m | |
| J1585A RJ48 to Crocodile Clips Cable 3 m | |
| J1586A RJ48 to Crocodile Clips Cable 20 dB ATT 3 m | |
| J1588A BNC Cable 2.5 m | |
| J1589A BNC to 1.6/5.6 Cable 2.5 m | |
| J1591A RJ48 to Two 3-pin Banana Plug Cable 2.5 m | |
| J1597A RJ48 Balanced PDH Cable Crossed 3 m | |
| J1598A Bantam Cable 3 m | |
| For OTDR Modules | W3810AE Operation Manual (Printed Matter) |
| J1335A MU/LC Connector Adapter Converts ferrule connector diameter from 2.5 mm → 1.25 mm for visible light source (Option 002) | |
| 1.25 mm for visible light source (Option 002) | |
| J1530A SC Plug-in Converter (UPC(P)-APC(J)) (SC/UPC → SC/APC Adapter) | |
| J1531A SC Plug-in Converter (APC(P)-UPC(J)) (SC/APC → SC/UPC Adapter) | |
| J1532A FC Plug-in Converter (UPC(P)-APC(J)) (FC/UPC → FC/APC Adapter) | |
| J1533A FC Plug-in Converter (APC(P)-UPC(J)) (FC/APC → FC/UPC Adapter) | |
| J1534A LC-SC Plug-in Converter (for SM, SC(P)-LC(J)) (SC/UPC → LC/UPC Adapter for SM fiber) | |
| J1535A LC-SC Plug-in Converter (for MM, SC(P)-LC(J)) (SC/UPC → LC/UPC Adapter for MM fiber) | |
| NETWORKS Reporting Software (Microsoft Windows 7) | |
| J1579A Optical cable SM LC/PC to LC/PC 3 m | |
| J1581A Optical cable MM LC/PC to LC/PC 3 meter | |
| J1575A Optical cable SM LC/PC to FC/PC 3 m | |
| J1571A Optical cable SM LC/PC to SC/PC 3 m | |
