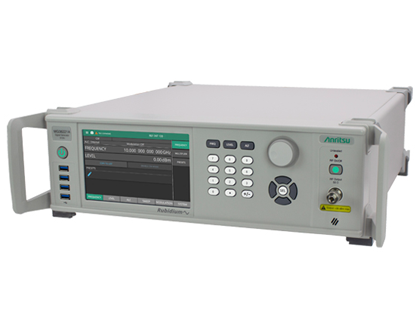

RF/Microwave Signal Generator MG362x1A
- • 비선형 측정
- - Single tone distortion – P1dB 압축 포인트
- - Two tone 상호 변조 – IP2, IP3
- - 대역 내 및 대역 외 간섭(C/I, Blocking)
- • 디바이스 및 시스템 특성화
- - 레이더 시스템을 테스트하기 위한 펄스 변조 신호 소스
- - 트랜시버 체인 테스트에서 LO 대체를 위한 Pure CW 소스
- - Gbit 데이터 변환기(ADC 및 DAC) 테스트를 위한 클럭 및 CW 소스
- • 스위프 선형 측정
- - 벡터 분석기와 동기화된 추가 소스
제품 사양
| MG362x1A | |
|---|---|
| Frequency Range | 9 kHz to 20/43.5 GHz |
| Frequency Resolution | 0.001 Hz |
| SSB phase noise | -136 dBc/Hz (typ) and -140 dBc/Hz (measured) @ 10 GHz output, 10 kHz offset |
| Internal time base stability - Aging | < ±2 x 10E-8 per year with option 0003 < ±1 x 10E-9 per year with option 0056 |
| Reference frequency input/output | 10 MHz, 100 MHz and 1.6 GHz |
| Output power | -130 dBm to +20 dBm (20 GHz standard output) -130 dBm to +18 dBm (43.5 GHz, standard output) |
| Level accuracy and flatness | +/- 1 dB (43.5 GHz) |
| Harmonics (20/43.5 GHz) | -58 dBc |
| Non harmonics (20/43.5 GHz) | -63 dBc |
| Modulation | AM, FM, PM and Pulse |
| Pulse modulation: min pulse width | <10 ns (Unleveled) |
| Pulse modulation: Rise/Fall times | 5 ns (typical) |
| LF signal Generator waveforms | Sine, square, pulse, triangle, ramp, GN/UN noise |
| Frequency sweep modes | Step, List |
| Frequency sweep width | 9 kHz to full frequency range (step, list) |
| Power sweep | Step and List |
| Power sweep resolution | 0.01 dB/step |
옵션 & 악세서리
| Option | |
|---|---|
| MG362x1A-0001 | Rack Mount with Slides (Cannot be ordered with Option 11) |
| MG362x1A-0002 | Mechanical Step Attenuator, 110 dB |
| MG362x1A-0003 | Low Phase Noise and High Stability (Required for Option 13) |
| MG362x1A-0009 | Rear Panel K Connector RF Output |
| MG362x1A-0011 | Rack Mount without Slides (Shelf Mount) |
| MG362x1A-0012 | Amplitude, Frequency and Phase Modulation, Internal/External (Requires Option 27 ) |
| MG362x1A-0013 | Ultra Low Phase Noise (Requires Option 3) |
| MG362x1A-0015 | High Power Output |
| MG362x1A-0023 | Option 23, Premium Phase Noise, CW (Requires Options 3 and 13) (Available on model MG36221A only) |
| MG362x1A-0026 | Pulse Modulation, Internal/External (Requires Option 27) |
| MG362x1A-0027 | Modulation Hardware (Requires Option 12, 26, or both for functionality) |
| MG362x1A-0029 | Front Panel Modulation Input/Output Access (Requires Option 27) |
| MG362x1A-0056 | Ultra Stability Time Base (Requires Option 3 or 13) |
| MG362x1A-0066 | GNSS Atomic Clock Receiver (Requires option 3 or 13) |
| MG362x1A-0097 | Accredited Calibration |
| MG362x1A-0098 | Standard Calibration |
| MG362x1A-0099 | Premium Calibration |
| x- Designation varies with model number | |
| Standard Accessories | |
| 11410-00976 | Getting Started with Anritsu Products and Services Flyer. |
| 2000-1732-R | CAT-7 shielded, twisted-pair, Ethernet cable, 10 ft. |
| Optional Accessories | |
| 790-297-R | Transit case (16 kg, 79.4 cm x 61.5 cm x 44.4 cm, roll-away on four wheels) |
