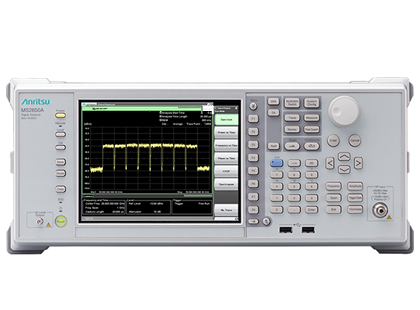

Spectrum Analyzer/Signal Analyzer MS2850A
5G 및 위성통신 등 차세대 광대역, 멀티 캐리어 통신용 시그널 애널라이저
- • 5G 측정 소프트웨어 내장
- - 넓은 측정 다이내믹 레인지를 살린 EVM 성능: 1% 미만
- - 멀티 캐리어 일괄 동시 분석
- - 멀티 캐리어 간의 진폭, 위상, 시간의 차이 측정
- • 최대 분석 대역폭: 1 GHz
- • 뛰어난 진폭・위상 평탄도(flatness) 성능
- • 넓은 측정 다이내믹 레인지: 140 dB 이상
- • PCIe/USB3.0 커넥터 탑재
- • 1000BASE-T 보다 고속으로 캡처 데이터를 외부 PC로 전송
제품 사양
| Common Signal Analyzer and Spectrum Analyzer | |
|---|---|
| Frequency | 9 kHz to 32 GHz |
| 9 kHz to 44.5 GHz | |
| RF Input Connector | K-J, 50Ω (nom.) |
| Max. Input Level | +30 dBm |
| Attenuator | 0 to 60 dB, 2 dB steps |
| Phase Noise | –148 dBc/Hz (nom.) 1 GHz |
| Spectrum Analyzer | |
|---|---|
| RBW (Resolution Bandwidth) | 1 Hz to 3 MHz |
| DANL (Display Average Noise Level) | Frequency, DANL |
| 1 GHz, –150 dBm/Hz | |
| 4 GHz, –144 dBm/Hz | |
| 13 GHz, –146 dBm/Hz | |
| 20 GHz, –140 dBm/Hz | |
| 28 GHz, –140 dBm/Hz | |
| 39 GHz, –136 dBm/Hz | |
| 44 GHz ,–130 dBm/Hz (nom.) | |
| Signal Analyzer | |
|---|---|
| Analysis Bandwidth | 255 MHz (standard) |
| 510 MHz (option) | |
| 1 GHz (option) | |
| Display Functions (Trace Mode) | Spectrum, Power vs. Time, Frequency vs. Time, Phase vs. Time,CCDF, Spectrogram |
| ADC Resolution | Analysis Bandwidth ≤31.25 MHz: 16 bits |
| Analysis Bandwidth >31.25 MHz: 12 bits | |
| RBW (Resolution Bandwidth) |
|---|
| Analysis Bandwidth ≤31.25 MHz: 1 Hz to 1 MHz |
| 50 MHz ≤ Analysis Bandwidth ≤ 62.5 MHz: 3 kHz to 3 MHz |
| Analysis Bandwidth ≥100 MHz: 10 kHz to 10 MHz |
| DANL (Display Average Noise Level) |
|---|
| Frequency, Preamp: None, Preamp: On |
| 1 GHz ,–141 dBm/Hz ,–160 dBm/Hz |
| 4 GHz ,–138 dBm/Hz, –157 dBm/Hz |
| 13 GHz ,–140 dBm/Hz ,–155 dBm/Hz |
| 20 GHz, –135 dBm/Hz ,–152 dBm/Hz |
| 28 GHz, –135 dBm/Hz, –150 dBm/Hz |
| 39 GHz, –132 dBm/Hz ,–146 dBm/Hz |
| 44 GHz ,–125 dBm/Hz (nom.), –138 dBm/Hz (nom.) |
| General | |
|---|---|
| Dimensions and Mass | 426 (W) × 177 (H) × 390 (D) mm / ≤21 kg |
| OS | Windows 7 (64 bit) |
옵션 & 악세서리
| Hardware | |
|---|---|
| MS2850A-033 | Analysis Bandwidth Extension 510 MHz |
| MS2850A-034 | Analysis Bandwidth Extension 1 GHz |
| MS2850A-010 | Phase Noise Measurement Function |
| MS2850A-017 | Noise Figure Measurement Function |
| MS2850A-068 | Microwave Preamplifier |
| MS2850A-076 | Low Second Harmonic Distortion |
| MS2850A-011 | Secondary Storage Device |
| Software | |
|---|---|
| MX285051A | 5G Standard Measurement Software (Base License) (Requires MX285051A-001 and/or 051) |
| MX285051A-001 | Pre-Standard CP-OFDM Downlink |
| MX285051A-051 | Pre-Standard CP-OFDM Uplink |
| MX269011A | W-CDMA/HSPA Downlink Measurement Software |
| MX269012A | W-CDMA/HSPA Uplink Measurement Software |
| MX269013A | GSM/EDGE Measurement Software |
| MX269013A-001 | EDGE Evolution Measurement Software |
| MX269015A | TD-SCDMA Measurement Software |
| MX269020A | LTE Downlink Measurement Software |
| MX269020A-001 | LTE-Advanced FDD Downlink Measurement Software |
| MX269021A | LTE Uplink Measurement Software |
| MX269021A-001 | LTE-Advanced FDD Uplink Measurement Software |
| MX269022A | LTE TDD Downlink Measurement Software |
| MX269022A-001 | LTE-Advanced TDD Downlink Measurement Software |
| MX269023A | LTE TDD Uplink Measurement Software |
| MX269023A-001 | LTE-Advanced TDD Uplink Measurement Software |
| Standard accessories | |
|---|---|
| Z1922A | MA2806A USB Memory |
| Z1923A | MA2808A USB Memory |
| Z1625A | AC Adapter: Power Cord: |
| J1692B | Coaxial Cord, 1 m(SMA-P · SUCOFLEX104PE · SMA-P,DC to 18 GHz, 50Ω): |
