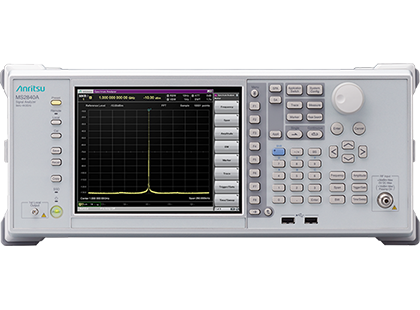

Spectrum Analyzer/Signal Analyzer MS2840A
- • 주파수 범위 9 kHz~3.6 GHz/6 GHz/26.5 GHz/44.5 GHz, 최고 44.5 GHz의
내장 프리앰프 옵션 - • 미들 레인지 모델의 시그널 애널라이저/스펙트럼 애널라이저에서 최고의 위상
잡음 성능: - - 123 dBc/Hz (중심 주파수 1 GHz, 오프셋 주파수 10 kHz에서)： 전 주파수 모델
- - 138 dBc/Hz (중심 주파수 1 GHz, 오프셋 주파수 10 kHz에서、meas.):
3.6 GHz/6 GHz 모델용 옵션 - - 140 dBc/Hz (중심 주파수 150 MHz, 오프셋 주파수 10 kHz에서、meas.):
3.6 GHz/6 GHz 모델용 옵션 - • 고성능 도파관 믹서 MA2806A/MA2808A를 사용하여 그 뛰어난 다이나믹 레인지
성능에 의해 50 GHz ~ 75 GHz 또는 60 GHz ~ 90 GHz 의 광대역 신호를 측정 가능 - • 외부 믹서 (하모닉 믹서) MA2740C/MA2750C 시리즈를 사용하여 최대 325 GHz
까지 측정 가능 - • 해석 대역폭：31.25 MHz (표준)、최고125 MHz (옵션)
- • 신호 발생기를 내장 가능, 1대로 무선기의 송수신 측정을 실현 (3.6 GHz/6 GHz 모델)
- • 측정 애플리케이션 (옵션) : 위상 잡음 측정, 잡음 지수 (NF) 측정, 벡터/아날로그 변조
해석, BER측정
제품 사양
| Signal Analyzer/Spectrum Analyzer | ||
|---|---|---|
| Frequency range | MS2840A-040 | 9 kHz to 3.6 GHz |
| MS2840A-041 | 9 kHz to 6 GHz | |
| MS2840A-044 | 9 kHz to 26.5 GHz | |
| MS2840A-046 | 9 kHz to 44.5 GHz | |
| Frequency Resolution | 1 Hz | |
| Level measurement range | Without MS2840A-008/068/069 or Preamp OFF | DANL to +30 dBm |
| With MS2840A-008/068/069 and Preamp ON | DANL to +10 dBm | |
| Maximum input level | ||
| With MS2840A-040/041 | Average total power | |
| Without MS2840A-008 or Preamp OFF | +30 dBm (Input attenuator: ≥10 dB) +20 dBm (Input attenuator: 0 dB) |
|
| With MS2840A-008 and Preamp ON | +10 dBm (Input attenuator: 0 dB) | |
| Input attenuator range | 0 to 60 dB, 2 dB steps | |
| Spectrum Analyzer | ||
| Display average noise level (DANL) | ||
| With MS2840A-040/041 | ||
| Preamp: None, Low Phase Noise Performance: None | Frequency | DANL |
| 30 MHz | –153 dBm/Hz | |
| 400 MHz | –153 dBm/Hz | |
| 1 GHz | –151 dBm/Hz | |
| 3 GHz | –149 dBm/Hz | |
| 6 GHz | –146 dBm/Hz | |
| Preamp: On, Low Phase Noise Performance : None | Frequency | DANL |
| 30 MHz | –166 dBm/Hz | |
| 400 MHz | –166 dBm/Hz | |
| 1 GHz | –165 dBm/Hz | |
| 3 GHz | –164 dBm/Hz | |
| 6 GHz | –161 dBm/Hz | |
| With MS2840A-044/046 | ||
| Preamp: None, Microwave Preselector Bypass: None | Frequency | DANL |
| 30 MHz | –153 dBm/Hz | |
| 400 MHz | –153 dBm/Hz | |
| 1 GHz | –150 dBm/Hz | |
| 3 GHz | –147 dBm/Hz | |
| 13 GHz | –151 dBm/Hz | |
| 20 GHz | –146 dBm/Hz | |
| 30 GHz | –146 dBm/Hz | |
| 40 GHz | –144 dBm/Hz | |
| 44 GHz | –140 dBm/Hz | |
| Preamp: On, Microwave Preselector Bypass: None | Frequency | DANL |
| 30 MHz | –166 dBm/Hz | |
| 400 MHz | –166 dBm/Hz | |
| 1 GHz | –164 dBm/Hz | |
| 3 GHz | –163 dBm/Hz | |
| 13 GHz | –163 dBm/Hz | |
| 20 GHz | –160 dBm/Hz | |
| 30 GHz | –160 dBm/Hz | |
| 40 GHz | –157 dBm/Hz | |
| 44 GHz | –149 dBm/Hz | |
| Dynamic Range | Frequency | Dynamic Range |
| 30 MHz | 165 dB | |
| 1 GHz | 167 dB | |
| 6 GHz | 161 dB | |
| 20 GHz | 159 dB | |
| 40 GHz | 157 dB | |
| Signal Analyzer | ||
| Bandwidth | ||
| Specifies the capture analysis bandwidth from the center frequency |
Standard | 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25 MHz |
| With MS2840A-077 | 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25 MHz, 50 MHz, 62.5 MHz | |
| With MS2840A-078 | 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25 MHz, 50 MHz, 62.5 MHz, 100 MHz, 125 MHz | |
| Sampling rate | ||
| Auto setting depending on analysis bandwidth |
Standard | 2 kHz to 50 MHz (1-2-5 sequence) |
| With MS2840A-077 | 2 kHz to100 MHz (1-2-5 sequence) | |
| With MS2840A-078 | 2 kHz to 200 MHz (1-2-5 sequence) | |
| General | ||
| RF input | With MS2840A-040/041/044 | Front panel, N-J, 50Ω |
| With MS2840A-046 | Front panel, K-J, 50Ω | |
| External controls | Ethernet (10/100/1000Base-T), GPIB, USB2.0 | |
| Display | 8.4”, XGA color LCD (Resolution: 1024 × 768) | |
| CPU, OS | CPU | Intel Core i5-4400E, 2.7 GHz |
| Main memory | 8 GB | |
| OS | Windows 7 (64 bit) | |
옵션 & 악세서리
| Options | |
|---|---|
| MS2840A-001 | Rubidium Reference Oscillator |
| MS2840A-002 | High Stability Reference Oscillator |
| MS2840A-077 | Analysis Bandwidth Extension to 62.5 MHz |
| MS2840A-078 | Analysis Bandwidth Extension to 125 MHz(Requires MS2840A-077) |
| MS2840A-008 | Preamplifier |
| MS2840A-010 | Phase Noise Measurement Function |
| MS2840A-011 | 2ndary SSD |
| MS2840A-016 | Precompliance EMI Function |
| MS2840A-017 | Noise Figure Measurement Function |
| MS2840A-026 | BER Measurement Function(AUX Conversion Adapter J1556A as standard accessory) |
| MS2840A-066 | Low Phase Noise Performance |
| MS2840A-020 | 3.6 GHz Vector Signal Generator |
| MS2840A-021 | 6 GHz Vector Signal Generator |
| MS2840A-022 | Low Power Extension for Vector Signal Generator |
| MS2840A-027 | ARB Memory Upgrade 256 MSa for Vector Signal Generator |
| MS2840A-028 | AWGN |
| MS2840A-029 | Analog Function Extension for Vector Signal Generator |
| MS2840A-088 | 3.6 GHz Analog Signal Generator |
| MX269017A | Vector Modulation Analysis Software |
| MX269018A | Analog Measurement Software (Requires USB Audio A0086B) |
| MX269902A | TDMA IQproducer |
| MX269904A | Multi-Carrier IQproducer |
| Standard Accessories | |
| Power Cord | 1 pc |
| USB Memory (≥ 1GB) | 1 pc |
| USB Mouse | 1 pc |
| Install DVD-ROM (Application software, instruction manual DVD-ROM) |
1 pc |
| Optional Accessories | |
| 34AKNF50 | Ruggedized K-to-Type N Adapter (DC to 20 GHz, 50Ω) |
| K240B | Power Divider(K connector, DC to 26.5 GHz, 50Ω, K-J, 1 W max.) |
| MA1612A | Four-port Junction Pad (5 MHz to 3 GHz, N-J) |
| MP752A | Termination (DC to 12.4 GHz, 50Ω, N-P) |
| J1359A | Coaxial Adaptor (K-P · K-J, SMA) |
| J0576B | Coaxial Cord, 1 m (N-P · 5D-2W · N-P) |
| J0576D | Coaxial Cord, 2 m (N-P · 5D-2W · N-P) |
| J0127A | Coaxial Cord, 1 m (BNC-P · RG58A/U · BNC-P) |
| J0127B | Coaxial Cord, 2 m (BNC-P · RG58A/U · BNC-P) |
| J0127C | Coaxial Cord, 0.5 m (BNC-P · RG58A/U · BNC-P) |
| J0322A | Coaxial Cord, 0.5 m (DC to 18 GHz),(SMA-P · 50Ω SUCOFLEX104 · SMA-P) |
| J0322B | Coaxial Cord, 1 m (DC to 18 GHz),(SMA-P · 50Ω SUCOFLEX104 · SMA-P) |
| J0322C | Coaxial Cord, 1.5 m (DC to 18 GHz),(SMA-P · 50Ω SUCOFLEX104 · SMA-P) |
| J0322D | Coaxial Cord, 2 m (DC to 18 GHz),(SMA-P · 50Ω SUCOFLEX104 · SMA-P) |
| J0805 | DC Block, N type (MODEL 7003)(10 kHz to 18 GHz, N-P · N-J) |
| J1554A | DC Block, SMA type (MODEL 7006)(9 kHz to 26.5 GHz, SMA-P · SMA-J) |
| J1555A | DC Block, SMA type (MODEL 7006-1)(9 kHz to 20 GHz, SMA-P · SMA-J) |
| K261 | DC Block (10 kHz to 40 GHz, K-P · K-J) |
| J0004 | Coaxial Adapter (DC to 12.4 GHz, 50Ω, N-P · SMA-J) |
| J1398A | N-SMA Adaptor (DC to 26.5 GHz, 50Ω, N-P · SMA-J) |
| J0911 | Coaxial Cable, 1.0 m for 40 GHz(DC to 40 GHz, approx. 1 m, SF102A, 11K254/K254/1.0M) |
| J0912 | Coaxial Cable, 0.5 m for 40 GHz(DC to 40 GHz, approx. 0.5 m, SF102A, 11K254/K254/0.5M) |
| 41KC-3 | Fixed Attenuator (DC to 40 GHz, 3 dB) |
| J1261A | Ethernet Cable (Shield type, Straight, 1 m) |
| J1261B | Ethernet Cable (Shield type, Straight, 3 m) |
| J1261C | Ethernet Cable (Shield type, Cross, 1 m) |
| J1261D | Ethernet Cable (Shield type, Cross, 3 m) |
| J0008 | GPIB Cable, 2.0 m |
| J1556A | AUX Conversion Adapter(AUX → BNC) |
| A0086B | USB Audio (for MX269018A) |
| B0635A | Rack Mount Kit (EIA) |
| B0657A | Rack Mount Kit (JIS) |
| B0636C | Carrying Case (Hard type, with casters) |
| B0645A | Soft Carrying Case |
| B0671A | Front Cover for 1MW4U |
| MA24105A | Inline Peak Power Sensor(350 MHz to 4 GHz, with USB A to mini B cable) |
| MA24106A | USB Power Sensor(50 MHz to 6 GHz, with USB A to mini B cable) |
| MA24108A | Microwave USB Power Sensor(10 MHz to 8 GHz, with USB A to Micro-B cable) |
| MA24118A | Microwave USB Power Sensor(10 MHz to 18 GHz, with USB A to Micro-B cable) |
| MA24126A | Microwave USB Power Sensor(10 MHz to 26 GHz, with USB A to Micro-B cable) |
| Z0975A | Keyboard (USB) |
| Z1932A | Installation Kit |
