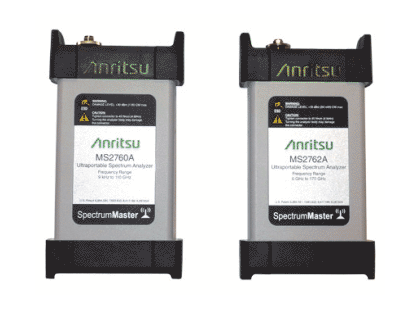

Spectrum Master Ultraportable Spectrum Analyzers MS2760A
- • First portable spectrum analyzer to provide continuous frequency coverage to 170 GHz
- • Broadband mmWave capabilities for radio astronomy, automotive radar, wireless backhaul, 802.11ad, satcom, and more
- • Ultraportable form factor enables measurements right at the device under test
- • Measure: channel power, adjacent channel power, occupied bandwidth
- • Patented NLTL technology provides > 100 dB dynamic range
- • -141/-136/-129/-122 dBm DANL to 90/110/145/170 GHz ( Spectrum Master MS2762A)
- • Up to 6 traces, 3 trace detectors, and 12 markers
제품 사양
| Model | MS2760A | MS2762A |
|---|---|---|
| Frequency Range | MS2760A-0032 9 kHz to 32 GHz MS2760A-0044 9 kHz to 44 GHz MS2760A-0050 9 kHz to 50 GHz MS2760A-0070 9 kHz to 70 GHz MS2760A-0090 9 kHz to 90 GHz MS2760A-0100 9 kHz to 110 GHz MS2760A-0145 9 kHz to 145 GHz MS2760A-0170 9 kHz to 170 GHz |
MS2762A-0032 6 GHz to 32 GHz MS2762A-0044 6 GHz to 44 GHz MS2762A-0050 6 GHz to 50 GHz MS2762A-0070 6 GHz to 70 GHz MS2762A-0090 6 GHz to 90 GHz MS2762A-0100 6 GHz to 110 GHz MS2762A-0145 6 GHz to 145 GHz MS2762A-0170 6 GHz to 170 GHz |
| Dynamic Range 2/3 (TOI to DANL) 1 Hz RBW |
>103 dB @ 70 GHz | >108 dB @ 70 GHz |
| DANL (RMS detection) 1 Hz RBW, IF Gain = On |
-130 dB typ (70 – 90 GHz) -120 dB typ (110 – 145 GHz) |
-141 dB typ (70 – 90 GHz) -129 dB typ (110 – 145 GHz) |
| RF Connector *K = 2.92 mm (compatible with SMA and 3.5 mm) *V = 1.85 mm (compatible with 2.4 mm) *W1 = 1.0 mm |
MS2760A-0032 K* (m) connector MS2760A-0044 K* (m) connector MS2760A-0050 V* (m) connector MS2760A-0070 V* (m) connector MS2760A-0090 W1* (m) connector MS2760A-0100 W1* (m) connector MS2760A-0145 0.8 mm (m) connector MS2760A-0170 0.8 mm (m) connector |
MS2762A-0032 K* (m) connector MS2762A-0044 K* (m) connector MS2762A-0050 V* (m) connector MS2762A-0070 V* (m) connector MS2762A-0090 W1* (m) connector MS2762A-0100 W1* (m) connector MS2762A-0145 0.8 mm (m) connector MS2762A-0170 0.8 mm (m) connector |
| Amplitude Accuracy | ±0.5 dB, typical (20°C to 30°C) | ±0.5 dB, typical (20°C to 30°C) |
| Frequency Accuracy | Accuracy: ± 0.2 ppm (25°C ± 25°C) + aging Aging: ± 1.0 ppm per year |
Accuracy: ± 0.2 ppm (25°C ± 25°C) + aging Aging: ± 1.0 ppm per year |
옵션 & 악세서리
| Standard Accessories | ||
|---|---|---|
| 2000-1859-R | USB 3.0 Type C to Type A Cable, 1 m | |
| 2000-1605-R | BNC(m) to MCX(m) Cable (qty 2) | |
| Optional Accessories | ||
| Coaxial Adapters | ||
| 34VFK50A | DC to 43.5 GHz, V(f) to K(m), 50 Ω | |
| 34VFKF50A | DC to 43.5 GHz, V(f) to K(f), 50 Ω | |
| 34VV50 | DC to 65 GHz, V(m) to V(m), 50 Ω | |
| 34VVF50 | DC to 65 GHz, V(f) to V(m), 50 Ω | |
| 34VFVF50 | DC to 65 GHz, V(f) to V(f), 50 Ω | |
| 34WV50 | Precision Adapter, DC to 65 GHz, W1(m) to V(m), 50 Ω | |
| 34WVF50 | Precision Adapter, DC to 65 GHz, W1(m) to V(f), 50 Ω | |
| 34WFV50 | Precision Adapter, DC to 65 GHz, W1(f) to V(m), 50 Ω | |
| 34WFVF50 | Precision Adapter, DC to 65 GHz, W1(f) to V(f), 50 Ω | |
| 33WW50 | W1(m) to W1(m) | |
| 33WWF50 | W1(m) to W1(f) | |
| 33W.850 | Calibration Grade Adapter, W1(m) to 0.8 mm (m), DC to 110 GHz, 50 Ω | |
| 33W.8F50 | Calibration Grade Adapter, W1(m) to 0.8 mm (f), DC to 110 GHz, 50 Ω | |
| 33WF.850 | Calibration Grade Adapter, W1(f) to 0.8 mm (m), DC to 110 GHz, 50 Ω | |
| 33WF.8F50 | Calibration Grade Adapter, W1(f) to 0.8 mm (f), DC to 110 GHz, 50 Ω | |
| 33.8.850 | Calibration Grade Adapter, 0.8 mm (m) to 0.8 mm (m), DC to 145 GHz, 50 Ω | |
| 33.8.8F50 | Calibration Grade Adapter, 0.8 mm (m) to 0.8 mm (f), DC to 145 GHz, 50 Ω | |
| 33.8F.8F50 | Calibration Grade Adapter, 0.8 mm (f) to 0.8 mm (f), DC to 145 GHz, 50 Ω | |
| 2000-1880-R | DC to 18 GHz, N(m) to V(f), 50 Ω | |
| 2000-1881-R | DC to 18 GHz, N(f) to V(f), 50 Ω | |
| K222B | DC to 40 GHz, K(f) to K(f), 50 Ω | |
| 33WFWF50 | W1(f) to W1(f) | |
| Fixed Attenuators | ||
| 43KC-3 | Precision, DC to 26.5 GHz, 1W, 3 dB, K(m) to K(f) | |
| 43KC-6 | Precision, DC to 26.5 GHz, 1W, 6 dB, K(m) to K(f) | |
| 43KC-10 | Precision, DC to 26.5 GHz, 1W, 10 dB, K(m) to K(f) | |
| 43KC-20 | Precision, DC to 26.5 GHz, 1W, 20 dB, K(m) to K(f) | |
| 41KB-3 | Precision, DC to 26.5 GHz, 1W, 3 dB, K(m) to K(f) | |
| 41KB-6 | Precision, DC to 26.5 GHz, 1W, 6 dB, K(m) to K(f) | |
| 41KB-10 | Precision, DC to 26.5 GHz, 1W, 10 dB, K(m) to K(f) | |
| 41KB-20 | Precision, DC to 26.5 GHz, 1W, 20 dB, K(m) to K(f) | |
| 41KC-3 | Precision, DC to 40 GHz, 1W, 3 dB, K(m) to K(f) | |
| 41KC-6 | Precision, DC to 40 GHz, 1W, 6 dB, K(m) to K(f) | |
| 41KC-10 | Precision, DC to 40 GHz, 1W, 10 dB, K(m) to K(f) | |
| 41KC-20 | Precision, DC to 40 GHz, 1W, 20 dB, K(m) to K(f) | |
| 41VA-3 | Precision, DC to 70 GHz, 1W, 3 dB, V(m) to V(f) | |
| 41VA-6 | Precision, DC to 70 GHz, 1W, 6 dB, V(m) to V(f) | |
| 41VA-10 | Precision, DC to 70 GHz, 1W, 10 dB, V(m) to V(f) | |
| 41VA-20 | Precision, DC to 70 GHz GHz, 1W, 20 dB, V(m) to V(f) | |
| 41VA-30 | Precision, DC to 70 GHz, 1W, 30 dB, V(m) to V(f) | |
| 41VA-40 | Precision, DC to 70 GHz, 1W, 40 dB, V(m) to V(f) | |
| 41W-3 | DC to 110 GHz, 0.2 W, 3 dB, W1(m) to W1(f), 50 Ω | |
| 41W-6 | DC to 110 GHz, 0.2 W, 6 dB, W1(m) to W1(f), 50 Ω | |
| 41W-10 | DC to 110 GHz, 0.2 W, 10 dB, W1(m) to W1(f), 50 Ω | |
| Miscellaneous Components | ||
| W240A | Precision Power Divider, DC to 110 GHz, W1(f) input, W1(f) outputs, 3 resistor, 50 Ω | |
| W241A | Precision Power Splitter, DC to 110 GHz, W1(m) input, W1(f) outputs, 2 resistor, 50 Ω | |
| MN25110A | Precision Directional Coupler, 20 GHz to 110 GHz, W1(f) input, W1(f) output, W1(f) coupled port, 50 Ω | |
| 2000-1929-R | Low Noise Amplifier, 18 GHz to 42 GHz, 28 dB Gain, V(m) to V(f) | |
| 2000-1930-R | Low Noise Amplifier, 18 GHz to 42 GHz, 28 dB Gain, K(m) to K(f) | |
| 01-201 | Torque Wrench, 0.9 N·m (8 lbf·in) for K, V, SMA, 3.5 mm, 2.4 mm connectors | |
| 01-504 | Torque Wrench, 0.45 N·m (4 lbf·in) for W1, 1.0 mm connectors | |
| 01-524 | Torque Wrench, 0.45 N·m (4 lbf·in) for 0.8 mm connectors | |
| Precision Waveguide Coaxial Adapters (right angle) | ||
| 35WR42KF | 18 GHz to 26.5 GHz, WR42 to K(f) | |
| 35WR28KF | 26.5 GHz to 40 GHz, WR28 to K(f) | |
| 35WR22VF | 33 GHz to 50 GHz, WR22 to V(f) | |
| 35WR19VF | 40 GHz to 60 GHz, WR19 to V(f) | |
| 35WR15VF | 50 GHz to 65 GHz, WR15 to V(f) | |
| 35WR10WF | 75 GHz to 110 GHz, WR10 to W1(f) | |
| SC7442 | 60 GHz to 90 GHz, WR12 to W1(f) | |
| Waveguide to Coaxial End Launch Adapters (straight through) | ||
| 2000-1889-R | 17.6 GHz to 26.7 GHz, WR42 to K(f) | |
| 2000-1890-R | 26.4 GHz to 40.1 GHz, WR28 to K(f) | |
| 1091-460-R | 17.6 GHz to 26.7 GHz, WR42 to V(f) | |
| 1091-459-R | 26.4 GHz to 40.1 GHz, WR28 to V(f) | |
| 1091-458-R | 33.0 GHz to 50.1 GHz, WR22 to V(f) | |
| 1091-457-R | 39.3 GHz to 59.7 GHz, WR19 to V(f) | |
| 1091-456-R | 49.9 GHz to 67.0 GHz, WR15 to V(f) | |
| 1091-402-R | 49.9 GHz to 75.8 GHz, WR15 to W1(f) | |
| 1091-401-R | 60.5 GHz to 92.0 GHz, WR12 to W1(f) | |
| 1091-400-R | 73.8 GHz to 110 GHz, WR10 to W1(f) | |
| Directional Horn Antennas | ||
| 2000-1867-R | 17.6 GHz to 26.7 GHz, WR42, 25 dBi gain | |
| 2000-1868-R | 26.4 GHz to 40.1 GHz, WR28, 25 dBi gain | |
| 2000-1869-R | 33.0 GHz to 50.1 GHz, WR22, 25 dBi gain | |
| 2000-1870-R | 39.3 GHz to 59.7 GHz, WR19, 25 dBi gain | |
| 2000-1871-R | 49.9 GHz to 75.8 GHz, WR15, 25 dBi gain | |
| 2000-1872-R | 60.5 GHz to 92.0 GHz, WR12, 25 dBi gain | |
| 2000-1873-R | 73.8 GHz to 112.0 GHz, WR10, 25 dBi gain | |
| 2000-2003-R | 24 GHz to 40 GHz, WR28, 19 dBi gain (small form factor assembly with K(f) adapter, mounting bracket, and case | |
| Test Port Cables (Armored, Semi-rigid) | ||
| 3670K50A-1 | K(f) to K(m), 30.48 cm | |
| 3670K50A-2 | K(f) to K(m), 60.96 cm | |
| 3670V50A-1 | DC to 70 GHz, V(f) to V(m), 30.5 cm (1 ft) | |
| 3670V50A-2 | DC to 70 GHz, V(f) to V(m), 61.0 cm (2 ft) | |
| 3670W50-1 | DC to 110 GHz, W1(m) to W1(f), 10 cm | |
| 3670W50-2 | DC to 110 GHz, W1(m) to W1(f), 16 cm | |
| 3671W1-50-1 | DC to 110 GHz, Flexible, W1(f) to W1(m), 10 cm | |
| 3671W1-50-2 | DC to 110 GHz, Flexible, W1(f) to W1(m), 13 cm | |
| 3671W1-50-3 | DC to 110 GHz, Flexible, W1(f) to W1(m), 16 cm | |
| 3670.850-1 | Test Port Cable, Armored, Semi-rigid, 0.8 mm(m) to 0.8 mm(f) 10 cm | |
| 3670.850-2 | Test Port Cable, Armored, Semi-rigid, 0.8 mm(m) to 0.8 mm(f) 16 cm | |
| 3671W1-50-3 | DC to 110 GHz, Flexible, W1(f) to W1(m), 16 cm | |
| USB Cable Extender | ||
| 2000-1888-R | USB 3.0 Powered Extension Cable, 10 m, (32 ft) (up to two can be used in series for a total length of 20 m) | |
| 2000-1918-R | 4-port 200 m USB Multimode Fiber Extender System | |
