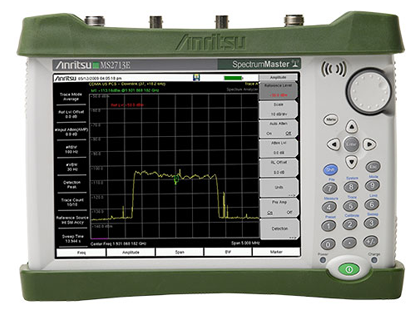

소형 Spectrum Master MS2713E
안리쓰 MS2713E

  • • 스펙트럼 분석기 : 9 kHz to 6 GHz
  • • 인터페이스 매핑이 포함된 인터페이스 분석기
  • • 높은 정확성을 가진 파워 미터, 2 포트 전송 측정
  • • 커버리지 매핑, 채널 스캐너, GPS, AM/FM/PM 분석기
  • • PIM Hunting
  • • 3GPP 신호 분석 GSM/EDEG, W-CDNMA/HSPA+, TD-SCDMA/HSPA+, LTE/LTE-A, TD-LTE/LTE-A
  • • Tracking Generator : 500 kHz to 4 GHz
  • • 디지털 TV ISDB-T, DVB-T/H 분석기
  • • 현장에서 입증된 설계 : 베터리 수명 3시간, 밝은 곳에서도 선명하게 볼 수 있으며 내구성 높은 초소형 경량 디스플레이
  • • 메뉴에 따라 조작하는 방식의 쉬운 터치스크린 사용자 인터페이스
  • • PIM Alert (a downloadable easyTest™ script)

제품 사양
Specification
Frequency Range MS2713E 9 kHz to 6 GHz
Tuning Resolution 1 Hz
Resolution Bandwidth (RBW) 100 Hz to 3 MHz in 1–3 sequence
Video Bandwidth (VBW) 10 Hz to 3 MHz in 1–3 sequence
Dynamic Range > 102 dB (2.4 GHz), 2/3 (TOI-DANL) in 1 Hz RBW
Measurement Range DANL to +26 dBm (≥ 50 MHz)
DANL to 0 dBm (< 50 MHz)
Attenuator Resolution 0 dB to 55 dB in 5 dB steps
Maximum Continuous Input +30 dBm
Displayed Average Noise Level (DANL)
(RBW Normalized to 1 Hz, 0 dB attenuation)
Preamp = Off Preamp = On
10 MHz to 2.4 GHz –146 dBm –162 dBm
> 2.4 GHz to 4 GHz –141 dBm –159 dBm
> 4 GHz to 5 GHz –138 dBm –155 dBm
> 5 GHz to 6 GHz –131 dBm –150 dBm
Third-Order Intercept (TOI) 800 MHz +16 dBm
2400 MHz +20 dBm
200-2200 MHz +25 dBm, typical
> 2.2 GHz to 3.0 GHz +28 dBm, typical
> 5.0 GHz to 6.0 GHz +33 dBm, typical
Tracking Generator (Option 20)
Frequency MS2713E 500 kHz to 6.0 GHz
Output Power –50 dBm to 0 dBm
Connectors RF In Type N, female, 50 Ω
RF Out Type N, female, 50 Ω
USB Interface
Internal Memory 2,000 traces, 2,000 Setups
Display 8.4 inch Touchscreen, 800 x 600 Resolution
Battery Li-Ion, 3 hour operation
Size and Weight 273 mm x 199 mm x 91 mm
3.45 kg
Warranty Standard three-year warranty
옵션 & 악세서리
Options
MS2713E-0010 Bias-Tee
MS2713E-0009 20 MHz Bandwidth Demod
MS2713E-0031 GPS Receiver (requires GPS Antenna)
MS2713E-0019 High-Accuracy Power Meter (requires External Power Sensor)
MS2713E-0029 Power Meter
MS2713E-0025 Interference Analyzer (Option 31 recommended)
MS2713E-0027 Channel Scanner
MS2713E-0431 Coverage Mapping (requires Option 31)
MS2713E-0444 EMF Measurements (requires Anritsu Isotropic Antenna)
MS2713E-0090 Gated Sweep
MS2713E-0020 Tracking Generator
MS2713E-0509 AM/FM/PM Analyzer
MT8213E-0751 CPRI RF Measurements (cannot be ordered with Options 411, 57, or 79)
MS2713E-0880 GSM/GPRS/EDGE Measurements (requires Option 9)
MS2713E-0881 W-CDMA/HSPA+ Measurements (requires Option 9; Option 31 recommended)
MS2713E-0882 TD-SCDMA/HSPA+ Measurements (requires Option 9; requires Option 31 for full functionality)
MS2713E-0883 LTE/LTE-A FDD/TDD Measurements (requires Option 9; requires Option 31 for full functionality)
MS2713E-0884 CDMA/EV-DO Measurements (requires Option 9; requires Option 31 for full functionality)
MS2713E-0885 WiMAX Fixed/Mobile Measurements (requires Option 9; requires Option 31 for full functionality)
MS2713E-0030 ISDB-T Digital Video Measurements (requires Option 9)
MS2713E-0032 ISDB-T SFN Measurements (requires Option 9)
MS2713E-0079 ISDB-T BER Measurements (requires Options 9 and 30. Cannot be ordered with Options 411 or 751)
MS2713E-0064 DVB-T/H Digital Video Measurements (requires Option 9)
MS2713E-0078 DVB-T/H SFN Measurements (requires Option 9)
MS2713E-0057 DVB-T/H BER Measurements (requires Option 64. Cannot be ordered with Options 411 or 751)
MS2713E-0411 Ethernet Connectivity (cannot be ordered with Options 57, 79, or 751)
MS2713E-0098 Standard Calibration (ANSI Z540-1-1994)
MS2713E-0099 Premium Calibration (ANSI Z540-1-1994) plus printed test data
Standard Accessories
10920-00060 Handheld Instruments Documentation Disc
2300-577 Anritsu Software Tool Box for Handheld RF Instruments Disc
2000-1371-R Ethernet Cable, 7 ft/213 cm
2000-1685-R Soft Carrying Case
2000-1691-R Stylus with Coiled Tether
2000-1797-R Touchscreen Protective Film, 8.4 in (one factory-installed, one spare)
633-75 High Capacity Li-Ion Battery
40-187-R AC/DC Power Supply
806-141-R Automotive Power Adapter, 12 VDC, 60 W
3-2000-1498 USB A-mini B Cable, 10 ft/305 cm
Optional Accessories
Power Sensors
MA24105A Inline Peak Power Sensor, 350 MHz to 4 GHz, +3 dBm to +51.76 dBm
MA24106A RF USB Power Sensor, 50 MHz to 6 GHz, +23 dBm
MA24108A Microwave USB Power Sensor, 10 MHz to 8 GHz, +20 dBm
MA24118A Microwave USB Power Sensor, 10 MHz to 18 GHz, +20 dBm
MA24126A Microwave USB Power Sensor, 10 MHz to 26 GHz, +20 dBm
MA24208A Microwave Universal USB Power Sensor, 10 MHz to 8 GHz, +20 dBm
MA24218A Microwave Universal USB Power Sensor, 10 MHz to 18 GHz, +20 dBm
MA25100A RF Power Indicator
Directional Antennas
2000-1411-R 822 MHz to 900 MHz, N(f), 10 dBd, Yagi
2000-1412-R 885 MHz to 975 MHz, N(f), 10 dBd, Yagi
2000-1413-R 1710 MHz to 1880 MHz, N(f), 10 dBd. Yagi
2000-1414-R 1850 MHz to 1990 MHz, N(f), 9.3 dBd, Yagi
2000-1415-R 2400 MHz to 2500 MHz, N(f), 10 dBd, Yagi
2000-1416-R 1920 MHz to 2170 MHz, N(f), 10 dBd, Yagi
2000-1659-R 698 MHz to 787 MHz, N(f), 8 dBd, Yagi
2000-1660-R 1425 MHz to 1535 MHz, N(f), 12.2 dBd, Yagi
2000-1715-R Directional Antenna, 698 MHz to 2500 MHz, N(f), gain of 2 dBi to 10 dBi, typical
2000-1726-R Antenna, 2500 MHz to 2700 MHz, N(f), 12 dBd, Yagi
2000-1747-R Antenna, Log Periodic, 300 MHz to 5000 MHz, N(f), 5.1 dBi, typical
2000-1748-R Antenna, Log Periodic, 1 GHz to 18 GHz, N(f), 6 dBi, typical
2000-1777-R Portable Directional Antenna, 9 kHz to 20 MHz, N(f)
2000-1778-R Portable Directional Antenna, 20 MHz to 200 MHz, N(f)
2000-1779-R Portable Directional Antenna, 200 MHz to 500 MHz, N(f)
Portable Antennas
2000-1200-R 806 MHz to 866 MHz, SMA(m), 50 Ω
2000-1473-R 870 MHz to 960 MHz, SMA(m), 50 Ω
2000-1035-R 896 MHz to 941 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1030-R 1710 MHz to 1880 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1474-R 1710 MHz to 1880 MHz with knuckle elbow (1/2 wave)
2000-1031-R 1850 MHz to 1990 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1475-R 1920 MHz to 1980 MHz and 2110 MHz to 2170 MHz, SMA(m), 50 Ω
2000-1032-R 2400 MHz to 2500 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1361-R 2400 MHz to 2500 MHz, 5000 MHz to 6000 MHz, SMA(m), 50 Ω
2000-1751-R 698 MHz to 960 MHz, 1710 MHz to 2100 MHz, 2500 MHz to 2700 MHz, SMA(m), 2 dB, typical, 50 Ω
Isotropic Antenna
2000-1791-R Isotropic Antenna, 700 MHz to 6000 MHz, N(m)
2000-1792-R Isotropic Antenna, 30 MHz to 3000 MHz, N(m)
2000-1800-R Isotropic Antenna, 9 kHz to 300 MHz, N(m)
Mag Mount Broadband Antennas
2000-1647-R Cable 1: 698–1200 MHz 2 dBi peak gain, 1700–2700 MHz 5 dBi peak gain, N(m), 50 Ω, 10 ft
Cable 2: 3000–6000 MHz 5 dBi peak gain, N(m), 50 Ω, 10 ft
Cable 3: GPS 26 dB gain, SMA(m), 50 Ω, 10 ft
2000-1645-R 694-894 MHz 3 dBi peak gain 1700-2700 MHz 3 dBi peak gain, N(m), 50 Ω, 10 ft
2000-1646-R 750-1250 MHz 3 dBi peak gain,1650-2000 MHz 5 dBi peak gain, 2100-2700 MHz 3 dBi peak gain, N(m), 50 Ω, 10 ft
2000-1648-R 1700-6000 MHz 3 dBi peak gain, N(m), 50 Ω, 10 ft
Bandpass Filters
1030-114-R 806 MHz to 869 MHz, N(m) to SMA(f), 50 Ω
1030-109-R 824 MHz to 849 MHz, N(m) to SMA(f), 50 Ω
1030-110-R 880 MHz to 915 MHz, N(m) to SMA(f), 50 Ω
1030-111-R 1850 MHz to 1910 MHz, N(m) to SMA(f), 50 Ω
1030-112-R 2400 MHz to 2484 MHz, N(m) to SMA(f), 50 Ω
1030-105-R 890 MHz to 915 MHz, N(m) to N(f), 50 Ω
1030-106-R 1710 MHz to 1790 MHz, N(m) to N(f), 50 Ω
1030-107-R 1910 MHz to 1990 MHz, N(m) to N(f), 50 Ω
1030-149-R High Pass, 150 MHz, N(m) to N(f), 50 Ω
1030-150-R High Pass, 400 MHz, N(m) to N(f), 50 Ω
1030-151-R High Pass, 700 MHz, N(m) to N(f), 50 Ω
1030-152-R Low Pass, 200 MHz, N(m) to N(f), 50 Ω
1030-153-R Low Pass, 550 MHz, N(m) to N(f), 50 Ω
1030-155-R 2500 MHz to 2700 MHz, N(m) to N(f), 50 Ω
1030-178-R 1920 MHz to 1980 MHz, N(m) to N(f), 50 Ω
1030-179-R 777 MHz to 798 MHz, N(m) to N(f), 50 Ω
1030-180-R 2500 MHz to 2570 MHz, N(m) to N(f), 50 Ω
2000-1684-R 791 MHz to 821 MHz, N(m) to N(f), 50 Ω
2000-1734-R Bandpass Filter, 699 MHz to 715 MHz, N(m) and N(f), 50 Ω
2000-1735-R Bandpass Filter, 776 MHz to 788 MHz, N(m) and N(f), 50 Ω
2000-1736-R Bandpass Filter, 815 MHz to 850 MHz, N(m) and N(f), 50 Ω
2000-1737-R Bandpass Filter, 1711 MHz to 1756 MHz, N(m) and N(f), 50 Ω
2000-1738-R Bandpass Filter, 1850 MHz to 1910 MHz, N(m) and N(f), 50 Ω
2000-1739-R Bandpass Filter, 880 MHz to 915 MHz, N(m) and N(f), 50 Ω
2000-1740-R Bandpass Filter, 1710 MHz to 1785 MHz, N(m) and N(f), 50 Ω
2000-1741-R Bandpass Filter, 1920 MHz to 1980 MHz, N(m) and N(f), 50 Ω
2000-1742-R Bandpass Filter, 832 MHz to 862 MHz, N(m) and N(f), 50 Ω
2000-1743-R Bandpass Filter, 2500 MHz to 2570 MHz, N(m) and N(f), 50 Ω
2000-1799-R Bandpass Filter, 2305 MHz to 2320 MHz, N(m) and N(f), 50 Ω
Attenuators
3-1010-122 20 dB, 5 W, DC to 12.4 GHz, N(m) to N(f)
42N50-20 20 dB, 5 W, DC to 18 GHz, N(m) to N(f)
42N50A-30 30 dB, 50 W, DC to 18 GHz, N(m) to N(f)
3-1010-123 30 dB, 50 W, DC to 8.5 GHz, N(m) to N(f)
1010-127-R 30 dB, 150 W, DC to 3 GHz, N(m) to N(f)
1010-121 Attenuator, 40 dB, 100 W, DC-18 GHz, N(f) input - N(m) output, UniDirectional
3-1010-124 Attenuator, 40 dB, 100 W, DC-8.5 GHz, N(f) input - N(m) output, Uni-directional
1010-128-R 40 dB, 150 W, DC to 3 GHz, N(m) to N(f)
Phase-Stable Test Port Cables, Armored w/ Reinforced Grip
15RNFN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15RDFN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω
15RDN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω
15RNFN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15RDFN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω
15RDN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω
Phase-Stable Test Port Cables, Armored
15NNF50-1.5C 1.5 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15NN50-1.5C 1.5 m, DC to 6 GHz, N(m) to N(m), 50 Ω
15NDF50-1.5C 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω
15ND50-1.5C 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω
15NNF50-3.0C 3.0 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15NN50-3.0C 3.0 m, DC to 6 GHz, N(m) to N(m), 50 Ω
15NNF50-5.0C 5.0 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15NN50-5.0C 5.0 m, DC to 6 GHz, N(m) to N(m), 50 Ω
Adapters
1091-26-R SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R SMA(f) to N(f), DC to 18 GHz, 50 Ω
1091-172-R BNC(f) to N(m), DC to 1.3 GHz, 50 Ω
510-102-R N(m) to N(m), DC to 11 GHz, 50 Ω, 90 degrees right angle
Precision Adapters
34NN50A Precision Adapter, N(m) to N(m), DC to 18 GHz, 50 Ω
34NFNF50 Precision Adapter, N(f) to N(f), DC to 18 GHz, 50 Ω
Miscellaneous Accessories
2000-1374 External Dual Charger for Li-lon Batteries
633-75 Rechargeable Li-Ion Battery, 7500 mAh
69793 CW Signal Generator Kit
2000-1689 EMI Near Field Probe Kit
2000-1797-R Touchscreen Protective Film, 8.4 in
MA2700A Handheld Interference Hunter (For full specifications, refer to the MA2700A Technical Data Sheet 11410-00692)
2000-1691-R Stylus with Coiled Tether
2000-1798-R Port Extender, DC to 6 GHz, N(m) to N(f)
Backpack and Transit Case
67135 Anritsu Backpack (For Handheld Instrument and PC)
760-243-R Large Transit Case with Wheels and Handle 56 cm x 45.5 cm x 26.5 cm (22.07" x 17.92" x 10.42")
760-271-R Transit Case for Portable Directional Antennas and Port Extender 52.4 cm x 42.8 cm x 20.6 cm
(20.62" x 16.87" x 8.12") (for 2000-1777-R, 2000-1778-R, 2000-1779-R, 2000-1798-R)
자료실
제 목 파일 다운로드
[Anritsu] MS2712E, MS2713E 제품 매뉴얼 Download
[Anritsu] MS2713E 제품 사양서 Download
