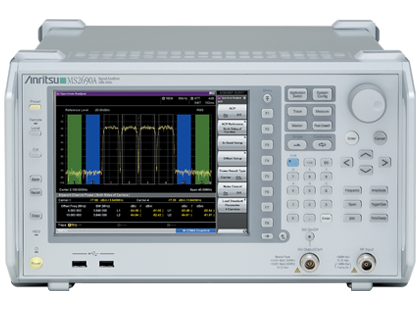

Signal Analyzer MS2690A 시리즈
- • 주파수 범위: 50 Hz to 6.0, 13.5, 26.5 GHz
- • 분석 대역폭 : 31.25 MHz (기본), 62.5 MHz / 125 MHz (옵션)
- • 극초단파 프리셀렉터 바이패스(옵션): 6 GHz~26.5 GHz
- • 신호 발생기 옵션이 추가된 원박스 테스터
- • 분석 시간이 가장 빠른 일괄 캡처 측정
- • BTS 및 UE 송신기 테스트
- • 신호 발생기 옵션을 사용한 수신기 테스트
- • 높은 성능이 필요한 R&D 분야
- • LTE/LTE-Advanced (FDD/TDD), EDGE 진화 및 HSPA진화
- • 최대 4시간 동안 데이터를 포착할 수 있는 확장형 디지타이저
제품 사양
| Specification | ||
|---|---|---|
| Frequency range | ||
| MS2690A | 50 Hz to 6.0 GHz | |
| MS2691A | 50 Hz to 13.5 GHz | |
| MS2692A | 50 Hz to 26.5 GHz | |
| Total Level Accuracy | ||
| Dynamic Range | ±0.3 dB | |
| TOI | ≥+22 dBm | |
| DANL | –155 dBm/Hz | |
| Improved Level Linearity | ||
| Internal Reference Oscillator | ||
| Pre-installed Reference Oscillator |
Aging Rate: ±1 × 10–8/day | |
| Rubidium Reference Oscillator (Opt. 001) |
Aging Rate: ±1 × 10–10/month | |
| Versatile Built-in Functions | ||
| Standard |
- Channel Power - Occupied Bandwidth - Adjacent Channel Leakage Power - Spectrum Emission Mask - Spurious Emission - Burst Average Power - Frequency Counter - AM Depth - FM Deviation - Multi-marker & Marker List - Highest 10 Markers - Limit Line - 2-tone 3rd-order Intermodulation Distortion - Phase Noise - Power Meter |
|
| Option | - Noise Figure | |
| Analysis Bandwidth | ||
| Standard | 31.25 MHz max. | |
| Opt. 004 | 125 MHz max. | |
| Opt. 077 | 62.5 MHz max. | |
| Opt. 078 | 125 MHz max. | |
| Capture Function | ||
| Span 1 MHz | Max. capture time 50 s | |
| Span 10 MHz | Max. capture time 5 s | |
| Span 100 MHz | Max. capture time 0.5 s | |
| Vector Signal Generator (Opt. 020) | ||
| Frequency Range | 125 MHz to 6 GHz | |
| Pre-installed Baseband Generator | Vector Modulation Bandwidth: 120 MHz Sampling Clock: 20 kHz to 160 MHz |
|
| Large-capacity Memory | 1 GB = 256 Msamples | |
| Internal AWGN Generator | ||
| Internal BER Measurement Function | Bit Rate: 100 bps to 10 Mbps | |
옵션 & 악세서리
| Options | |
|---|---|
| MS2690A-001 | Rubidium Reference Oscillator (Aging rate ±1 × 10–10/month) |
| MS2690A-004 | Wideband Analysis Hardware (Extends the Analysis Bandwidth to 125 MHz) |
| MS2690A-008 | 6 GHz Preamplifier (100 kHz to 6 GHz) |
| MS2690A-017 | Noise Figure Measurement Function |
| MS2690A-020 | Vector Signal Generator (125 MHz to 6 GHz) |
| MS2690A-040 | Baseband Interface Unit |
| MS2690A-050 | HDD Digitizing Interface |
| MS2690A-077 | Analysis Bandwidth Extension to 62.5 MHz |
| MS2690A-078 | Analysis Bandwidth Extension to 125 MHz(Requires MS2690A-077) |
| MS2690A-313 | Removable HDD |
| MX269010A | Mobile WiMAX Measurement Software |
| MX269011A | W-CDMA/HSPA Downlink Measurement Software |
| MX269012A | W-CDMA/HSPA Uplink Measurement Software |
| MX269013A | GSM/EDGE Measurement Software |
| MX269013A-001 | EDGE Evolution Measurement Software |
| MX269014A | ETC/DSRC Measurement Software |
| MX269015A | TD-SCDMA Measurement Software |
| MX269016A | XG-PHS Measurement Software |
| MX269017A | Vector Modulation Analysis Software |
| MX269020A | LTE Downlink Measurement Software |
| MX269020A-001 | LTE-Advanced FDD Downlink Measurement Software |
| MX269021A | LTE Uplink Measurement Software |
| MX269022A | LTE TDD Downlink Measurement Software |
| MX269022A-001 | LTE-Advanced TDD Downlink Measurement Software |
| MX269023A | LTE TDD Uplink Measurement Software |
| MX269024A | CDMA2000 Forward Link Measurement Software |
| MX269024A-001 | All Measure Function |
| MX269026A | EV-DO Forward Link Measurement Software |
| MX269026A-001 | All Measure Function |
| MX269028A | WLAN (802.11) Measurement Software |
| MX269028A-002 | 802.11ac (160 MHz) Measurement Software |
| MX269030A | W-CDMA BS Measurement Software |
| MX269036A | Measurement Software for MediaFLO |
| MX269040A | UMTS Measurement Software for RF Device Test |
| MX269041A | Digital I/F Control Software for DigRF2.5G/3G |
| MX269901A | HSDPA/HSUPA IQproducer |
| MX269902A | TDMA IQproducer |
| MX269904A | Multi-Carrier IQproducer |
| MX269905A | Mobile WiMAX IQproducer |
| MX269908A | LTE IQproducer |
| MX269908A-001 | LTE-Advanced FDD Option |
| MX269909A | XG-PHS IQproducer |
| MX269910A | LTE TDD IQproducer |
| MX269910A-001 | LTE-Advanced TDD Option |
| MX269911A | WLAN IQproducer |
| MX269911A-001 | 802.11ac (80 MHz) Option |
| MX269912A | TD-SCDMA IQproducer |
| MX269970A | 1xEV-DO Reverse Receiver Test Waveform Pattern |
| Standard accessories | |
| Power Cord | |
| USB Memory (>1 GB USB2.0 Flash Driver) |
1 pc |
| USB Mouse | 1 pc |
| Install CD-ROM (Application software, instruction manual CD-ROM) |
1 pc |
| Optional Accessories | |
| K240B | Power Divider(K connector, DC to 26.5 GHz, 50Ω, K-J, 1 W max.) |
| MA1612A | Four-port Junction Pad (5 MHz to 3 GHz, N-J) |
| MP752A | Termination (DC to 12.4 GHz, 50Ω, N-P) |
| MA2512A | Band Pass Filter (for W-CDMA, 1.92 to 2.17 GHz) |
| J0576B | Coaxial Cord, 1 m (N-P · 5D-2W · N-P) |
| J0576D | Coaxial Cord, 2 m (N-P · 5D-2W · N-P) |
| J0127A | Coaxial Cord, 1 m (BNC-P · RG58A/U · BNC-P) |
| J0127B | Coaxial Cord, 2 m (BNC-P · RG58A/U · BNC-P) |
| J0127C | Coaxial Cord, 0.5 m (BNC-P · RG58A/U · BNC-P) |
| J0322A | Coaxial Cord, 0.5 m (DC to 18 GHz),(SMA-P · 50Ω SUCOFLEX104 · SMA-P) |
| J0322B | Coaxial Cord, 1 m (DC to 18 GHz),(SMA-P · 50Ω SUCOFLEX104 · SMA-P) |
| J0322C | Coaxial Cord, 1.5 m (DC to 18 GHz),(SMA-P · 50Ω SUCOFLEX104 · SMA-P) |
| J0322D | Coaxial Cord, 2 m (DC to 18 GHz),(SMA-P · 50Ω SUCOFLEX104 · SMA-P) |
| J0805 | DC Block, N type (MODEL 7003)(10 kHz to 18 GHz, N-P · N-J) |
| J1554A | DC Block, SMA type (MODEL 7006)(9 kHz to 26.5 GHz, SMA-P · SMA-J) |
| J1555A | DC Block, SMA type (MODEL 7006-1)(9 kHz to 20 GHz, SMA-P · SMA-J) |
| K261 | DC Block (10 kHz to 40 GHz, K-P · K-J) |
| J0004 | Coaxial Adapter (DC to 12.4 GHz, 50Ω, N-P · SMA-J) |
| J1398A | N-SMA Adaptor (DC to 26.5 GHz, 50Ω, N-P · SMA-J) |
| J0911 | Coaxial Cable, 1.0 m for 40 GHz(DC to 40 GHz, approx. 1 m, SF102A, 11K254/K254/1.0M) |
| J0912 | Coaxial Cable, 0.5 m for 40 GHz(DC to 40 GHz, approx. 0.5 m, SF102A, 11K254/K254/0.5M) |
| 41KC-3 | Fixed Attenuator (DC to 40 GHz, 3 dB) |
| J1261A | Ethernet Cable (Shield type, Straight, 1 m) |
| J1261B | Ethernet Cable (Shield type, Straight, 3 m) |
| J1261C | Ethernet Cable (Shield type, Cross, 1 m) |
| J1261D | Ethernet Cable (Shield type, Cross, 3 m) |
| J0008 | GPIB Cable, 2.0 m |
| B0597A | Rack Mount Kit (JIS) |
| B0589A | Carrying Case (Hard type, with casters) |
| B0633A | Soft Carrying Case |
| Z1082A | 10/13 MHz Reference Signal Input |
| MA24106A | USB Power Sensor(50 MHz to 6 GHz, with USB A to mini B cable) |
| MA24108A | Microwave USB Power Sensor(10 MHz to 8 GHz, with USB A to Micro-B cable) |
| MA24118A | Microwave USB Power Sensor(10 MHz to 18 GHz, with USB A to Micro-B cable) |
| MA24126A | Microwave USB Power Sensor(10 MHz to 26 GHz, with USB A to Micro-B cable) |
| Z1037A | Installation Kit |
