MS2080A
> 메이커별제품 > Anritsu > 스펙트럼 분석기

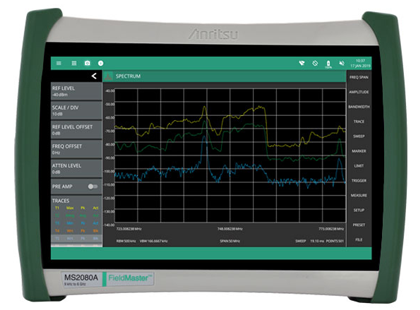

Field MasterTM MS2080A
- • Frequency range : 9 kHz to 4 GHz
- • Sweep speed : 45 GHz/s
- • Dynamic range >105 dB minimum
- • Real-Time Spectrum Analyzer (RTSA)
- • LTE FDD/TDD/ 5GNR FR1 Analyzer
Included Instruments
| Spectrum Analyzer |
| Real-time Spectrum Analyzer (RTSA) |
| Interference Analyzer |
| True Power Meter |
| Cable and Antenna Analyzer |
| AM/FM Demodulator |
| LTE FDD/TDD Base Station Analyzer |
| 5GNR FR1 Base Station Analyzer |
| Coverage Mapping |
제품 사양
| Frequency range | 9 kHz to 4 GHz | |
|---|---|---|
| Sweep speed | 45 GHz/s | |
| Phase noise | -95 dBc/Hz @ 1 GHz freq and 100 kHz offset | |
| DANL | < -165 dBm (with pre amp) | |
| Maximum input signal | +30 dBm | |
| Dynamic range | >105 dB minimum at 2.4 GHz, 2/3 (TOI-DANL) in 1 Hz RBW | |
| Amplitude range | DANL to +30 dBm | |
| Input damage level | 5 Watts | |
| Frequency accuracy | Aging: ±1.0 x 10–6 per 10 years Accuracy: ±0.28 x 10–6 (-10 °C ± 55°C) plus aging |
|
| Amplitude accuracy | ±1 dB (± 0.5 dB typical) | |
| Resolution bandwidth in sweep mode | 1 Hz to 5 MHz | |
| Resolution bandwidth in zero span | 10 Hz to 20 MHz | |
| RTSA bandwidth | 40 MHz | |
옵션 & 악세서리
| Options | |
|---|---|
| MS2080A-0704 | 9 kHz to 4 GHz Spectrum Analyzer |
| MS2080A-0019* | High Accuracy Power Meter (requires compatible USB power sensor, sold separately) |
| MS2080A-0024* | Interference Finder (requires directional antenna, sold separately) |
| MS2080A-0031* | GPS Receiver (requires GPS antenna, sold separately) |
| MS2080A-0090* | Gated Sweep |
| MS2080A-0102* | 40 MHz Analysis Bandwidth (20 MHz standard) |
| MS2080A-0199* | Real-Time Spectrum Analyzer |
| MS2080A-0431* | Coverage Mapping (requires GPS option MS2080A-0031) |
| MS2080A-0883* | LTE FDD/TDD Signal Analyzer |
| MS2080A-0888* | 5GNR FDD/TDD FR1 Measurements (requires GPS option MS2080A-0031) |
| * Time-Limited Options | |
| Options marked with an asterisk are offered as a 90-day time limited option by ordering as a -9xxx series option. For example, MS2080A-9888 is the 90-day time limited option for 5GNR FDD/TDD FR1 Measurements. The option start time begins when the user first activates the option. Refer to the instrument user guide for information on purchasing and activating time limited options. | |
