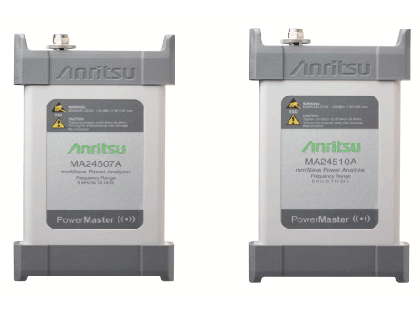

Power Master™ 주파수 선택형 밀리미터파 전원 분석기 MA245xxA
Power Master는 간단한 숫자 및 주파수 선택적 평균 전력 RF 측정을 제공하는 초소형 USB-based mmWave 전력 분석기입니다. Power Master는 9 kHz ~ 70 GHz 및 9 kHz ~ 110 GHz의 두 가지 주파수 커버리지를 제공합니다. Power Master는 최저 -90 dBm의 넓은 광대역 전력 범위 커버리지를 지원합니다.
- • 최저 –90dBm의 신호까지 측정할 수 있는 저전력 기능
- • OTA(Over-the-Air) 테스트에 최적, 특히 전파 손실이 높은 밀리미터파 신호에 최적
- • 측정 속도 및 잡음 플로어를 제어할 수 있는 사용자 설정
- • 한 번에 최대 6개의 주파수 채널을 모니터링할 수 있는 PowerXpert의 새로운 채널 모니터링 모드
- • 한 개의 주파수 내에서 최대 6개의 신호를 검색할 수 있는 PowerXpert의 새로운 전원 검색 모드
- • 온웨이퍼 테스트용 프로브를 연결하기 위해 직접 장착할 수 있는 마운팅 홀
제품 사양
| Model | Frequency | 측정 범위 | SWR (x:1) | Amplitude정확도(db,Typical) | RF Connector |
|---|---|---|---|---|---|
| MA24507A | 9kHz to 70GHz | -90 to +10dBm | 9 kHz to ≤ 12.4 GHz 1.29 > 12.4 GHz to 50 GHz 1.67 > 50 GHz to 70 GHz 2.10 |
±1.0 dB, typical | V(m) |
| MA24510A | 9kHz to 110GHz | -90 to +10dBm | 9 kHz to ≤ 12.4 GHz 1.29 > 12.4 GHz to 50 GHz 1.67 > 110 GHz to 70 GHz 2.10 |
±1.0 dB, typical | V(m) |
옵션 & 액세서리
| Standard Accessories | ||
|---|---|---|
| 2000-1859-R | USB 3.0 Type C to Type A Cable, 1 m | |
| 2000-1605-R | BNC(m) to MCX(m) Cable (qty 2) | |
| Optional Accessories | ||
| Calibrated Torque Wrenches | ||
| 01-201 | Calibrated torque wrench for K and V connectors | |
| Precision Fixed Attenuators | ||
| 41VA-3 | Precision, DC to 70 GHz, 1W, 3 dB, V(m) to V(f) | |
| 41VA-6 | Precision, DC to 70 GHz, 1W, 6 dB, V(m) to V(f) | |
| 41VA-10 | Precision, DC to 70 GHz, 1W, 10 dB, V(m) to V(f) | |
| 41VA-20 | Precision, DC to 70 GHz, 1W, 20 dB, V(m) to V(f) | |
| 41W-3 | Precision, DC to 110 GHz, 1W, 3 dB, W1(m) to W1 (f) | |
| 41W-6 | Precision, DC to 110 GHz, 1W, 6 dB, W1(m) to W1 (f) | |
| 41W-10 | Precision, DC to 110 GHz, 1W, 10 dB, W1(m) to W1 (f) | |
| Precision Power Divider | ||
| W240A | Precision, DC to 110 GHz, 3 resistor, W1(f) input, W1(f) output | |
| Precision Power Splitter | ||
| W241A | Precision, DC to 110 GHz, 2 resistor, W1(m) input, W1(f) output | |
| Precision Directional Couplers | ||
| MN25110A | Precision, 20 GHz to 110 GHz, W 1(f) input, W 1(f) output, W 1 (f) coupled port | |
| Precision Coaxial Adapters | ||
| 33VFVF50C | DC to 70 GHz, V(f) to V(f), 50 Ω | |
| 33VVF50C | DC to 70 GHz, V(m) to V(f), 50 Ω | |
| 34WV50 | DC to 65 GHz, W1(m) to V(m), 50 Ω | |
| 33WW50 | W1(m) to W1(m) | |
| 33WFWF50 | DC to 110 GHz, W1(f) to W1(f), 50 Ω | |
| 34WFV50 | DC to 65 GHz, W1(f) to V(m), 50 Ω | |
| 34WFVF50 | DC to 65 GHz, W1(f) to V(f), 50 Ω | |
| 33WFWF50 | W1(f) to W1(f) | |
| 33WWF50 | W1(m) to W1(f) | |
| Waveguide to Coaxial Adapters(right angle) | ||
| 35WR22VF | 33 GHz to 50 GHz, WR22 to V(f) | |
| 35WR19VF | 40 GHz to 60 GHz, WR19 to V(f) | |
| SC7442 | 60 GHz to 90 GHz, WR12 to W1(f) | |
| 35WR15VF | 50 GHz to 65 GHz, WR15 to V(f) | |
| 35WR10WF | 75 GHz to 110 GHz, WR10 to W1(f) | |
| Waveguide to Coaxial End Launch Adapters (straight through) | ||
| 1091-400-R | 73.8 GHz to 110 GHz, WR10 to W1(f) | |
| 1091-401-R | 60.5 GHz to 92.0 GHz, WR12 to W1(f) | |
| 1091-460-R | 17.6 GHz to 26.7 GHz, WR42 to V(f) | |
| 1091-459-R | 26.4 GHz to 40.1 GHz, WR28 to V(f) | |
| 1091-457-R | 39.3 GHz to 59.7 GHz, WR19 to V(f) | |
| 1091-456-R | 49.9 GHz to 67.0 GHz, WR15 to V(f) | |
| 1091-402-R | 49.9 GHz to 75.8 GHz, WR15 to W1(f) | |
| 1091-458-R | 33.0 GHz to 50.1 GHz, WR22 to V(f) | |
| Directional Horn Antennas | ||
| 2000-1867-R | 17.6 GHz to 26.7 GHz, WR42, 25 dBi gain | |
| 2000-1868-R | 26.4 GHz to 40.1 GHz, WR28, 25 dBi gain | |
| 2000-1869-R | 33.0 GHz to 50.1 GHz, WR22, 25 dB gain | |
| 2000-1870-R | 39.3 GHz to 59.7 GHz, WR19, 25 dBi gain | |
| 2000-1871-R | 49.9 GHz to 75.8 GHz, WR15, 25 dBi gain | |
| 2000-1872-R | 60.0 GHz to 90.0 GHz, WR12, 25 dBi gain | |
| 2000-1873-R | 75.0 GHz to 110.0 GHz, WR10, 25 dBi gain | |
| USB Cable Extender | ||
| 2000-1888-R | USB 3.0 Powered Extension Cable, 10 m, (32 ft) (up to two can be used in series for a total length of 20 m) | |
