MA24208A / MA24218A

홈 바로가기 > 메이커별제품 > Anritsu > RF 파워미터 & 센서

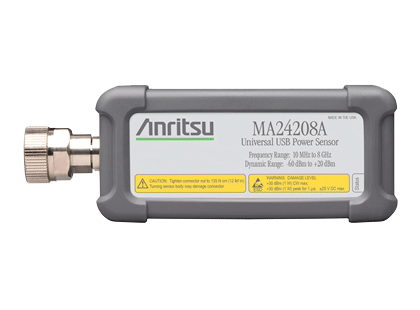

마이크로파 범용 USB 전력 센서 MA24208A / MA24218A
안리쓰 S331L

  • • True RMS 측정 – 변조 독립적
  • • 빠른 측정 속도: > 초당 1,6001 회 판독(연속), > 초당 11,000회 판독(버퍼링)1
  • • 손상 전에 높은 전력 수준을 수용할 수 있음: +30 dBm CW, +34 dBm 10 µs
  • • 제로화가 필요치 않음*
  • • NIST 추적 가능 보정
  • • Anritsu 핸드헬드 기기와 호환
  • • 필드 내구성 개선을 위한 실리콘 보호 커버

제품 사양
MA24208A MA24218A
Frequency Range 10 MHz to 8 GHz 10 MHz to 18 GHz
Dynamic Range –60 dBm to +20 dBm
SWR < 1.17, 10 MHz to 150 MHz
< 1.12, 150 MHz to 2 GHz
< 1.22, 2 GHz to 12.4 GHz		 < 1.25, 12.4 GHz to 18 GHz
Damage Levels –35 dBm to +20 dBm
RF Connector N male
Interface to Host USB 2.0 high speed
옵션 & 액세서리
Standard Accessories
Option 2300-283 Product Disc – Anritsu PowerXpert Software and USB Power Sensor Documentation
10585-00021 Quick Start Guide
2000-1605-R 1.5 m BNC(m) to MCX(m) cable
2000-1816-R 1.8 m USB A to Micro-B cable
Optional Accessories
Calibrated Torque Wrenches 01-200 Calibrated torque wrench for N connector
01-204 Calibrated torque wrench for K and V connectors
Precision Fixed Attenuators 41KB-3 DC to 26.5 GHz, 3 dB, 50 Ω, K(m) to K(f)
41KB-6 DC to 26.5 GHz, 6 dB, 50 Ω, K(m) to K(f)
41KB-10 DC to 26.5 GHz, 10 dB, 50 Ω, K(m) to K(f)
41KB-20 DC to 26.5 GHz, 20 dB, 50 Ω, K(m) to K(f)
41KC-3 DC to 40 GHz, 3 dB, 50 Ω, K(m) to K(f)
41KC-6 DC to 40 GHz, 6 dB, 50 Ω, K(m) to K(f)
41KC-10 DC to 40 GHz, 10 dB, 50 Ω, K(m) to K(f)
41KC-20 DC to 40 GHz, 20 dB, 50 Ω, K(m) to K(f)
41V-3 DC to 60 GHz, 3 dB, 50 Ω, V(m) to V(f)
41V-6 DC to 60 GHz, 6 dB, 50 Ω, V(m) to V(f)
41V-10 DC to 60 GHz, 10 dB, 50 Ω, V(m) to V(f)
41V-20 DC to 60 GHz, 20 dB, 50 Ω, V(m) to V(f)
43KB-3 DC to 26.5 GHz, 3 dB, 50 Ω, K(m) to K(f)
43KB-6 DC to 26.5 GHz, 6 dB, 50 Ω, K(m) to K(f)
43KB-10 DC to 26.5 GHz, 10 dB, 50 Ω, K(m) to K(f)
43KB-20 DC to 26.5 GHz, 20 dB, 50 Ω, K(m) to K(f)
43KC-3 DC to 40 GHz, 3 dB, 50 Ω, K(m) to K(f)
43KC-6 DC to 40 GHz, 6 dB, 50 Ω, K(m) to K(f)
43KC-10 DC to 40 GHz, 10 dB, 50 Ω, K(m) to K(f)
43KC-20 DC to 40 GHz, 20 dB, 50 Ω, K(m) to K(f)
Precision Coaxial Adapters 33KFKF50B DC to 40 GHz, 50 Ω, K(f) to K(f)
33KKF50B DC to 40 GHz, 50 Ω, K(m) to K(f)
33VFVF50C DC to 70 GHz, 50 Ω, V(f) to V(f)
33VVF50C DC to 70 GHz, 50 Ω, V(m) to V(f)
34NKF50 DC to 18 GHz, 50 Ω, N(m) to K(f)
34NFKF50 DC to 18 GHz, 50 Ω, N(f) to K(f)
