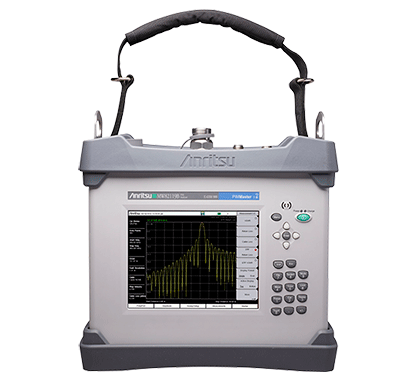

PIM Master™ MW82119B
안리쓰 RF기타 MW82119B

  • • PIM Master™ MW82119B 배터리 작동식 고출력 휴대용 수동 상호 변조 분석기
    　 (케이블 옵션) & 안테나 분석기
  • • Passive Intermodulation(PIM) 분석기
  • • PIM vs. Time, Swept PIM, Distance-to-PIM, 노이즈 플로어
  • • 배터리 작동식: >3시간
  • • 20 dBm (0.1 Watt) — 46 dBm (40 Watt)
  • • 현장 입증 설계: 내구성, 컴팩트, 일광 가시성 디스플레이
  • • SkyBridge Tools™ Trace Manager Empowered
  • • 표준 3년 보증(배터리는 1년 보증)

제품 사양
Measurements
PIM vs. Time
Noise Floor
Distance-to-PIM
Swept PIM

PIM Measurement Ranges
Intermodulation Order 3rd, 5th, and 7th order, when in receive band (user selectable)
RF Test Power Two CW tones 20 dBm to 46 dBm, 0.1 dBm steps
Residual PIM Performance <–117 dBm, <–125 dBm typical (2x 43 dBm test tones)
<–134 dBm, <–140 dBm typical (2x 20 dBm test tones)
PIM Measurement Range –70 dBm to –140 dBm (Revision 1 instruments)
–50 dBm to –140 dBm (Revision 2 instruments)

Band
LTE 700 Tx1: 734 MHz to 734.5 MHz, Tx2: 746 MHz to 768 MHz
RxLower: 698 MHz to 717 MHz, RxUpper: 777 MHz to 806 MHz
APT 700 Tx1: 758 MHz to 776 MHz, Tx2: 788 MHz to 803 MHz
RxLower: 710 MHz to 748 MHz, RxUpper: 825 MHz to 845 MHz
LTE 800 Tx1: 791 MHz to 795 MHz, Tx2: 811.5 MHz to 821 MHz
Rx: 832 MHz to 862 MHz
Cellular 850 Tx1: 869 MHz to 871 MHz, Tx2: 881.5 MHz to 894 MHz
Rx: 824 MHz to 849 MHz
E-GSM 900 Tx1: 925 MHz to 937.5 MHz, Tx2: 951.5 MHz to 960 MHz
Rx1: 880 MHz to 915 MHz
E-GSM 900 w/IM 2 Tx1: 925 MHz to 937.5 MHz, Tx2: 951.5 MHz to 960 MHz
Rx1: 885 MHz to 915 MHz, Rx2: 1877 MHz to 1920 MHz
DCS 1800 Tx1: 1805 MHz to 1837 MHz, Tx2: 1857.5 MHz to 1880 MHz
Rx: 1710 MHz to 1785 MHz
PCS/AWS Tx1: 1930 MHz to 1945 MHz, Tx2: 1965 MHz to 1995 MHz, Tx3: 2110 MHz to 2155 MHz
Rx1: 1850 MHz to 1910 MHz (using Tx1 and Tx2), Rx2: 1710 MHz to 1755 MHz (using Tx1 and Tx3)
UMTS 2100 Tx1: 2110 MHz to 2112.5 MHz, Tx2: 2130 MHz to 2170 MHz
RxLower: 1920 MHz to 1980 MHz, RxUpper: 2050 MHz to 2090 MHz
LTE 2600 Tx1: 2620 MHz to 2630 MHz, Tx2: 2650 MHz to 2690 MHz
Rx: 2500 MHz to 2570 MHz

PIM Master Connectors
PIM Test Port 7/16 DIN, female, 50 Ω
Dual USB Type A 2x Type A (connect USB Flash Drive and USB Power Sensor)
USB Mini-B 1x Mini-B (connect to PC for data transfer)
GPS SMA, female (with GPS option only)
PIM Test Port Damage Level +10 dBm (10 mW) continuous, (PIM Rx band)
+35 dBm (3 W) continuous, (PIM Tx band)
IM2 In Test Port Type N, Female, 50 Ω (Option 902 only)
IM2 In Test Port Damage Level +10 dBm (10 mW) continuous, (IM2 Rx band)
VNA Test Port Type N, female, 50 Ω (Option 331)
VNA Test Port Damage Level 40 dBm continuous

기타
Display 213 mm (8.4 in) touch screen, 800 x 600
Battery Li-Ion, Battery Operation 3.0 hours, typical
옵션 & 액세서리
Standard Accessories
2000-1786-R Soft Carrying Case, Screen Access
2000-1714-R Shoulder Strap
2000-1691-R Stylus with Coiled Tether
2000-1797-R Screen Protector Film, 8.4 in
1091-422-R Adapter, 7/16 DIN(f) to 7/16 DIN(m), 50 Ω (Connector Saver)
2300-577 Anritsu Software Tool Box for Handheld RF Instruments Disc
633-75 High-capacity Li-Ion Battery Pack
40-187-R AC/DC Power Supply
(Country dependent) AC Power Cable
806-141-R Automotive Power Adapter, 12 VDC, 60 W
2000-1371-R Ethernet Cable, 7 ft/213 cm
3-2000-1498 USB A to Mini B Cable, 10 ft/305 cm
10920-00060 Handheld Instruments Documentation Disc
Three-year warranty (battery one-year warranty)
Certificate of Calibration

Options
MW82119B-0700 LTE 700
MW82119B-0701 APT 700
MW82119B-0800 LTE 800
MW82119B-0850 Cellular 850
MW82119B-0900 E-GSM 900
MW82119B-0902 E-GSM 900 w/IM2
MW82119B-0180 DCS 1800
MW82119B-0194 PCS/AWS 1900/2100
MW82119B-0210 UMTS 2100
MW82119B-0260 LTE 2600
MW82119B-0019 High Accuracy Power Meter (requires USB power sensor)
MW82119B-0031 GPS Receiver (requires GPS antenna)
MW82119B-0331 Site Master™ Cable and Antenna Analyzer
MW82119B-0098 Standard Calibration to ISO 17025 and/or Z540.1
MW82119B-0099 Premium Calibration to ISO 17025 and/or Z540.1 plus test data

Optional Accessories
Miscellaneous Accessories 2000-1374 Dual Battery Charger
2000-1528-R GPS Antenna, SMA(m) with 15 ft cable
2000-1652-R GPS Antenna, SMA(m) with 1 ft cable
2000-1760-R GPS Antenna, SMA(m), 25 dB gain
67135 Backpack for Accessories
760-259-R Transit Case (holds MW82119A/B PIM Analyzer only)
760-265-R Transit Case (holds MW82119A/B PIM Analyzer plus accessories)
Power Sensors PSN50 High Accuracy RF Power Sensor, 50 MHz to 6 GHz, –30 dBm to +20 dBm
MA24105A Inline Bi-Directional High Power Sensor, 350 MHz to 4 GHz, +3 dBm to +51.76 dBm
MA24108A Microwave USB Power Sensor, 10 MHz to 8 GHz, –40 dBm to +20 dBm
MA24118A Microwave USB Power Sensor, 10 MHz to 18 GHz, –40 dBm to +20 dBm
MA24126A Microwave USB Power Sensor, 10 MHz to 26 GHz, –40 dBm to +20 dBm
MA24208A Microwave Universal USB Power Sensor, 10 MHz to 8 GHz, +20 dBm
MA24218A Microwave Universal USB Power Sensor, 10 MHz to 18 GHz, +20 dBm
Attenuators 3-1010-122 Attenuator (Bi-directional), 20 dB, 5 W, DC to 12.4 GHz, N(m) to N(f)
3-1010-123 Attenuator (Bi-directional), 30 dB, 50 W, DC to 8.5 GHz, N(m) to N(f)
3-1010-124 Attenuator (Bi-directional), 40 dB, 100 W, DC to 8.5 GHz, N(m) to N(f)
PIM Analyzer Accessory Kits 2000-1745-R PIM Master Backpack Accessory Kit (Includes common items below plus 67135 backpack)
2000-1746-R PIM Master Hard Case Accessory Kit (Includes common items below plus 760-260-R transit case)
2000-1626-R PIM Test Cable, 3.0 m, 7/16 DIN(m) to 7/16 DIN(m), 50 Ω
2000-1749-R Low PIM Termination, 700 MHz to 2600 MHz, 10 W, 7/16 DIN(m), 7/16 DIN(f), 50 Ω
1091-446-R PIM Standard, –80 dBm ±3 dB at 1730 MHz, with 2 x 20 W, 7/16 DIN(m) to 7/16 DIN(f), 50 Ω
1091-425-R Low PIM Adapter, 7/16 DIN(f) to N(f), DC to 3.0 GHz, 50 Ω (qty. 2)
1091-426-R Low PIM Adapter, 7/16 DIN(f) to N(m), DC to 3.0 GHz, 50 Ω (qty. 2)
1091-427-R Low PIM Adapter, 7/16 DIN(f) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
01-510 Adjustable Wrench
01-513-R 1-1/4 in Torque Wrench
971-9-R Cleaning Wipes
971-10-R Cleaning Swabs
11410-00726 Equipment Verification Process
Optional PIM Analyzer Accessories 16DD50-2.75-R Armored PIM Test Cable, 2.75 m, 7/16 DIN(m) to 7/16 DIN(m), 50 Ω
16DD50-4.0-R Armored PIM Test Cable, 4.0 m, 7/16 DIN(m) to 7/16 DIN(m), 50 Ω
2000-1626-R PIM Test Cable, 3.0 m, 7/16 DIN(m) to 7/16 DIN(m), 50 Ω
2000-1783-R PIM Test Cable, 3.0 m, 7/16 DIN(m) to 7/16 DIN(f), 50 Ω
2000-1845-R PIM Test Cable, 3.0 m, 7/16 DIN(m) to 4.3-10(m), 50 Ω
2000-1846-R PIM Test Cable, 3.0 m, 7/16 DIN(m) to 4.3-10(f), 50 Ω
2000-1724-R Low PIM Termination, 700 MHz to 2600 MHz, 40 W, 7/16 DIN(m), 7/16 DIN(f), 50 Ω
2000-1749-R Low PIM Termination, 700 MHz to 2600 MHz, 10 W, 7/16 DIN(m), 7/16 DIN(f), 50 Ω
1091-446-R PIM Standard, –80 dBm ±3 dB at 1730 MHz, with 2 x 20 W, 7/16 DIN(m) to 7/16 DIN(f), 50 Ω
1091-421-R Low PIM Adapter, 7/16 DIN(m) to 7/16 DIN(m), DC to 3.0 GHz, 50 Ω
1091-422-R Low PIM Adapter, 7/16 DIN(m) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
1091-423-R Low PIM Adapter, 7/16 DIN(m) to N(m), DC to 3.0 GHz, 50 Ω
1091-424-R Low PIM Adapter, 7/16 DIN(m) to N(f), DC to 3.0 GHz, 50 Ω
1091-425-R Low PIM Adapter, 7/16 DIN(f) to N(f), DC to 3.0 GHz, 50 Ω
1091-426-R Low PIM Adapter, 7/16 DIN(f) to N(m), DC to 3.0 GHz, 50 Ω
1091-427-R Low PIM Adapter, 7/16 DIN(f) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
1091-431-R Low PIM Adapter, 45°, 7/16 DIN(m) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
1091-432-R Low PIM Adapter, 45°, 7/16 DIN(f) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
1091-433-R Low PIM Adapter, 4.1/9.5(f) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
1091-434-R Low PIM Adapter, 4.1/9.5(m) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
1091-435-R Low PIM Adapter, 4.1/9.5(f) to N(m), DC to 3.0 GHz, 50 Ω
1091-436-R Low PIM Adapter, 4.1/9.5(m) to N(m), DC to 3.0 GHz, 50 Ω
1091-440-R Low PIM Adapter, 4.3/10(f) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
1091-441-R Low PIM Adapter, 4.3/10(m) to 7/16 DIN(f), DC to 3.0 GHz, 50 Ω
1091-442-R Low PIM Adapter, 4.3/10(f) to N(m), DC to 3.0 GHz, 50 Ω
1091-443-R Low PIM Adapter, 4.3/10(m) to N(m), DC to 3.0 GHz, 50 Ω
01-510 Adjustable Wrench
01-513-R 1-1/4 in Torque Wrench
971-9-R Cleaning Wipes
971-10-R Cleaning Swabs
Calibration Components, 50 Ω OSLN50-1 Precision Open/Short/Load, N(m), 42 dB, 6.0 GHz, 50 Ω
OSLNF50-1 Precision Open/Short/Load, N(f), 42 dB, 6.0 GHz, 50 Ω
2000-1618-R Precision Open/Short/Load, 7/16 DIN(m), DC to 6.0 GHz 50 Ω
2000-1619-R Precision Open/Short/Load, 7/16 DIN(f), DC to 6.0 GHz 50 Ω
22N50 Open/Short, N(m), DC to 18 GHz, 50 Ω
22NF50 Open/Short, N(f), DC to 18 GHz, 50 Ω
SM/PL-1 Precision Load, N(m), 42 dB, 6.0 GHz
SM/PLNF-1 Precision Load, N(f), 42 dB, 6.0 GHz
Phase-Stable Test Port Cables, Armored w/Reinforced Grip 15RNFN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15RDFN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω
15RDN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω
15RNFN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15RDFN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω
15RDN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω
Interchangeable Adaptor Phase Stable Test Port Cables, Armored w/Reinforced Grip 15RCN50-1.5-R 1.5 m, DC to 6 GHz, N(m), N(f), 7/16 DIN(m), 7/16 DIN(f), 50 Ω
15RCN50-3.0-R 3.0 m, DC to 6 GHz, N(m), N(f), 7/16 DIN(m), 7/16 DIN(f), 50 Ω
Phase-Stable Test Port Cables, Armored 15NNF50-1.5C 1.5 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15NN50-1.5C 1.5 m, DC to 6 GHz, N(m) to N(m), 50 Ω
15NDF50-1.5C 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω
15ND50-1.5C 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω
15NNF50-3.0C 3.0 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15NN50-3.0C 3.0 m, DC to 6 GHz, N(m) to N(m), 50 Ω
15NNF50-5.0C 5.0 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15NN50-5.0C 5.0 m, DC to 6 GHz, N(m) to N(m), 50 Ω
Precision Adapters 34NN50A N(m) to N(m), DC to 18 GHz, 50 Ω
34NFNF50 N(f) to N(f), DC to 18 GHz, 50 Ω
1091-26-R SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R SMA(f) to N(f), DC to 18 GHz, 50 Ω
1091-172-R BNC(f) to N(m), DC to 1.3 GHz, 50 Ω
510-90-R 7/16 DIN(f) to N(m), DC to 7.5 GHz, 50 Ω
510-91-R 7/16 DIN(f) to N(f), DC to 7.5 GHz, 50 Ω
510-92-R 7/16 DIN(m) to N(m), DC to 7.5 GHz, 50 Ω
510-93-R 7/16 DIN(m) to N(f), DC to 7.5 GHz, 50 Ω
510-96-R 7/16 DIN(m) to 7/16 DIN (m), DC to 7.5 GHz, 50 Ω
510-97-R 7/16 DIN(f) to 7/16 DIN (f), DC to 7.5 GHz, 50 Ω
510-102-R N(m) to N(m), DC to 11 GHz, 50 Ω, 90 degrees right angle
