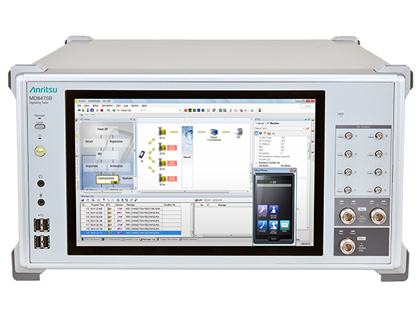

Signalling Tester (Base Station Simulator) MD8475B
- • All-in-one support for LTE-Advanced 3CA/4CA/5CA using up to eight TX and four RX RF ports (6 GHz max.)
- • Efficient performance test environment using built-in traffic generator for 2 Gbps IP data transfers*
- • Integrated RF front end for easy connection setup
- • Supports multimode terminals
- LTE (2x2 MIMO, 4x4 MIMO), LTE-Advanced (2CA, 3CA, 4CA, 5CA), W-CDMA/HSPA/HSPA Evolution/DC-HSDPA, GSM/GPRS/EGPRS, TD-SCDMA/TD-HSPA
- • SmartStudio GUI supports easy setup of test environments and functional tests
- • Built-in CSCF server function supports GUI-based IMS service tests, such as VoLTE
- - Simple test mode using built-in CSCF server
- - Script mode supporting complex test environments by creating SIP sequences for irregular tests, etc.
- • LTE data throughput evaluation environment (DL: 2 Gbps/UL: 150 Mbps)
- • All-in-one DC-HSDPA 43.2 Mbps support
- • All-in-one support for multi-cell test environment, including Inter-RAT Cell Reselection, Redirection, Cell Change, CS Fallback
- • Supports offload tests from LTE/W-CDMA to WLAN
제품 사양
| SmartStudio System Configuration | |||||||
|---|---|---|---|---|---|---|---|
| System | LTE | W-CDMA | TD-SCDMA | GSM | |||
| LTE-A | LTE | ||||||
| Unit | Signalling Tester MD8475B | ||||||
| Unit Option | Extended RF MD8475B-002 | ||||||
| Fading IO Option MD8475B-004 | |||||||
| Platform Software | Multi-cell Software MX847502B | ||||||
| — | Multimedia Interface Software MX847508B | ||||||
| — | AMR-WB MX847508B-001 | — | — | ||||
| Basic Configuration | Hardware | Multi Signalling Unit MD8475B-070 | GSM Signalling Unit MD8475B-020 | ||||
| Enhanced Multi-signalling Unit MD8475B-071 | — | — | — | ||||
| Software | LTE Simulation Software MX847550B | W-CDMA Simulation Software MX847510B | TD-SCDMA Simulation Software MX847540B | GSM/GPRS Simulation Software MX847520B | |||
| Options | LTE 2×2 MIMO Option MX847550B-020 | HSPA Evolution/ DC-HSDPA Option MX847510B-011 |
— | — | |||
| LTE 4×4 MIMO Option MX847550B-021 | |||||||
| LAA Option MX847550B-030 | — | ||||||
| LTE Carrier Aggregation Option MX847550B-040 | |||||||
| LTE Carrier Aggregation DL3CCs Option MX847550B-041 | |||||||
| LTE Carrier Aggregation DL4CCs Option MX847550B-042 | |||||||
| LTE Carrier Aggregation DL5CCs Option MX847550B-043 | |||||||
| LTE RoHC Option MX847550B-060 | |||||||
| Support Service | MX847570B 1 Year Support Service MX847570B-SS110 | ||||||
| User Interface | SmartStudio MX847570B | ||||||
| SmartStudio Licence | System Option | LTE Option MX847570B-050 | W-CDMA Option MX847570B-010 | TD-SCDMA Option MX847570B-040 |
GSM Option MX847570B-020 |
||
| LTE Carrier Aggregation Option MX847570B-051 | — | HSPA Evolution/ DC-HSDPA Option MX847570B-011 |
|||||
| LTE Licensed Assisted Access (LAA) Option MX847570B-052 | |||||||
| IMS | Extended CSCF Option MX847570B-080 | ||||||
| IMS Supplementary Service Option MX847570B-081 | |||||||
| RCS Basic Option MX847570B-083 | |||||||
| GBA Authentication Option MX847570B-084 | |||||||
| IMS Early Media Option MX847570B-085 | |||||||
| RTP Frame Control Option MX847570B-086 | |||||||
| WLAN | WLAN Offload Basic Option MX847570B-070 | ||||||
| ePDG Option MX847570B-071 | |||||||
| ANDSF Option MX847570B-072 | |||||||
| Extended ePDG Option MX847570B-073 | |||||||
| Scripting Option | IMS Script Basic Option MX847570B-060 | ||||||
| XCAP Script Option MX847570B-061 | |||||||
| Scripting Option | MX847570B-060 1 Year Technical Support Service MX847570B-TS160 | ||||||
| MX847570B-061 1 Year Technical Support Service MX847570B-TS161 | |||||||
| Remote Interface | Quick TRX Diagnosis MX847506B | ||||||
| SmartStudio Manager MX847503A | |||||||
| Smartphone Control Platform MX847504A | |||||||
| eCall Option | eCall Tester (USB License) MX703330E-PL010 |
eCall Tester (USB License) MX703330E-PL010 |
— | eCall Tester (USB License) MX703330E-PL010 |
|||
| eCall Tester (Software License) MX703330E-PL020 |
eCall Tester (Software License) MX703330E-PL020 |
— | eCall Tester (Software License) MX703330E-PL020 |
||||
| — | MSD ERA GLONASS Option MX703330E-031 |
— | MSD ERA GLONASS Option MX703330E-031 |
||||
| — | EGTS Server ERA GLONASS Option MX703330E-032 |
— | EGTS Server ERA GLONASS Option MX703330E-032 |
||||
| NG112 LTE eCall Option MX703330E-041 |
— | — | — | ||||
| NG112 LTE eCall Semi Normal Test Option MX703330E-042 |
— | — | — | ||||
| South Korean eCall Option MX703330E-047 |
— | — | — | ||||
| Multi-Cell Option MX703330E-061 |
Multi-Cell Option MX703330E-061 |
— | Multi-Cell Option MX703330E-061 |
||||
| MX703330E 1-Year Support Service MX703330E-SS110 |
MX703330E 1-Year Support Service MX703330E-SS110 |
— | MX703330E 1-Year Support Service MX703330E-SS110 |
||||
옵션 & 액세서리
| Standard accessories | |
|---|---|
| MX847500B | Platform Software |
| MX847501B | Control Software |
| J1211 | POWER CORD.3M |
| P0031A | USB Memory |
| J1440A | LAN Cable (3 m) |
| Z0541A | USB Mouse |
| Z0975A | Keyboard (USB) |
| A0131A | Handset |
| Hardware Options | |
| MD8475B-002 | Extended RF |
| MD8475B-004 | Fading IO Option |
| MD8475B-005 | IP Extension Option |
| Software Options | |
| MX847502B | Multi-cell Software |
| MX847506B | Quick TRX Diagnosis |
| MX847508B | Multimedia Interface Software |
| MX847508B-001 | AMR-WB |
| User Interfacee Options | |
| MX847570B | SmartStudio |
| MX847570B-010 | W-CDMA Option |
| MX847570B-011 | HSPA Evolution/DC-HSDPA Option |
| MX847570B-020 | GSM Option |
| MX847570B-050 | LTE Option |
| MX847570B-051 | LTE Carrier Aggregation Option |
| MX847570B-052 | LTE Licensed Assisted Access (LAA) Option |
| MX847570B-060 | IMS Script Basic Option |
| MX847570B-061 | XCAP Script Option |
| MX847570B-062 | IMS Log Import Option |
| MX847570B-070 | WLAN Offload Basic Option |
| MX847570B-071 | ePDG Option |
| MX847570B-072 | ANDSF Option |
| MX847570B-073 | Extended ePDG Option |
| MX847570B-080 | Extended CSCF Option |
| MX847570B-081 | IMS Supplementary Service Option |
| MX847570B-083 | RCS Basic Option |
| MX847570B-084 | GBA Authentication Option |
| MX847570B-085 | IMS Early Media Option |
| MX847570B-086 | RTP Frame Control Option |
| LTE System Options | |
| MD8475B-070 | Multi-signalling Unit |
| MD8475B-071 | Enhanced Multi-signalling Unit |
| MX847550B | LTE Simulation Software |
| MX847550B-020 | LTE 2×2 MIMO Option |
| MX847550B-021 | LTE 4×4 MIMO Option |
| MX847550B-030 | LTE Licensed Assisted Access (LAA) Option |
| MX847550B-040 | LTE Carrier Aggregation Option |
| MX847550B-041 | LTE Carrier Aggregation DL3CCs Option |
| MX847550B-042 | LTE Carrier Aggregation DL4CCs Option |
| MX847550B-043 | LTE Carrier Aggregation DL5CCs Option |
| MX847550B-060 | LTE RoHC Option |
| MX847550B-070 | LTE 20 Layers Extension Option |
| W-CDMA System Options | |
| MD8475B-070 | Multi-signalling Unit |
| MX847510B | W-CDMA Simulation Software |
| MX847510B-011 | HSPA Evolution/DC-HSDPA Option |
| GSM System Options | |
| MD8475B-020 | GSM Signalling Unit |
| MX847520B | GSM/GPRS Simulation Software |
| TD-SCDMA System Options | |
| MD8475B-070 | Multi-signalling Unit |
| MX847540B | TD-SCDMA Simulation Software |
| Automation Tools Options | |
| MX847503A | SmartStudio Manager |
| MX847503A-601 | SSM Test PKG European eCall |
| MX847503A-701 | SSM Test PKG GOST 33467 |
| MX847503A-923 | eCall Tester Control Library |
| MX847503A-TL660 | SSM Test PKG Telematics Connectivity |
| MX847503A-TL661 | SSM Test PKG Telematics Throughput |
| MX847503A-TL662 | SSM Test PKG Telematics Mobility Basic |
| MX847503A-TS120 | MX847503A-TL660 1 Year Technical Support Service |
| MX847504A | Smartphone Control Platform |
| Z1813A | USB Dongle (Automation) |
| Scenario Tools Options | |
| MX847580B | SIDE Execution Software |
| MX847580B-018 | SIP Execution Option |
| Automotive Applications Options | |
| MX703330E-PL010 | eCall Tester (USB License) |
| MX703330E-PL020 | eCall Tester (Software License) |
| MX703330E-UP020 | eCall Tester (Switching from USB license to software license) |
| MX703330E-031 | MSD ERA GLONASS Option |
| MX703330E-032 | EGTS Server ERA GLONASS Option |
| MX703330E-041 | NG112 LTE eCall Option |
| MX703330E-042 | NG112 LTE eCall Semi Normal Test Option |
| MX703330E-047 | South Korean eCall Optio |
| MX703330E-061 | Multi-Cell Option |
| Ciphering Options | |
| MX847510B-050 | W-CDMA Ciphering Option |
| MX847520B-050 | GSM/GPRS Ciphering Option |
| MX847540B-050 | TD-SCDMA Ciphering Option |
| MX847550B-050 | LTE Ciphering Option |
| Software Support Services | |
| MX847570B-SS110 | MX847570B 1 Year Support Service |
| MX703330E-SS110 | MX703330E 1 Year Support Service |
| Upgrade Kits* | |
| MD8475B-UG□01 | MD8475A to MD8475B Upgrade |
| MD8475B-UG□02 | MD8475A to MD8475B Upgrade (with Ciphering) |
| MD8475B-UG□03 | MD8475A to MD8475B Upgrade (with SIDE) |
| MD8475B-UG□04 | MD8475A to MD8475B Upgrade (with Ciphering/SIDE) |
| MD8475B-UG□05 | Windows 7 to Windows 10 Upgrade |
| MD8475B-UG□70 | MSU Upgrade |
| MD8475B-UG□71 | eMSU Upgrade (MD8475A to MD8475B) |
| MD8475B-UG□79 | eMSU Upgrade (MD8475B-070 to MD8475B-071) |
| *: MD8475B-UG □ ## □: Select from the following according to the option type. 1: Retrofit option (Must be returned to factory in Japan) 2: Retrofit option (Must be returned to service center outside of Japan) |
|
| Application parts | |
| B0703A | Rack Mount Kit |
| B0726A | Carrying Case |
| J0004 | Coaxial Adaptor (N (male)-SMA (female)) |
| J0127A | Coaxial Cord, 1.0 m (BNC-P · RG58A/U · BNC-P) |
| J0127B | Coaxial Cord, 2.0 m (BNC-P · RG58A/U · BNC-P) |
| J0322B | Coaxial Cord, 1.0 m |
| J0322D | Coaxial Cord, 2.0 m |
| J0658 | Adapter (SMA male-female L-type) |
| J0576B | Coaxial Cord, 1.0 m (N-P · 5D-2W · N-P) |
| J0576D | Coaxial Cord, 2.0 m (N-P · 5D-2W · N-P) |
| J1263 | W-CDMA Interface Cable (UE connection cable) |
| J1287 | HDD-SUB15P Cable (milli-inch, for connecting MN8110B) |
| J1333A | HDD-SUB15P Crossover Cable (inch) |
| J1398A | N-SMA ADAPTOR |
| J1416A | LVDS Cable |
| J1440A | LAN Cable |
| J1489A | PP2S OUTPUT CABLE |
| J1524A | Dsub15-BNC Conversion Cable |
| J1651A | MD8475A Sync In Cable (for 3CC Test) |
| J1674A | SMA/P-SMA/P Soft Rigid Cable |
| J1674E | SMA/P-SMA/P Soft Rigid Cable (5 pcs) |
| J1674K | SMA/P-SMA/P Soft Rigid Cable (10 pcs) |
| MN8150A | RF Combiner Unit |
| P0135A6 | Anritsu Test UICC GA (nano UICC Size) |
| P0135A7 | Anritsu Test UICC GA (Micro UICC Size) |
| P0250A6 | Anritsu Test UICC GT (nano UICC Size) |
| P0250A7 | Anritsu Test UICC GT (Micro UICC Size) |
| P0260A6 | Anritsu Test UICC GM (nano UICC Size) |
| P0260A7 | Anritsu Test UICC GM (Micro UICC Size) |
| Z0749 | MN8110B + Inch Screw Cable (for call processing I/O) |
| Z1858A | Divider (2 way) |
| Z1859A | Divider (3 way) |
| Z1908E | Standard Desktop for SSM |
| Z1919B | Standard Desktop for WLAN |
