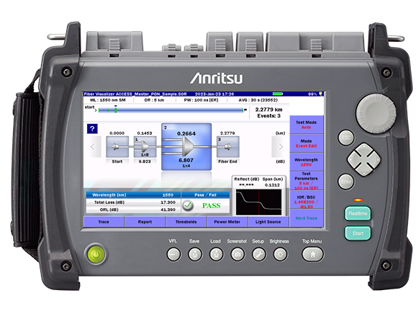

OTDR - ACCESS Master MT9085
- • 직사광선에서도 잘 보이는 대형8인치 LCD
- • LCD 터치 스크린, 직관적인 회전 노브 및 하드 키 조작을 통한 작업 효율 향상
- • 기존 Access Master 시리즈의 기능과 운용방법 채택
- - 광섬유 선로를 간단히 분석할 수 있는 Fiber Visualizer
- - 고속, 높은S/N 실시간 스위프 모드로 광섬유 밴딩 위치를 신속히 특정
- - 고정밀도 이벤트 검출, 손실 측정（최대46 dB 다이내믹 레인지, 0.8 m이벤트 데드존）
- - 각 스플리터의 이벤트점 및 분당 최대 1×128분기정보를 식별
- - 내장 옵션(광원/광 파워미터/가시광선)으로 광 손실 시험/광 파워 측정
- - 외장 옵션 파이버 스코프로 광섬유 단면 검사
제품 사양
| Model | Class Applications |
OTDR | Optical Power/Loss Measurement (LS, OPM) Visual Fiber Break Inspection (VFL) Optical Fiber End-Face Inspection (VIP) |
|||||
|---|---|---|---|---|---|---|---|---|
| Wavelength | Dynamic Range Dead Zone（Fresnel） Dead Zone（Back Scatter） |
Features | LS*1 | OPM*2 | VFL*3 | VIP*4 | ||
| MT9085A-053 | Standard General purpose, Premise, Access, Metro |
1310/1550 nm SM | 39/37.5 dB ≤1 m ≤5/5.5 m |
Standard model for I&M | ✓ | ✓ | ✓ | ✓ |
| MT9085A-057 | 1310/1550/1625 nm SM | 37/35.5/32.5 dB ≤1 m ≤6/6.5/7.5 m |
Supports maintenance inspection wavelengths for microbend analysis | ✓ | ✓ | ✓ | ✓ | |
| MT9085A-063 | 1310/1550 nm SM | 39/37.5 dB ≤1 m ≤5/5.5 m |
Supports SMF and MMF I&M | ✓ | ✓ | ✓ | ✓ | |
| 850/1300 nm MM | 29/28 dB ≤1 m ≤4/5 m |
✓ | ✓ | ✓ | ✓ | |||
| MT9085B-053 | Performance Metro, Long haul, PON-based FTTx |
1310/1550 nm SM | 42/41 dB ≤1 m ≤5/5.5 m |
Standard model for I&M | ✓ | ✓ | ✓ | ✓ |
| MT9085B-055 | 1310/1550 nm SM 1650 nm SM |
41/41dB, 35 dB ≤1 m ≤5/5.5m, 6.5 m |
With built-in filter for maintenance of in-service live circuits | ✓ | ✓ | ✓ | ✓ | |
| MT9085B-056 | 1310/1490/1550 nm SM | 42/41/41 dB ≤1 m ≤6/6.5/6.5 m |
Supports I&M of FTTX/PON installations | ✓ | ✓ | ✓ | ✓ | |
| MT9085B-057 | 1310/1550/1625 nm SM | 40/39/38 dB ≤1 m ≤6/6.5/7.5 m |
Supports maintenance inspection wavelengths for microbend analysis | ✓ | ✓ | ✓ | ✓ | |
| MT9085B-058 | 1310/1490/1550 /1625 nm SM | 42/41/41/40 dB ≤1 m ≤7/7.5/7.5/8.5 m |
Supports I&M of FTTX/PON installations as well as partial evaluation of CWD Waveband | ✓ | ✓ | ✓ | ✓ | |
| MT9085B-063 | 1310/1550 nm SM | 42/41 dB ≤1 m ≤5/5.5 m |
All-in-one support for SMF/MMF I&M | ✓ | ✓ | ✓ | ✓ | |
| 850/1300 nm MM | 29/28 dB ≤1 m ≤4/5 m |
✓ | ✓ | ✓ | ✓ | |||
| MT9085C-053 | High Performance Long haul, Ultra-long haul |
1310/1550 nm SM | 46/46 dB ≤1 m ≤3.8/4.3 m |
Standard model for I&M | ✓ | ✓ | ✓ | ✓ |
| MT9085C-057 | 1310/1550/1625 nm SM | 46/46/44 dB ≤1 m ≤3.8/4.3/4.8 m |
Supports maintenance inspection wavelengths for microbend analysis | ✓ | ✓ | ✓ | ✓ | |
| *1: Built-in as standard *2: Built-in as standard (same port as OTDR); optical loss measurement requires power meter option (separate port from OTDR) *3: Built-in option *4: External option |
||||||||
옵션 & 액세서리
| Standard Accessories | |
|---|---|
| Z1991A*1 | MT9085 Operation Manual (CD) |
| W3974AE | MT9085 Series Quick Guide |
| Z1625A*2 | AC adapter Line cord |
| Z0921A | Battery Pack |
| Module Option (OTDR)*3 High Performance Model |
|
| MT9085C-053 | SMF 1.31/1.55 μm OTDR |
| MT9085C-057 | SMF 1.31/1.55/1.625 μm OTDR |
| Module Option Enhanced Model |
|
| MT9085B-053 | SMF 1.31/1.55 μm OTDR |
| MT9085B-055 | SMF 1.31/1.55/1.65 μm OTDR |
| MT9085B-056 | SMF 1.31/1.49/1.55 μm OTDR |
| MT9085B-057 | SMF 1.31/1.55/1.625 μm OTDR |
| MT9085B-058 | SMF 1.31/1.49/1.55/1.625 μm OTDR |
| MT9085B-063 | MMF 0.85/1.3 μm & SMF 1.31/1.55 μm OTDR |
| Module Option Standard Model |
|
| MT9085A-053 | SMF 1.31/1.55 μm OTDR |
| MT9085A-057 | SMF 1.31/1.55/1.625 μm OTDR |
| MT9085A-063 | MMF 0.85/1.3 μm & SMF 1.31/1.55 μm OTDR |
| Option (Connector) | |
| MT9085x-025*3 | FC-APC Connector Key width 2.0 mm |
| MT9085x-026*3 | SC-APC Connector |
| MT9085x-037*4 | FC Connector |
| MT9085x-038*4 | ST Connector |
| MT9085x-040*4 | SC Connector |
| Option (Visual light Source) | |
| MT9085x-002 | Visual Fault Locator |
| Option (Power Meter)*6 | |
| MT9085x-004 | SMF Optical Power Meter |
| MT9085x-005 | SMF High Power Optical Power Meter |
| MT9085x-007 | SMF/MMF Optical Power Meter |
| Option (Others) | |
| MT9085x-010*7 | Protector |
| *1: Stores operation manual and quick guide *2: Power cord (J0979) supplied at separate purchase *3: Can only connect APC-type optical fiber *4: Cannot only connect APC-type optical fiber *6: Same optical connector or connector adapter supplied as type specified for optical pulse tester *7: Front Protector B0584A cover supplied with belt as standard |
|
| Option (Application Parts) | |
| W3971AE | MT9085 Series Operation Manual |
| W3972AE | MT9085 Series SCPI Remote Control Operation Manual |
| B0745A | Softcase |
| B0582A | Soft carrying case |
| B0583A | Hard transit case |
| B0549 | Hard carrying case |
| B0584A | Front cover |
| Z0921A | Battery Pack |
| Z1632A | Battery Charger |
| J1295 | Car plug cord |
| J0617B | Replaceable optical connector (FC-PC) |
| J0618D | Replaceable optical connector (ST) |
| J0618F | Replaceable optical connector (HMS-10/A) |
| J0619B | Replaceable optical connector (SC-PC) |
| J0739A | Replaceable optical connector (FC-APC) |
| J1697A | Replaceable optical connector (SC-APC) |
| J0057 | Optical adapter FC type |
| J1335A | MU/LC connector adapter |
| MA9005B-37 | For FC Connertor |
| MA9005B-38 | For ST Connertor |
| MA9005B-40 | For SC Connertor |
| LP-FC | FC-PC Power meter adapter |
| LP-ST | ST-PC Power meter adapter |
| LP-SC | SC-PC Power meter adapter |
| J1530A | SC PLUG IN CONVERTER (UPC(P)-APC(J)) |
| J1531A | SC PLUG IN CONVERTER (APC(P)-UPC(J)) |
| J1532A | FC PLUG IN CONVERTER (UPC(P)-APC(J)) |
| J1533A | FC PLUG IN CONVERTER (APC(P)-UPC(J)) |
| J1534A | LC-SC Plug-in Converter (for SM, SC(P)-LC(J)) |
| J1535A | LC-SC Plug-in Converter (for MM, SC(P)-LC(J)) |
| Z0914A | Ferrule cleaner |
| Z0915A | Replacement reel for ferrule cleaner |
| Z0284 | Adapter Cleaner |
| G0306C | Video Inspection Probe |
| J1480A | USB-Ethernet converter |
