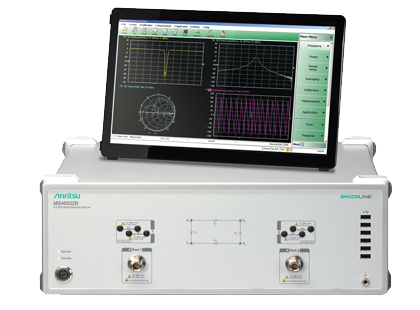

ShockLine™ 2-포트 Performance VNA MS46522B
안리쓰 네트워크 분석기 MS46522B

  • • 출력 파워가 높아 높은 감쇠 장치의 측정이 허용됩니다.
  • • 업계를 선도하는 안리쓰의 다이내믹레인지는 아주 낮은반사 아티팩트(Artifacts)의
    　 측정을 가능하게 합니다.
  • • 정정 방향성이 탁월해 측정 불확실성이 최소화됩니다.
  • • SmartCal 자동 보정 장치가 보정 및 설정 시간을 줄여줍니다.
  • • 시간 게이팅 포함 시간 영역 옵션을 사용하여 더 쉽고 빠르게 결함을 찾아낼 수
    　 있습니다.
  • • GPIB보다 더 빠른 원격 제어용 최신 LAN 인터페이스가 제공됩니다.
  • • Shockline 제품군 내의 공통 GUI 및 SCPI 인터페이스
  • • 액세스 루프와 바이어스 티 옵션은 최대 사용자 정의 테스트 설정을 할 수 있음
  • • E-band와 V-band의 주요부분을 커버하는 확장된 주파수 레인지

제품 사양
Specification
Frequency Range MS46522B-010 50 kHz to 8.5 GHz
MS46522B-020 50 kHz to 20 GHz
MS46522B-040 50 kHz to 43.5 GHz
MS46522B-082 55 GHz to 92 GHz
System Dynamic Range 300 kHz to 1 MHz 101 dB
> 1 MHz to 50 MHz 108 dB
> 50 MHz to 2 GHz 144 dB
> 2 GHz to 4 GHz 142 dB
> 4 GHz to 6 GHz 137 dB
> 6 GHz to 8 GHz 130 dB
> 8 GHz to 8.5 GHz 127 dB
> 8.5 GHz to 25 GHz 122 dB
> 25 GHz to 40 GHz 127 dB
> 40 GHz to 43.5 GHz 120 dB
60 GHz to 67 GHz 115 dB
> 67 GHz to 87 GHz 120 dB
> 87 GHz to 90 GHz 115 dB
Output Power 300 kHz to 6 GHz –30 to +17 dBm
> 6 GHz to 8 GHz –30 to +13 dBm
> 8 GHz to 8.5 GHz –30 to +11 dBm
> 8.5 GHz to 40 GHz –30 to +10 dBm
> 40 GHz to 43.5 GHz –30 to +4 dBm
60 GHz to 69 GHz –55 to –5 dBm
> 69 GHz to 88 GHz –50 to 0 dBm
> 88 GHz to 90 GHz –60 to –10 dBm
Data Points 2 to 20,001 points
IF Bandwidth 10 Hz to 500 kHz
Channels and Traces 16 channels, each with up to 16 traces
Markers 12 markers + 1 reference marker
Test Ports 1 and 2 MS46522B-010 N(f)
MS46522B-020 K(m)
MS46522B-040 K(m)
MS46522B-082 WR12 Waveguide Flange
Damage Input Levels +27 dBm maximum, 50 VDC maximum
CPU, Memory, and Security Features CPU Intel Core™ i5
Storage Serial-ATA (SATA) Solid State Drive (> 30 GB SSD, removable) for OS, Programs, and Data
Dimensions 152 mm x 445 mm x 442 mm
Weight < 13 kg
Warranty Three (3) years from the date of shipment
옵션 & 악세서리
Option
MS46522B-001 Rack Mount, adds handles and removes feet for shelf-mounting into a 19 inch universal rack
MS46522B-002 Time Domain with Time Gating
MS46522B-022 Advanced Time Domain
MS46522B-051 Access Loops (Only available with Option 10)
MS46522B-061 Bias Tee (Only available with Option 10)
Standard Accessories
User Documentation The user documentation USB device includes Adobe Acrobat PDF files for the ShockLine Operation Manual, User Interface Reference Manual, Programming Manual, Calibration and Measurement Guide, and the Technical Data Sheet.
Power Power Cord
Optional Accessories
Precision Automatic Calibrator Module
MN25208A 2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with various connector options)
36585K-2M K Connector Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F K Connector Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF K Connector Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R Serial to USB Adapter (required for use with 36585 AutoCal module)
Mechanical Calibration Kits
3650 SMA/3.5 mm Calibration Kit
3650A SMA/3.5 mm Calibration Kit, Without Sliding Loads
3650A-1 SMA/3.5 mm Calibration Kit, With Sliding Loads
3652A K Connector Calibration Kit, Without Sliding Loads
3652A-1 K Connector Calibration Kit, With Sliding Loads
3653A N Connector Calibration Kit, Without Sliding Loads
OSLN50A-8 Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8 Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8 Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8 Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18 Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18 Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18 Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18 Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20 Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20 Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40 Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40 Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
RF Cables and Adapters
N120-6 RF Cables, Semi-Rigid, N(m) to N(m), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
NS120MF-6 RF Cables, Semi-Rigid, N(f) to N(f), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
1091-26-R SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NN50A Precision Adapter, N(m) to N(m), DC to 18 GHz, 50 Ω
34NFNF50 Precision Adapter, N(f) to N(f), DC to 18 GHz, 50 Ω
34NK50 Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50 Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50 Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50 Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B Precision Adapter, DC to 40 GHz, K(m) to K(m), 50 Ω
K222B Precision Adapter, DC to 40 GHz, K(f) to K(f), 50 Ω
K224B Precision Adapter, DC to 40 GHz, K(m) to K(f), 50 Ω
SC7260 WR12 to W1(m) Adapter, W1 (1 mm) to WR12 Waveguide
SC7442 WR12 to W1(f) Adapter, W1 (1 mm) to WR12 Waveguide
35WR12WF-EE Precision Waveguide to Coax Adapter Kit, 56 GHz to 94 GHz, WR-12 to 1.0 mm(f)
Test Port Cables, Flexible, Ruggedized, Phase Stable
14RKFKF50-0.6 0.6 m (24”), DC to 40 GHz, Ruggedized K(f) to K(f), 50 Ω
14RKFKF50-1.0 1.0 m (39”), DC to 40 GHz, Ruggedized K(f) to K(f), 50 Ω
14RKFK50-0.6 0.6 m (24”), DC to 40 GHz, Ruggedized K(f) to K(m), 50 Ω
14RKFK50-1.0 1.0 m (39”), DC to 40 GHz, Ruggedized K(f) to K(m), 50 Ω
14KFKF50-0.6 0.6 m (24”), DC to 40 GHz, K(f) to K(f), 50 Ω
14KFKF50-1.0 1.0 m (39”), DC to 40 GHz, K(f) to K(f), 50 Ω
14KFK50-0.6 0.6 m (24”), DC to 40 GHz, K(f) to K(m), 50 Ω
14KFK50-1.0 1.0 m (39”), DC to 40 GHz, K(f) to K(m), 50 Ω
15NNF50-1.0B 1.0 m (39”), DC to 18 GHz, Test Port Cable, Flexible, Phase Stable, N(f) to N(m), 50 Ω
15NNF50-1.5B 1.5 m (59”), DC to 18 GHz, Test Port Cable, Flexible, Phase Stable, N(f) to N(m), 50 Ω
15NN50-1.0B 1.0 m (39”), DC to 18 GHz, Test Port Cable, Flexible, Phase Stable, N(m) to N(m), 50 Ω
15LL50-1.0A 1.0 m (39”), DC to 20 GHz, Test Port Cable, Armored, Phase Stable, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A 1.0 m (39”), DC to 20 GHz, Test Port Cable, Armored, Phase Stable, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A 1.0 m (39”), DC to 20 GHz, Test Port Cable, Armored, Phase Stable, K(m) to K(m), 50 Ω
15KKF50-1.0A 1.0 m (39”), DC to 20 GHz, Test Port Cable, Armored, Phase Stable, K(m) to K(f), 50 Ω
Phase-Stable 18 GHz and 40 GHz Semi-Rigid Cables (Armored)
3670K50-1 0.3 m (12”), DC to 40 GHz, K(f) to K(m), 50 Ω
3670K50-2 0.6 m (24”), DC to 40 GHz, K(f) to K(m), 50 Ω
3670N50-1 0.3 m (12”), DC to 18 GHz, N(f) to N(m), 50 Ω
3670NN50-1 0.3 m (12”), DC to 18 GHz, N(m) to N(m), 50 Ω
3670N50-2 0.6 m (24”), DC to 18 GHz, N(f) to N(m), 50 Ω
3670NN50-2 0.6 m (24”), DC to 18 GHz, N(m) to N(m), 50 Ω
Tools
01-200 Calibrated Torque End Wrench, GPC-7 and Type N
01-201 Torque End Wrench, 5/16 in, 0.9 N·m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203 Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf.in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204 End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
